Battery Charging - Icom IC-F61M Instruction Manual

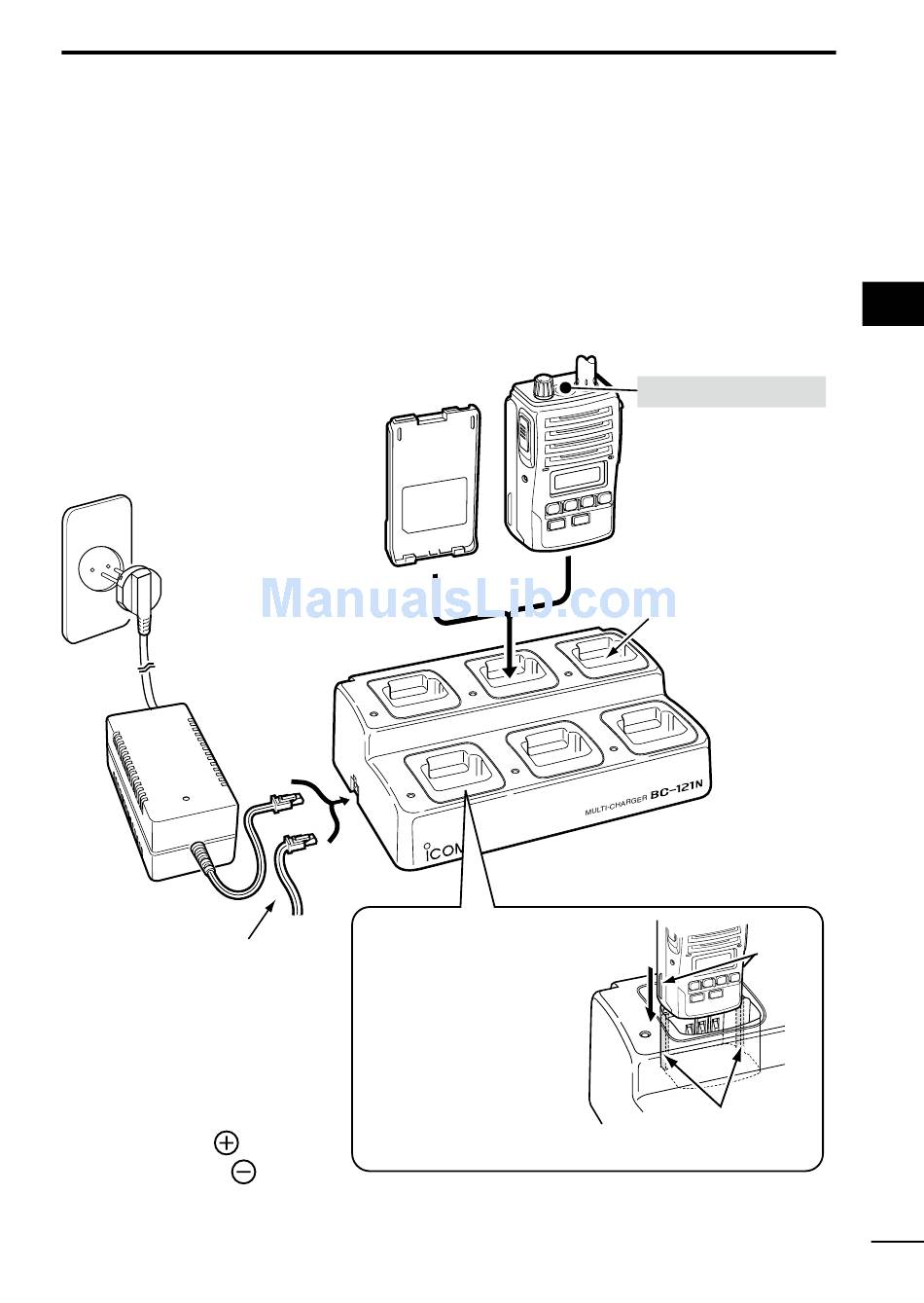

D Rapid charging with the BC-121N+AD-100
The optional BC-121N allows up to 6 battery packs to be charged
simultaneously. The following items are additionally required.
• Six AD-100 charger adapter
• An AC adapter (BC-157S) or a DC power cable (OPC-656)
*See the instruction
manual for details of
the charger LED indi-
cation, operation, etc.
AC adapter
(Purchase
separately.)
DC power cable
(OPC-656*)
(Connect with the
DC power supply;
13.8 V/at least 7 A)
*About the OPC-656
Red line:
Black line:
Transceiver
Battery pack
IMPORTANT!:
Ensure the guide
tabs on the
battery pack are
correctly aligned
with the guide
rails inside of the
charger adapter.

BATTERY CHARGING

Turn power OFF
AD-100 charger
adapters are in-
stalled in each slot.
Guide rails
4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Tabs
17
18
19
20
