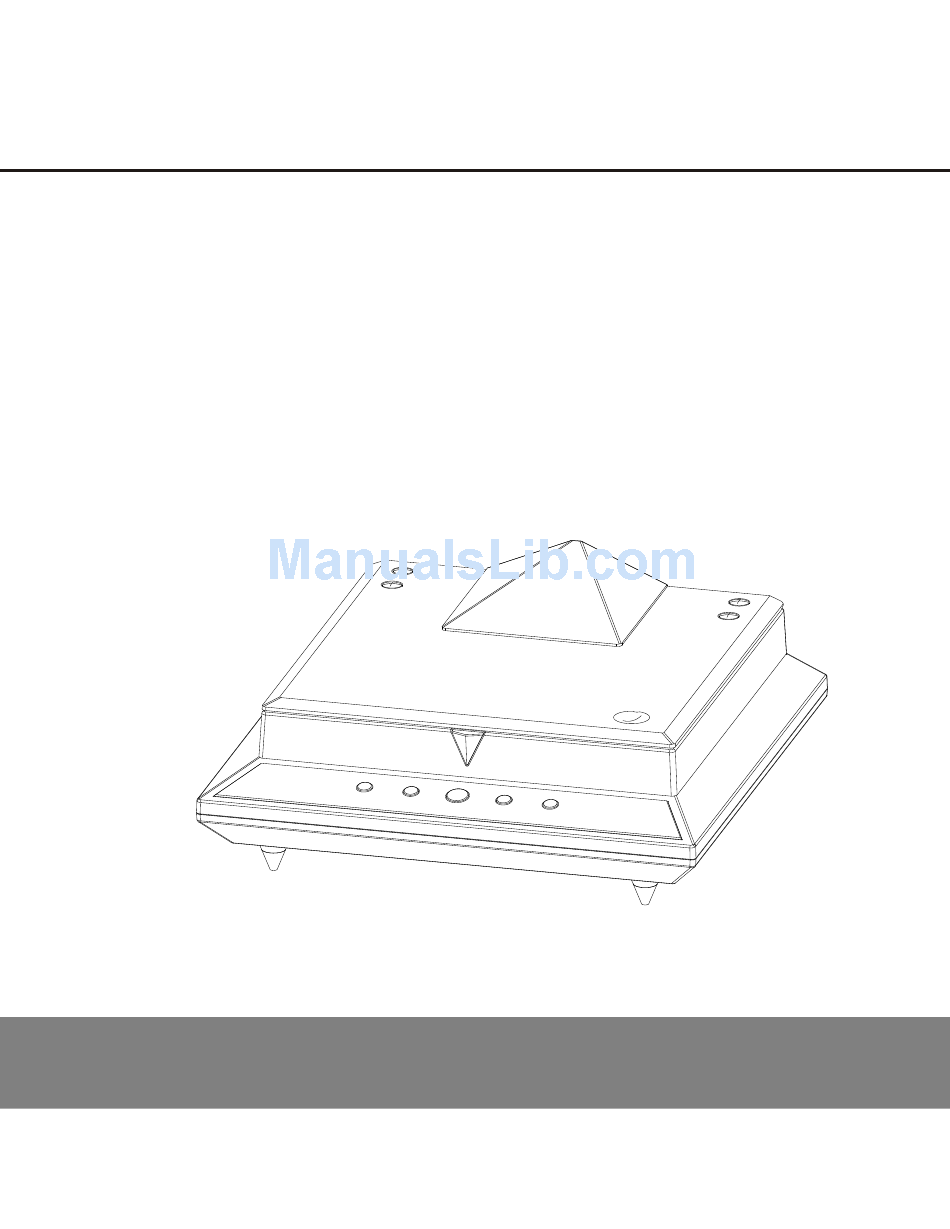

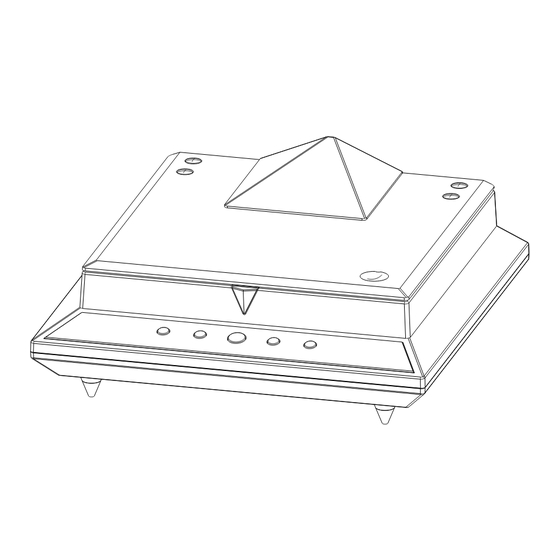

    DVD/VCD/CD/MP3 DVD PLAYER Model No. MP016-A User's Operation Manual...

  • Page 2: Safety Instructions

    Safety Instructions Dear Customer, May we take this opportunity to thank you for purchasing this DVD-Player. We strongly recommend that you carefully study the Operating Instructions before attempting to operate the unit and that you note the listed precautions. Power cord protection To avoid any malfunctions of the unit and to protect against electric shock, fire or personal injury, please observe the following: - Hold the plug firmly when connecting or disconnecting the AC power cord to this unit.

  • Page 3

    Safety Instructions Read Instructions - All the safety and operating instructions should be read before the appliance is operated. Retain Instructions -The safety and operating instructions should be retained for future reference. Heed Warnings - Adhere to all warnings on the appliance and in the operating instructions. Follow Instruction - All operating and use instructions should be followed.

  • Page 4

    Safety Instructions WARNING The DVD-Player is a class 2 laser product. However, this DVD- TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK Player uses a visible laser beam, which could cause hazardous OR ANNOYING INTERFERENCE, DO NOT EXPOSE radiation exposure, if directed. Be sure to operate the DVD- THIS APPLIANCE TO RAIN OR MOISTURE AND ONLY Player correctly as instructed.

  • Page 5: Table Of Contents

    Table of Contents Table of Contents Safety Instructions........................1 Table of Contents........................4 Control Keys..........................5 About This Manual........................8 Getting Started........................11 Basic Operations........................16 Playing a DVD - Video......................16 Playing a VIDEO CD......................21 Playing a CD...........................26 Playing Disks in Various Modes...................28 Using the Setup Menu......................36 Precautions..........................45 Physical size of the DVD disk....................47 DVD Player User's Manual...

  • Page 6: Control Keys

    Control Keys Control Keys Panel PUSH OPEN PLAY /PAUSE STOP POWER Figure 1 Control Panel 1. PLAY/PAUSE Skip Previous: Skips to the previous vudeo segment Play: Loading the disc; starts playing. while playback. When PBC of VCD is activated, use to get to thePrevious Pause: Able to still a particular frame.

  • Page 7

    Control Keys Remote Control If the remote control only operates when you get closer to the device, it means that the batteries have been used up. Please replace the two batteries simultaneously with two new batteries. Please note the +, - polarity. POWER TITLE MENU...

  • Page 8

    Control Keys Remote Control TITLE To enter the video title. Change PAL/NTSC mode. AUDIO "C" Interchanges the sound reproduced depending on the Used to cancel programmed titles or to clear the disc content. number input. SUBTITLE DISPLAY Indicates the current subtitle mode. Screen display for indicating the playing modes.

  • Page 9: About This Manual

    About This Manual DVD Player User's Manual About This Manual The instructions in this manual are for the DVD-Video player. In addition to DVD-Video , this player can also play Super VCD, Video CD, and audio CD, MP3. Conventions Instructions in this manual describe the controls on the player. The icons below are used in this manual.

  • Page 10

    About This Manual Region Code DVD disc today has region code (1 - 6) or had been previously manufactured region free. The region codes for DVD were designed to control the exportation of movies to other countries. Your DVD player has been programmed at the factory to accept the current region code setting of your location. The factory original setting can be determined by searching on shipping box or rear safety label located on the DVD player for the Region Code logo.

  • Page 11

    About This Manual Video CD/Audio CD: Track Sections of a picture or a music piece on a VIDEO CD or an audio CD. Each track is assigned a track number enabling the user to locate the desired track. Disk Track or CD structure Index...

  • Page 12: Getting Started

    Getting Started Incompatible disks This player is incompatible with CD-ROM, Photo CD, CD-Extra, CDi , and DVD-ROM (data) disks. However, some DVD players are able to play DVD-R (DVD recordable) disks, for example, a player that uses a 2X speed DVD-ROM drive or a specific loader manufacturer. Copy protection This product features a copy protection function developed Macrovision.

  • Page 13

    Getting Started Do not expose the remote sensor to direct sunlight or lighting apparatuses. Doing so may cause a malfunction. If the remote control is not being used for an extended period of time, it is recommended theat the batteries be removed to avoid possible damage from battery leakage and corrosion. Hooking Up the System Overview This section describes how to hook up the DVD player to a TV (with audio/video input jacks)

  • Page 14

    Getting Started To listen to sound through TV speakers CD/DVD Player AV CONNECTOR SCART STEREO S-VIDEO OPTICAL VIDEO 5.1 CH DC IN COAXIAL To video To audio To audio input To video input :Signal flow Figure 5 Connection to TV To listen to sound through speakers connected to an amplifier CD/DVD Player AV CONNECTOR...

  • Page 15

    Getting Started Note that S-video can be played simultaneously with a composite video and an analog audio. Assuming the receiver is so equipped, connect Dolby Digital (AC-3) with 5.1 channels, then connect the player to the amplifier, and the amplifier to the six speaker connections between AC-3 decoder and the speakers.

  • Page 16

    Getting Started Necessary Setup Before Using the Player Setting TV display Using the remote control, press the Setup button to go into the TV setup menu. Please the menu highlight on TV Display. Using the left/right arrow button, make the desired selection. Selections for TV display are: PS, normal;...

  • Page 17: Basic Operations, Playing A Dvd - Video

    Basic Operations Basic Operations Playing a DVD-Video Figure 9 DVD Player 1. Setting the TV Assuming the DVD, TV and speaker are setup, turn on the TV and select the video input. A logo should appear. When using an amplifier Turn on the amplifier and select a desired position so that viewers can enjoy the sound quality.

  • Page 18

    Playing a DVD-Video POWER TITLE MENU Title/Menu Setup Power On/Off AUDIO SUBTITLE ANGLE Title/Menu Setup Multi-X Features* ENTER/PLAY *Trick Modes Trick Modes* Directional Button for Enter/Play Menu Selections STOP Stop PAUSE Pause Number buttons SLOW Trick Modes* DISPLAY Display current & chapter ZOOM GOTO SHUFFLE...

  • Page 19

    Playing a DVD-Video During Playback To Implement Button to Press Pause Resume play after pause Play in slow motion (2x, 4x, 8x) Slow Power On/off Power Title & Chapter Search mode Goto Going Back to Title menu Title, Menu DVD feature Multi-X feature, Trick mode (See "playing disks in various mode) Go to the next chapter in Continuous Play mode...

  • Page 20

    Playing a DVD-Video Using the Title Menu A DVD-Video is divided into long sections of a picture or a music piece called titles. The Title menu is useful when the DVD title contains several titles; the desired title or chapter can also selected using the title menu.

  • Page 21

    Playing a DVD-Video 1. Press Title The title menu appears on the TV screen. The contents of the menu varies from disk to disk. 2. Press to make a selection. Depending on the disk, number buttons may also be used to select the title. 3.

  • Page 22: Playing A Video Cd, Stop

    Playing a VIDEO CD Playing a VIDEO CD 1. Set-up the TV. Turn on the TV and select the video input to view the pictures from this player. When using an amplifier, turn on the amplifier 2. Press POWER to turn on the player. The front panel should be activated (lit up) when the power is turned on.

  • Page 23: All A-b

    Playing a VIDEO CD POWER TITLE MENU GOTO search mode Power On/Off AUDIO SUBTITLE ANGLE ENTER/PLAY *Trick Modes Trick Modes* Directional Button for Enter/Play Menu Selections STOP Stop PAUSE Pause Number buttons SLOW Trick Modes* DISPLAY Display current & chapter Clear (selection during ZOOM GOTO...

  • Page 24

    Playing a VIDEO CD Locating a Desired Location To Implement Button to Press Go to the next chapter in Continuous Play mode Go back to the preceding track in Continuous Play mode Number buttons to select the chapter number, then ENTER . Select a track You will not hear the sound during this operation.

  • Page 25

    Playing a VIDEO CD Playing VIDEO CDs with PBC Functions (Playback Control) The PBC allows the user to play VIDEO CDs interactively, following the menu screen on the TV screen. , and < during PBC On this player, the user can use the number buttons, ENTER, playback.

  • Page 26

    Playing a VIDEO CD 1. Start playing a Video CD with PBC (default when playing VCD 2.0 or greater) functions, following Steps 1 to 4 in Playing a Video CD. 2. Select the desired item. On the player Press to select the item number. On the remote 3.

  • Page 27: Playing A Cd

    Playing a CD Playing a CD 1. Turn on the TV and the player . Load the Audio CD 2. When using as amplifier, turn on the amplifier and select the appropriate position so that you can listen to the sound from this player. The TV does not need to be on when the setup is using the amplifier and speakers and/or amplifier.

  • Page 28

    Playing a CD To Implement Button to Press Go to the next track in Continuous Play mode Go back to the preceding track in Continuous Play mode Number buttons to select the track number, then ENTER. Select the track Locate a point while When you find the point you want, press to return to the normal speed.

  • Page 29: Playing Disks In Various Modes

    Playing Disks in Various Modes Playing Disks in Various Modes Trick Mode Playing Repeatedly (Repeat Play) All the titles/chapters/tracks on a disk can be played, a single title/chapter/track or a specific portion repeatedly. To set the Repeat Play, use the remote control or keypad on the front panel. POWER TITLE MENU...

  • Page 30

    Playing Disks in Various Modes Repeating all the titles or all the tracks on a disk In the Shuffle or Program mode, the player plays the titles or tracks in the shuffled or programmed order. Note: The user cannot do Repeat Play during PBC playback of VIDEO CDs. The user may not be able to do Repeat Play depending on the DVD.

  • Page 31

    Playing Disks in Various Modes Repeating the current track or index Player Performs Press Repeat Button Indication Repeat the whole disk Once Repeat All Twice Repeat the current playing track Repeat 1 or current playing index The repeat function is off Three times Repeat Off Table 11 Repeating the Current or Index...

  • Page 32

    Playing Disks in Various Modes Playing in Random Order (Shuffle Play) The player can operate shuffle titles, chapters or tracks and play them in a random order. To activate the Shuffle mode: Press n to stop playing. Press the Shuffle button and then press the button.

  • Page 33

    Playing Disks in Various Modes To cancel the programmed order To cancel all tracks in the programmed order, press the program button twice. To cancel the last track programmed, press the clear button. The program remains even after the Program Play ends Press again will repeat the same program.

  • Page 34

    Playing Disks in Various Modes PROGRAM Selects the setting of Program Play. PROGRAM: arranges the order of the titles, chapters or tracks on the disk. PLAY: plays the titles, chapters or tracks in the programmed order. OFF: the order of the titles, chapters or tracks on the disk cannot be arranged. Changing the Zoom This button is used to view a scene close-up during playback of the disc.

  • Page 35

    Playing Disks in Various Modes Turning the Subtitles On and Off While playing a DVD on which subtitles are recorded, subtitles can be turned on and off whenever desired. To turn on the subtitles Press the Subtitle button and cycle through the available subtitles. To turn off the subtitles Press the Subtitle button until the subtitle indication is off on the OSD.

  • Page 36

    Playing Disks in Various Modes Resuming Playback (Resume Play) During play, the user can enter the DVD menu to make changes on spoken languages, subtitles, jump to a scene, and/or for limited range of aspect ratio, For some DVD titles, the user can resume to where play stopped previously, if this feature is provided in the DVD menu.

  • Page 37: Using The Setup Menu

    Using the Setup Menu Using the Setup Menu Using the menu allows the user to select the play mode setting the various outputs, etc. In each menu page, select the menu item on the left. Use to go to the option list or setting on the right.

  • Page 38

    Using the Setup Menu Setup Menu main page SETUP MENU -- MAIN PAGE GENERAL SETUP SPEAKER SETUP AUDIO SETUP KARAOKE SETUP PREFERENCES EXIT SETUP Figure 22 Main page General Page GENERAL PAGE TV DISPLAY NORMAL/PS TV TYPE NORMAL/LB MULTI VIDEO MODE WIDE NTSC ANGLE MARK...

  • Page 39

    Using the Setup Menu Basic Settings (TV SETUP) TV SETUP allows necessary setup when the player is installed and it is connected to external components. The setups for advanced playback of VIDEO CDs are also available in this main menu. Default settings are underlined.

  • Page 40

    Using the Setup Menu TV TYPE: For selecting and setup the TV's incoming signal to be of: MULTI: automatic - self-selecting television sets. NTSC : Television norm in USA and Japan (from 525 lines only 480 lines will be transferred with a picture changing frequency of 60 half pictures per second) : Television norm in Germany and other European countries (from 625 lines only 576 line will be transferred with a picture changing frequency of 50 half pictures Per Second)

  • Page 41

    Using the Setup Menu SPEAKER SETUP PAGE SPEAKER SETUP PAGE DOWNMIX LT/RT CENTER STEREO REAR *VSS SUBWOOFER CNTR DELAY 5 MS REAR RELAY 15 MS 3 MS TEST TONE 1 MS 9 MS 3 MS MAIN PAGE Figure 25 Speaker Setup page (*) The mark is for 5.1ch model only.

  • Page 42

    Using the Setup Menu REAR DELAY* 15 MS 9 MS 3 MS TEST TONE* AUDIO SETUP AUDIO S ETUP AUDIO OUT DYNAMIC SPDIF ON FULL LPCM OUT SPDIF OFF LPCM 48K LPCM 96K MAIN PAGE Figure 26 Audio Setup page AUDIO OUT SPDIF ON: Means raw AC3/DTS data via SPDIF.

  • Page 43

    Using the Setup Menu *KARAOKE PAGE (KARAOKE model Only) KARAOKE PAGE KARAOKE KARAOKE MAIN PAGE Figure 27 Karaoke page KARAOKE KARAOKE PREFERENCES PAGE PREFERENCES PAGE AUDIO ENGLISH SUBTITLE FRENCH ENGLISH DISC MENU SPANISH FRENCH CHINESE PARENTAL ENGLISH SPANISH JAPANESE PASSWORD CHINESE CHINESE FRENCH...

  • Page 44

    Using the Setup Menu AUDIO: Select a language for audio. ENGLISH FRENCH SPANISH CHINESE JAPANESE SUBTITLE: Select a language for subtitles. ENGLISH FRENCE SPANISH CHINESE JAPANESE OFF: No subtitle are displayed. DISC MENU: Select a language for disc menu. ENGLISH CHINESE FRENCH SPANISH...

  • Page 45

    Using the Setup Menu PASSWORD: CHANGE: selects the menu setup MAIN PAGE DEFAULTS: RESET SMART NAV NO MENU WITH MENU PASSWORD CHANGE PAGE PASSWORD CHANGE PAGE [ XXXX ] OLD PASSWORD NEW PASSWORD [ YYYY ] CONFIRM PASSWORD [ YYYY ] HELP MESSAGE Figure 29 Password change page OLD PASSWORD: enter the OLD password.

  • Page 46: Precautions

    Precautions Precautions On safety Caution - The use of optical instruments with this product will increase eye hazard. Should any solid object or liquid fall into the cabinet, unplug the player and have it checked by qualified personnel before operating it any further. On power sources The player is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the player itself has been turned off.

  • Page 47

    Precautions n handling disks To keep the disk clean, handle the disk by its edge. Do not touch the surface. Do not stick paper or tape on the disk. If there is glue (or a similar substance) on the disk, remove the glue completely before using the disk.

  • Page 48: Physical Size Of The Dvd Disk

    Physical size of the DVD disk Physical size of the DVD disk The are two sizes of the DVD physical disk: 12 cm and 8 cm in diameter. The more popular size is the 12 cm. The following table shows the structure and measurement of the DVD disk: Physical Structure Capacity Record time...

  • Page 49

    Physical size of the DVD disk DVD feature highlights From the users point of view, a DVD-Video content is organized into Title an Chapter. The use of title and chapter varies from one content to another. The following table shows an example of how a content may be organized: Movie Music...

  • Page 50
