Gefen EXT-DVI-148 User Manual

1:8 dvi distribution amplifier
Hide thumbs Also See for EXT-DVI-148:
Table of Contents

Advertisement

Quick Links

Download this manual
®

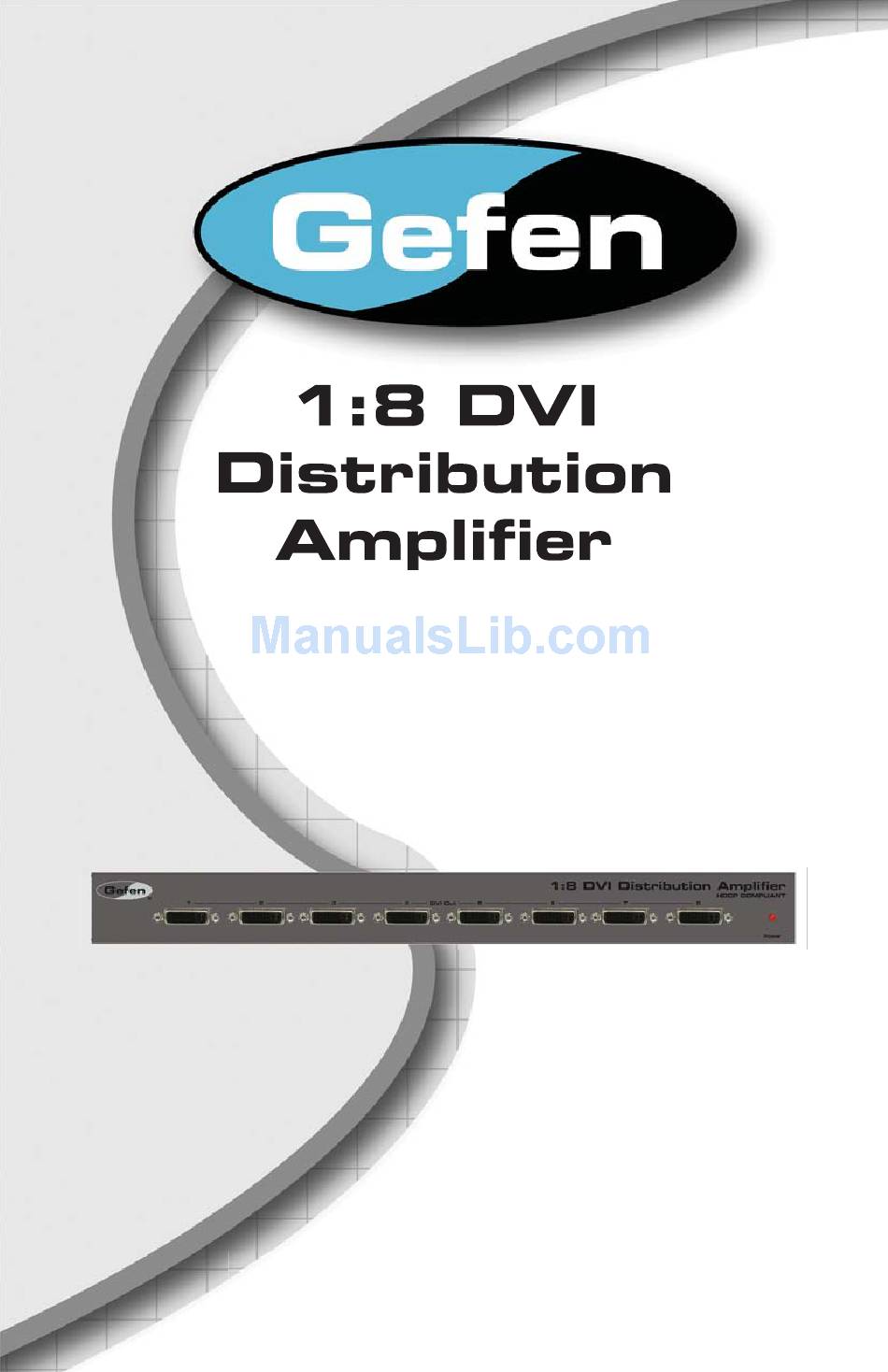

EXT-DVI-148
User Manual
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
ww.gefen.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXT-DVI-148 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gefen EXT-DVI-148

Summary of Contents for Gefen EXT-DVI-148

  • Page 1 ® EXT-DVI-148 User Manual ww.gefen.com...
  • Page 3 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 1:8 DVI Distribution Amplifi er is a trademark of Gefen, LLC © 2010 Gefen, LLC. All rights reserved.

  • Page 4: Table Of Contents

    CONTENTS Introduction Operation Notes Features Panel Layout Panel Descriptions Connecting the 1:8 DVI Distribution Amplifi er Wiring Diagram EDID Management EDID Modes 10 Specifi cations 11 Warranty...

  • Page 5: Introduction

    HDTV systems of all sizes with hard-working solutions that are easy to implement and simple to operate. The Gefen Extender for HDMI 1.3 Over One Fiber with IR The 1:8 DVI Distribution Amplifi er is the perfect solution for anyone who needs to send one source of digital high defi...

  • Page 6: Operation Notes

    OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE 1:8 DVI DISTRIBUTION AMPLIFIER • When using the 1:8 DVI Distribution Amplifi er, it is important to use devices/ displays that have similar or compatible resolutions/features. This will ensure that the single video/audio signal produced by the source device is accepted by all of the connected output devices/displays.

  • Page 7: Features

    FEATURES Features • Distributes easily up to eight DVI/HDMI displays • Maintains 480i, 480p, 720p, 720i, and 1080i, 1080p resolutions • Maintains highest DVI single link video resolution • Maintains highest DVI digital audio signal • Supports HDCP compliant devices •...

  • Page 8: Panel Layout

    PANEL LAYOUT...

  • Page 9: Panel Descriptions

    PANEL DESCRIPTIONS DVI Out (1 - 8) Connect a DVI display to each of these DVI ports. Power This LED indicator will glow bright red when the included power supply is connected to the 1:8 DVI Distribution Amplifi er and the AC power cord is connected to an available electrical outlet.

  • Page 10: Connecting The 1:8 Dvi Distribution Amplifi Er

    1:8 DVI Distribution Amplifi er. Connect the opposite end of the AC power cord into an available electrical outlet. Wiring Diagram for the 1:8 DVI Distribution Amplifi er DVI CABLE Computer Splitter Monitor Monitor Monitor Monito Monitor Monitor Monitor Monitor Monitor EXT-DVI-148 Monitor Monitor...

  • Page 11: Edid Management

    EDID MANAGEMENT EDID: What is it and what is it used for? Under normal circumstances, an source device (digital and analog) will require information about a connected device/display to assess what resolutions and features are available. The source can then cater its output to send only resolutions and features that are compatible with the attached device/ display.

  • Page 12: Edid Modes

    EDID MANAGEMENT EDID Modes The diagrams below illustrate the DIP switch bank for each EDID mode. Use DIP switches 1, 2, and 5 to select the desired EDID management mode. EDID Mode 0 • EDID is copied from the fi rst DVI output. EDID Mode 1 •...
  • Page 13 EDID MANAGEMENT EDID Mode 4 • Same as EDID Mode 3 and adds basic audio support. EDID Mode 5 • Same as EDID Mode 3 and adds full audio support. EDID Mode 6 • EDID is generated based on the common video features of all the connected devices.

  • Page 14: Specifi Cations

    SPECIFICATIONS Maximum Pixel Clock................165 MHz Input Video Signal................1.2 volts p-p Input DDC Signal................5 volts p-p (TTL) Input Video Connector........(1) DVI, 29-pin, female (digital only) Output Video Connector........(8) DVI, 29-pin, female (digital only) Power Consumption ................60W (max.) Power Supply .....................24V DC Dimensions (W x H x D) ....17”...

  • Page 15: Warranty

    Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
  • Page 16 Rev A2 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL listed power supplies.
