Optional

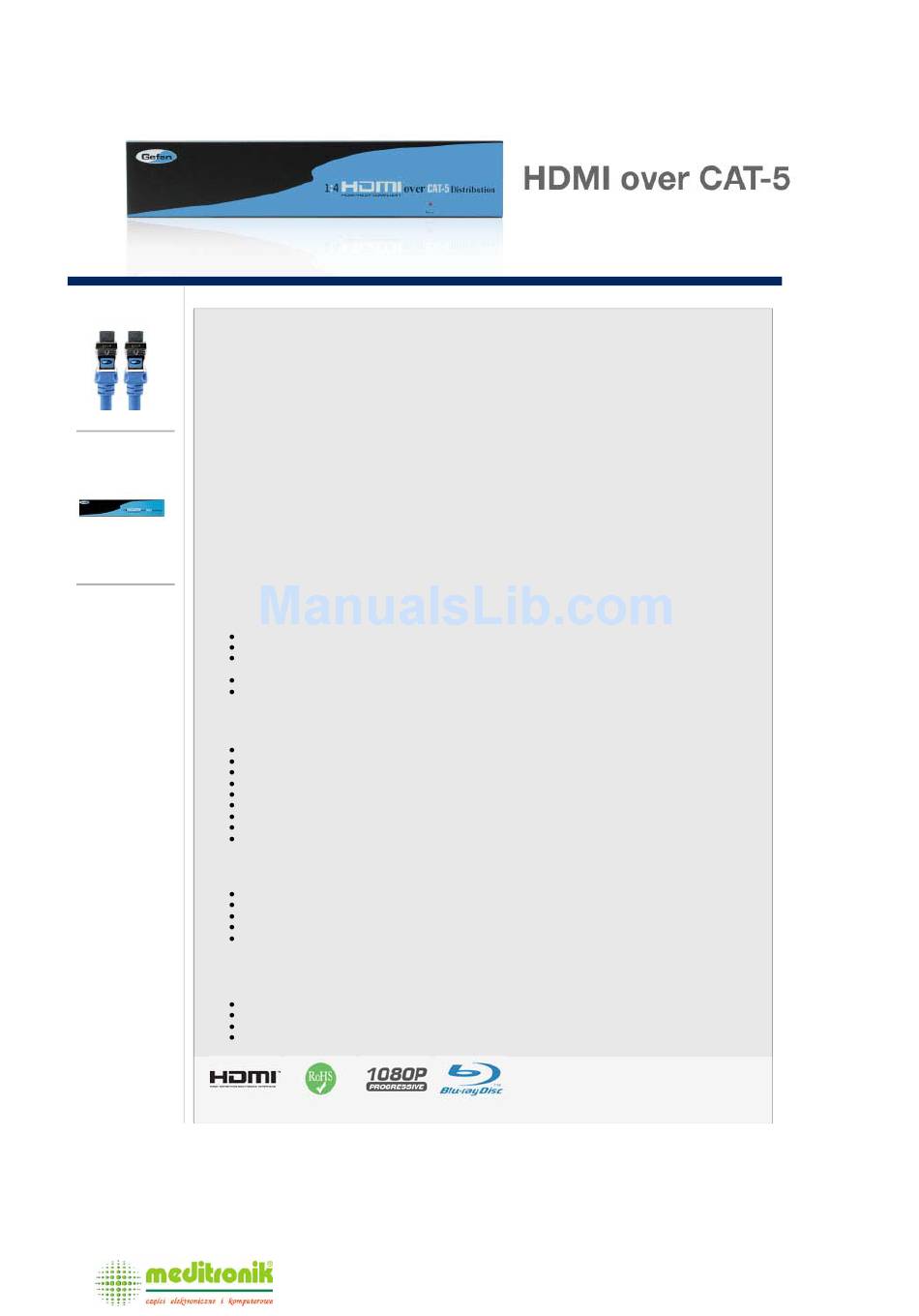

1:4 HDMI CAT5 Distribution Amplifier
Accessories
Distribute HDMI Remotely -- Up to 4 displays, using CAT5 or HDMI cables!
The Gefen 1:4 HDMI Over CAT5 Distribution Amplifier allows you to distribute a single HDMI video
source remotely to as many as 4 separate HDTV displays via inexpensive and standard CAT5
cables as well as HDMI cables.
How It Works
HDMI Cables
Simply plug your master video source into the Gefen 1:4 HDMI Over CAT5 D.A. Sender unit, then
Related Products
run your cables to the remote locations.
If you are using CAT5 cables, pair up your cables with separately purchased HDMI CAT5 D.A.
Extreme Receivers at each video display.
If you are using HDMI cables, just attach up to 4 HDMI cables on the outputs and connect the ends
to the displays.
After connection of cables, power up (or re-start) all equipment and you will have effortless HDMI
video duplication at all locations.
1:8 HDMI CAT5
Distribution Amplifier
Note: CAT5 cable extensions may be up to 300 feet (1080i) or 150 ft (1080p).
Features:
HDMI Video Distribution to up to 4 displays
300 ft. at 1080i; 150-ft range for 1080p
Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, and
computer resolutions up to 1920 x 1200 are easily achieved
Enables greater versatility when installing multiple HDMI displays
HDCP compliant
Specifications:
Video Amplifier Bandwidth: 165 MHz
Input Video Signal: 1.2 volts p-p
Input DDC Signal: 5 volts p-p (TTL)
Single Link Range: 1080p/1920 x 1200
HDMI Video Connector: type A, 19 pin female
Power Supply: 24V DC
Power Consumption: 50 watts (max)
Dimensions: 17.125" W x 3.50" H x 4.125" D
Shipping Weight: 5 lbs.
Package Includes:
1:4 HDMI CAT5 Distribution Amplifier (Sender unit)
6 ft. HDMI M-M video cable
4x 1 ft HDMI M-M video cable
24V DC power supply
User's Manual
Product Options:
How many HDMI CAT5 DA Receivers do you need?
1x EXT-HDMI-CAT5-DAR ($250.00)
2x EXT-HDMI-CAT5-DAR ($500.00)
3x EXT-HDMI-CAT5-DAR ($750.00)
4x EXT-HDMI-CAT5-DAR ($1,000.00)
Dystrybucja i sprzedaż: Meditronik Sp. z o.o.
02-952 Warszawa, ul. Wiertnicza 129, tel. (+48 22) 651-72-42, fax (+48 22) 651-72-46
http://www.meditronik.com.pl
e-mail: office@meditronik.com.pl
EXT-HDMI-CAT5-144
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gefen EXT-HDMI-CAT5-144
Summary of Contents for Gefen EXT-HDMI-CAT5-144
-
Page 1: Specifications
HDMI cables. How It Works HDMI Cables Simply plug your master video source into the Gefen 1:4 HDMI Over CAT5 D.A. Sender unit, then Related Products run your cables to the remote locations. If you are using CAT5 cables, pair up your cables with separately purchased HDMI CAT5 D.A. - Page 2 CAT5 Distribution Amplifier EXT-HDMI-CAT5-144 User Manual www.gefen.com...
- Page 3 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 1:4 HDMI CAT5 Distribution Amplifi er is a trademark of Gefen Inc.
-
Page 4: Table Of Contents
CONTENTS Introduction Operation Notes Features Sender Panel Descriptions Receiver Panel Descriptions Connecting And Operating The 1:4 HDMI CAT5 DA Manual Equalization Procedure Network Cable Wiring Diagram Specifi cations Warranty... -
Page 5: Introduction
The Gefen 1:4 HDMI CAT5 DA The Gefen 1:4 HDMI Over CAT5 Distribution Amplifi er allows you to distribute a single HDMI video source remotely to as many as 4 separate HDTV displays via inexpensive and standard CAT5 cables as well as HDMI cables. -
Page 6: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE 1:4 HDMI CAT5 DA • 1:4 HDMI CAT5 DA unit is housed in a metal box for better RF shielding. • An HDMI jumper cable (4 are included) must be connected from each of the lower board outputs to each of the upper board inputs for proper extension operation. -
Page 7: Features
FEATURES Features • HDMI Video Distribution to up to 4 displays • 300 ft. at 1080i; 150-ft range for 1080p • Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, and computer resolutions up to 1920 x 1200 are easily achieved •... -
Page 8: Sender Panel Descriptions
SENDER PANEL DESCRIPTIONS Front Panel Power LED Indicator Back Panel HDMI 1 HDMI 2 HDMI 3 HDMI 4 Input Input Input Input 24V DC Power Input HDMI 1 HDMI 2 HDMI 3 HDMI 4 RJ-45 Outputs RJ-45 Outputs RJ-45 Outputs RJ-45 Outputs Main HDMI 1*... -
Page 9: Receiver Panel Descriptions
RECEIVER PANEL DESCRIPTIONS Front Panel HDMI Output 5V DC Power input EQ trim pot Power LED Indicator Back Panel DDC RJ-45 Port VIDEO RJ-45 Port... -
Page 10: Connecting And Operating The 1:4 Hdmi Cat5 Da
CONNECTING AND OPERATING THE 1:4 HDMI CAT5 DA How to Connect the 1:4 HDMI CAT5 DA Connect the single HDMI source to the 1:4 HDMI CAT5 DA main HDMI input using the supplied 6 foot HDMI cable. Using the four supplied 1 foot HDMI jumper cables, connect each output on the lower portion of the back panel to each of the HDMI inputs on the upper portion of the 1:4 HDMI CAT5 DA. -
Page 11: Manual Equalization Procedure
MANUAL EQUALIZATION PROCEDURE The HDMI CAT5 DAR receiver units have a set of dip switches located on the underside of their casings. There is a piece of silver metallic tape that must be removed to expose these dip switches. Each HDMI CAT5 DAR receiver carries one bank of 4 dip switches. -
Page 12: Network Cable Wiring Diagram
Gefen has specifi cally engineered their products to work with the TIA/EIA-568-B specifi cation. Please adhere to the table below when fi eld terminating cable for use with Gefen products. Failure to do so may produce unexpected results and reduced performance. -
Page 13: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ............... 165 MHz Input Video Signal ................1.2 volts p-p Input DDC Signal ................. 5 volts p-p (TTL) Single Link Range ..............1080p/1920 x 1200 HDMI Video Connector ............Type A, 19 Pin Female Power Supply .................... 24V DC Power Consumption ...............
