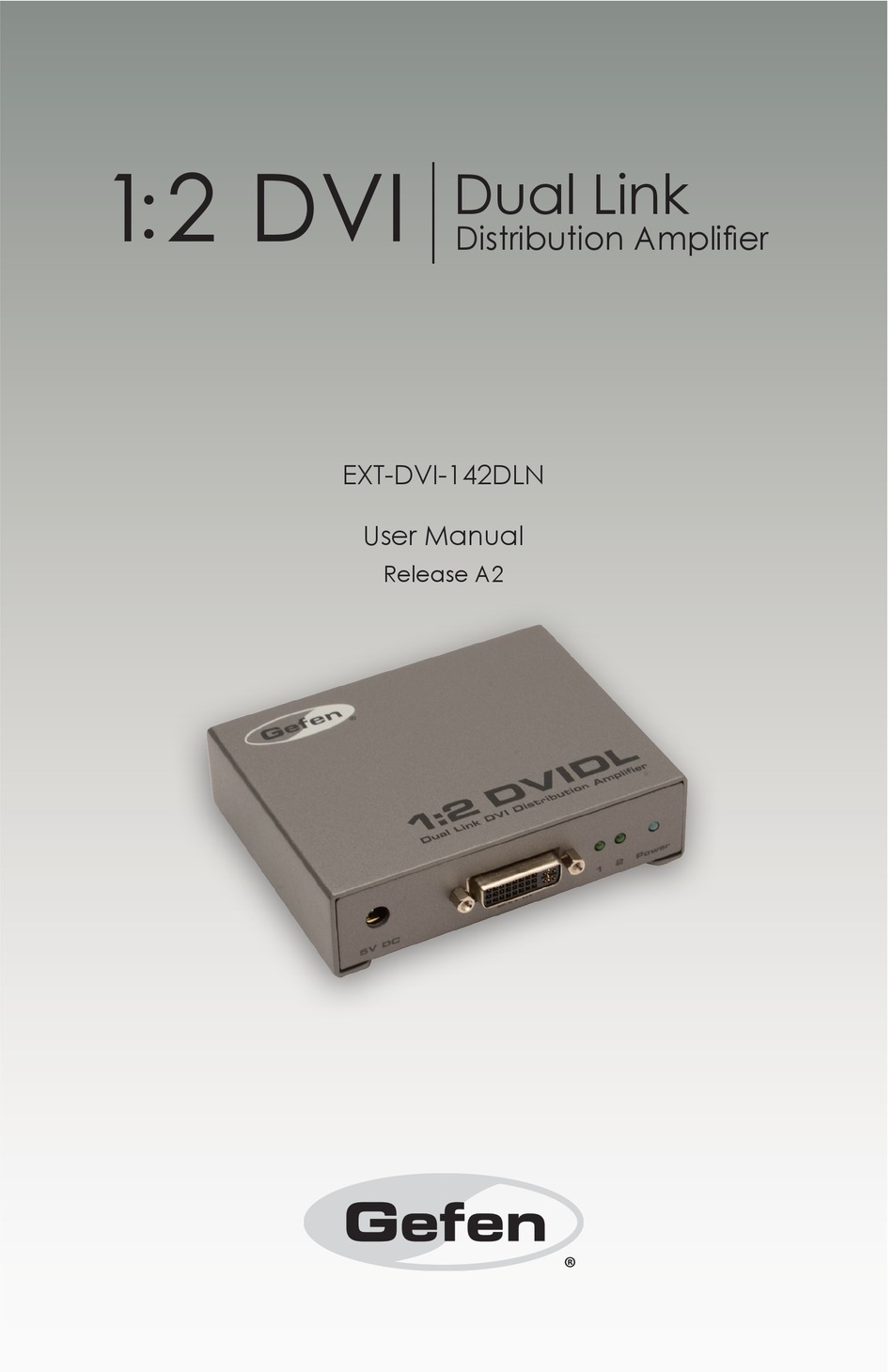

- Page 1 1 2 DVI Dual Link 3GSDI Audio Embedder Distribution Amplifier EXT-DVI-142DLN User Manual Release A2...
-
Page 2: Important Safety Instructions
1:2 DVI Dual Link Distribution Amplifer Important Safety Instructions GENERAL SAFETY INFORMATION Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this product near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. -
Page 3: Warranty Information
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notified within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications. - Page 4 1:2 DVI Dual Link Distribution Amplifier is a trademark of Gefen, LLC. Important Notice Gefen, LLC reserves the right to make changes in the hardware, packaging, and any accompanying documentation without prior written notice. © 2013 Gefen, LLC. All Rights Reserved.
-
Page 5: Operating Notes
3GSDI Audio Embedder 1:2 DVI Dual Link Distribution Amplifer Operating Notes • There is no internal scaling in the 1:2 DVI Dual Link Distribution Amplifer. All of the attached monitors must be able to display the output resolutions of the source device. -
Page 6: Packing List
The 1:2 DVI Dual Link Distribution Amplifier ships with the items listed below. If any of these items are not present in your box when you first open it, immediately contact your dealer or Gefen. • 1 x 1:2 DVI Dual Link Distribution Amplifier •... -
Page 8: Table Of Contents
3GSDI Audio Embedder 1:2 DVI Dual Link Distribution Amplifer Table of Contents Getting Started Panel Layout ......................2 Front Panel ....................2 Back Panel ....................3 Installation ......................4 Connecting the 1:2 DVI Dual Link Distribution Amplifier ....... 4 Sample Wiring Diagram ................4 Appendix Specifications ...................... -
Page 11: Getting Started
1 2 DVI Dual Link Distribution Amplifier 01 Getting Started Panel Layout ......................2 Front Panel ....................2 Back Panel ....................3 Installation ......................4 Connecting the 1:2 DVI Dual Link Distribution Amplifier ....... 4 Sample Wiring Diagram ................4... -
Page 12: Panel Layout
Getting Started Panel Layout Front Panel Name Description 5V DC Connect the included 5V DC power supply to this power receptacle. DVI In Connect the DVI source to this port using the included dual-link DVI cable. This LED indicator will glow bright green once a display is connected to DVI Out 1. -
Page 13: Back Panel
Introduction Getting Started Panel Layout Back Panel Name Description DVI Out 1 Connect a dual link DVI display to this port using a dual-link DVI cable. DVI Out 2 Connect a dual link DVI display to this port using a dual-link DVI cable. page | 3... -
Page 14: Installation
Connect the power supply to an available electrical AC outlet. Sample Wiring Diagram DVI DUAL LINK CABLE 1:2 DVI Dual Link Distribution Ampli er DVI Dual Link Source DVI Dual Link Display DVI Dual Link EXT-DVI-142DLN Display page | 4... - Page 15 page | 5...
-
Page 17: Appendix
1 2 DVI Dual Link Distribution Amplifier 02 Appendix Specifications ......................8... -
Page 18: Specifications
Appendix Specifications Supported Formats Resolutions (max.) • 1920 x 1200 (WUXGA) • 3840 x 2400 (WQUXGA) Electrical Maximum Pixel Clock • 2 x 165 MHz Input Video Signal • 1.2V p-p Input DDC signal • 5V p-p (TTL) Power Indicator •... - Page 20 Stretch it. Switch it. Split it Gefen’s got it. ® 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL or CE listed power supplies.
