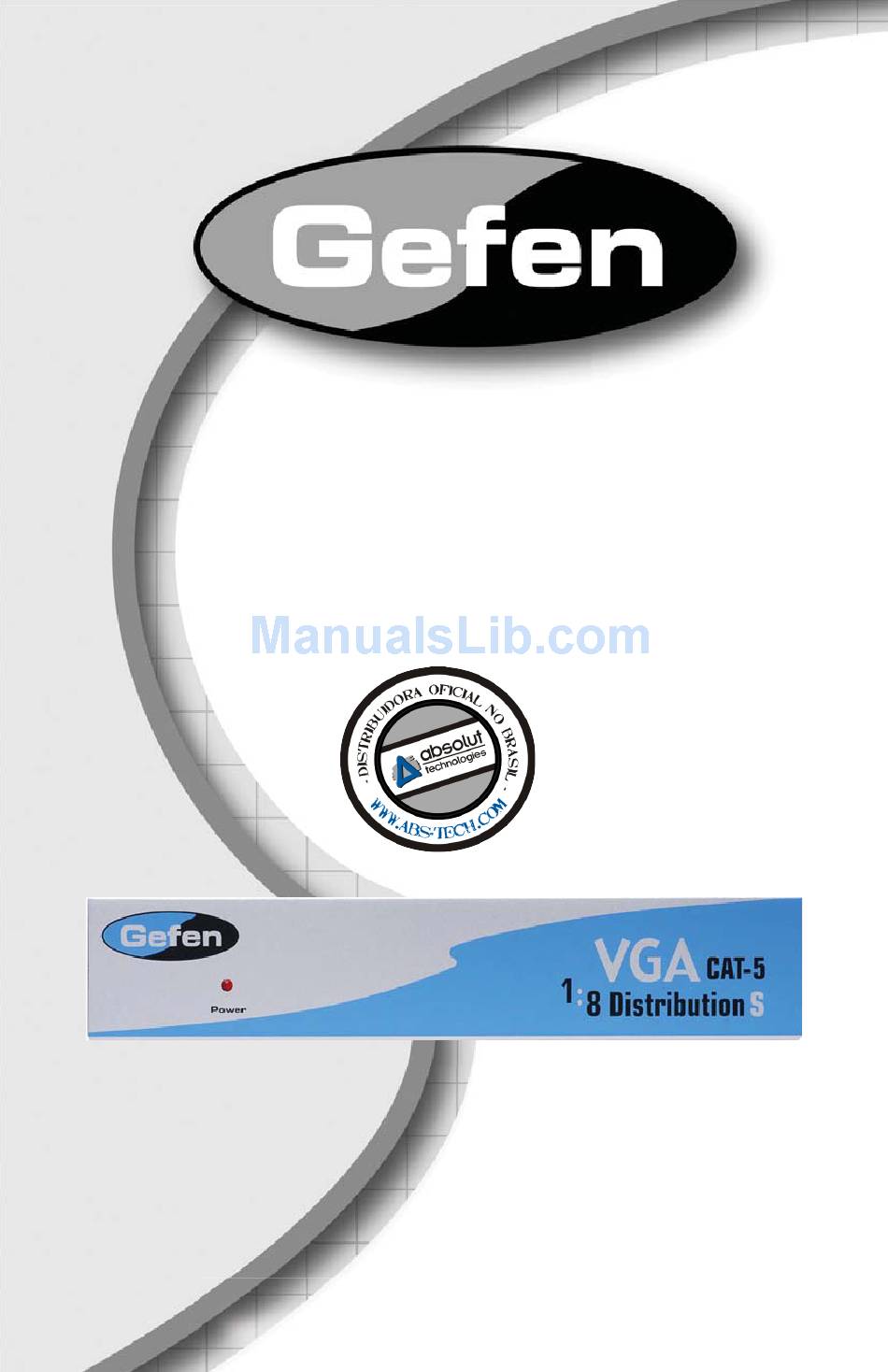

- Page 1 ® 1x8 VGA CAT-5 Distribution Amplifier E X T - V G A - C A T 5 - 1 4 8 S U S E R M A N U A L www.gefen.com...
- Page 2 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. is a trademark of Gefen Inc. 1X8 VGA CAT5 Distribution Amplifi er ©...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction / Operation Notes Features Sender Panel Descriptions Receiver Panel Descriptions Connecting and Operating the 1X8 VGA CAT5 Distribution Amplifi er How to Adjust the Picture Network Cable Wiring Diagram Specifi cations Warranty... -
Page 4: Introduction / Operation Notes

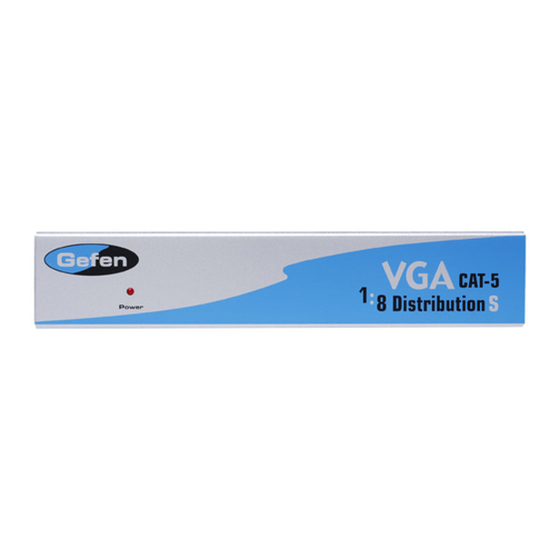

INTRODUCTION One VGA Input, Eight VGA Outputs The 1:8 VGA CAT5 Distribution Amplifi er is the perfect solution for anyone who needs to send one source to multiple displays in re- mote locations at the same time. The 1:8 VGA CAT5 Distribution Amplifi er has eight RJ-45 output connector and one VGA input. -
Page 5: Features
FEATURES Features • Distributes easily up to eight VGA displays • Extends each display up to 330 feet • Maintains 1920 x 1200 and 1080p resolutions • Distributes and extends VGA or Component • Installs in seconds Includes: (1) 1x8 VGA CAT5 DA (Distribution Amplifi er) (1) 6’... -
Page 6: Sender Panel Descriptions
SENDER PANEL DESCRIPTIONS Power LED Video CAT5 VGA Input Video CAT5 Connects to Out 1-4 Out 5-8 5VDC power supply... -
Page 7: Receiver Panel Descriptions
RECEIVER PANEL DESCRIPTIONS Brightness Video Power VGA Out Trim Pot CAT5 In... - Page 8 CONNECTING AND OPERATING THE 1X8 VGA CAT5 Distrib. Amp. How to Connect the 1x8 VGA CAT5 DA to your devices Connect the supplied VGA cable from the VGA video source into the 1x8 VGA CAT5 DA Sender "VGA In". Connect a CAT-5e* cable from the "CAT5 Video Outs" on the 1x8 VGA CAT5 DA Sender to the "CAT5 Inputs"...
-
Page 9: How To Adjust The Picture
HOW TO ADJUST THE PICTURE The fi rst step in adjusting the video quality is to display text and a graphic on your monitor (i.e. desktop icons). Then set your computer to the resolution that you will be using most frequently. -
Page 10: Network Cable Wiring Diagram
Gefen has specifi cally engineered their products to work with the TIA/EIA-568-B specifi cation. Please adhere to the table below when fi eld terminating cable for use with Gefen products. Failure to do so may produce unexpected results and reduced performance. -
Page 11: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth: ................350 MHz Input Video Signal: ...................1.2 volts p-p Input Sync Signal: ................5 volts p-p (TTL) Horizontal Frequency Range: ..............15 - 70 KHz Vertical Frequency Range: ................30 - 170 Hz Video In:......................HD-15 Video out: ......................HD-15 Link Connector: ....................RJ-45 Power Supply: ................5 VDC / 8A (External) Power Consumption: ................30 Watts (max.) -
Page 12: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 14 Rev X1 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...
