Summary of Contents for Gefen EXT-HDMI-CAT5-148

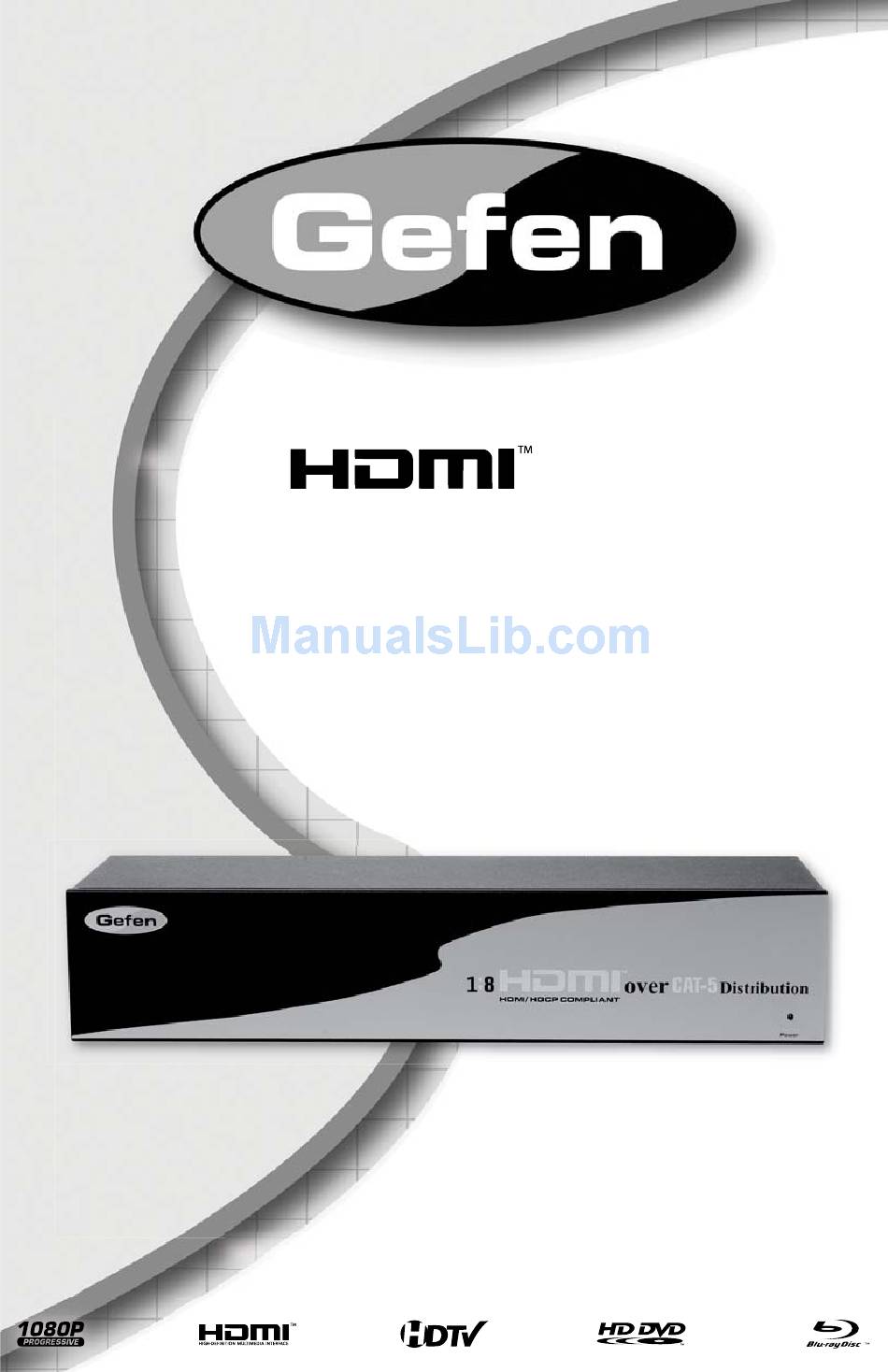

- Page 1 CAT5 Distribution Amplifier EXT-HDMI-CAT5-148 User Manual www.gefen.com...
- Page 2 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 1:8 HDMI CAT5 Distribution Amplifi er is a trademark of Gefen Inc.
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Sender Panel Descriptions Receiver Panel Descriptions Connecting And Operating The 1:8 HDMI CAT5 DA Manual Equalization Procedure Network Cable Wiring Diagram Specifi cations Warranty... -
Page 4: Introduction
The Gefen 1:8 HDMI CAT5 DA The Gefen 1:8 HDMI Over CAT5 Distribution Amplifi er allows you to distribute a single HDMI video source remotely to as many as 8 separate HDTV displays via inexpensive and standard CAT5 cables as well as HDMI cables. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE 1:8 HDMI CAT5 DA • 1:8 HDMI CAT5 DA unit is housed in a metal box for better RF shielding. • An HDMI jumper cable (8 are included) must be connected from each of the lower board outputs to each of the upper board inputs for proper extension operation. -
Page 6: Features
FEATURES Features • HDMI Video Distribution to up to 8 displays • 300 ft. at 1080i; 150-ft range for 1080p • Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, and computer resolutions up to 1920 x 1200 are easily achieved •... -
Page 7: Sender Panel Descriptions
SENDER PANEL DESCRIPTIONS Front Panel Power LED Indicator Back Panel HDMI 1 & 5 HDMI 2 & 6 HDMI 3 & 7 HDMI 4 & 8 Input Input Input Input HDMI 1 & 5 HDMI 2 & 6 HDMI 3 & 7 HDMI 4 &... -
Page 8: Receiver Panel Descriptions
RECEIVER PANEL DESCRIPTIONS Front Panel HDMI Output 5V DC Power input EQ trim pot Power LED Indicator Back Panel DDC RJ-45 Port VIDEO RJ-45 Port... -
Page 9: Connecting And Operating The 1:8 Hdmi Cat5 Da
CONNECTING AND OPERATING THE 1:8 HDMI CAT5 DA How to Connect the 1:8 HDMI CAT5 DA Connect the single HDMI source to the 1:8 HDMI CAT5 DA main HDMI input using the supplied 6 foot HDMI cable. Using the 8 supplied 1 foot HDMI jumper cables, connect each output on the lower portion of the back panel to each of the HDMI inputs on the upper portion of the 1:8 HDMI CAT5 DA. -
Page 10: Manual Equalization Procedure
MANUAL EQUALIZATION PROCEDURE The HDMI CAT5 DAR receiver units have a set of dip switches located on the underside of their casings. There is a piece of silver metallic tape that must be removed to expose these dip switches. Each HDMI CAT5 DAR receiver carries one bank of 4 dip switches. -
Page 11: Network Cable Wiring Diagram
Gefen has specifi cally engineered their products to work with the TIA/EIA-568-B specifi cation. Please adhere to the table below when fi eld terminating cable for use with Gefen products. Failure to do so may produce unexpected results and reduced performance. -
Page 12: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ............... 165 MHz Input Video Signal ................1.2 volts p-p Input DDC Signal ................. 5 volts p-p (TTL) Single Link Range ..............1080p/1920 x 1200 HDMI Video Connector ............Type A, 19 Pin Female Power Supply .................... 24V DC Power Consumption ...............
