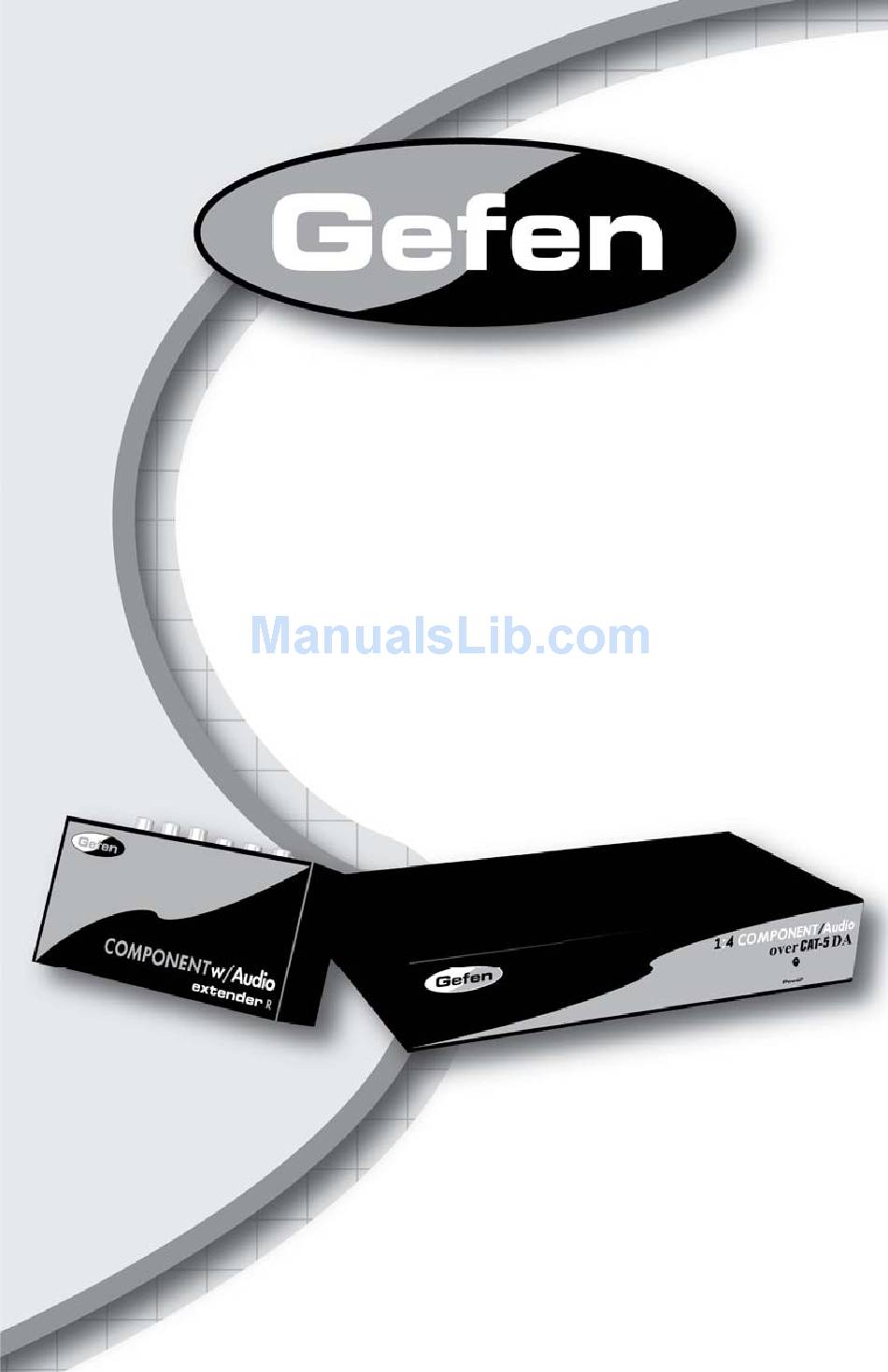

- Page 1 1:4 Component/ Audio Over CAT5 Distribution Amplifi er Model EXT-COMPAUD-CAT5-144 U S E R M A N U A L www.gefen.com...
- Page 2 Chatsworth, CA 91311 support@gefen.com www.gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 1:4 Component/Audio Over CAT5 Distribution Amplifi er © 2008 Gefen Inc., All Rights Reserved...
-
Page 3: Table Of Contents
Introduction / Operation Notes Features Panel Description - Sender Panel Description - Receiver Connecting the 1:4 Component/Audio Over CAT5 DA Operating the 1:4 Component/Audio Over CAT5 DA Wiring Diagram Network Wiring Diagram Specifi cations Warranty TABLE OF CONTENTS... -
Page 4: Introduction / Operation Notes
The 1:4 Component/Audio Over CAT5 Distribution Amplifi er (DA) sends up to 4 identical sets of sparkling clear component video with audio to remote locations via four CAT5 cables at distances of up to 1000 feet. Now you can reliably and cleanly distribute up to four copies of a video signal with digital or analog audio to remote locations without having to worry about signal drop-off and loss of quality. -
Page 5: Features
Features • Supports up to 1080p component video • Supports analog L+R audio and multichannel digital optical or coaxial • No Loss of Quality • Plug and play installation • Equalization adjustment for different CAT5e skews • One CAT5e cable for extension Package Contents - 1:4 Component/Audio Over CAT5 DA Sender (1) 1:4 Component/Audio Over CAT5 Distribution Amplifi... -
Page 6: Panel Description - Sender
PANEL DESCRIPTIONS - SENDER Front Panel Power LED Indicator Back Panel SPDIF RJ-45 Output RJ-45 Output 5V DC Power Analog Audio Component Port 1 Port 3 Input Input Input Optical In RJ-45 Output RJ-45 Output Port 2 Port 4... -
Page 7: Panel Description - Receiver
PANEL DESCRIPTION - RECEIVER Front Panel Focus RJ-45 Input Trim Pot Port Brightness Trim Pot Back Panel Power LED SPDIF Indicator Component Analog Audio 5V DC Output Output Optical Out Power Input... -
Page 8: Connecting The 1:4 Component/Audio Over Cat5 Da
CONNECTING THE 1:4 COMPONENT/AUDIO OVER CAT5 DA Connect the component source into the 1:4 Component/Audio Over CAT5 DA using the provided 3 RCA component cable. Connect the audio source to the 1:4 Component/Audio Over CAT5 DA using one of the 3 options below: Digital Optical - user supplied optical cable Digital Coaxial - supplied SPDIF cable Analog audio - user supplied analog RCA cables... -
Page 9: Operating The 1:4 Component/Audio Over Cat5 Da
OPERATING THE 1:4 COMPONENT/AUDIO OVER CAT5 DA Once all cables are connected and all devices are powered on, there is no further operations needed to utilize the 1:4 Component/Audio Over CAT5 DA. However, it may be necessary to tune the signal depending on the quality of CAT5e cabling and distance that the signal has to travel. -
Page 10: Wiring Diagram
WIRING DIAGRAM... -
Page 11: Network Wiring Diagram
Gefen has specifi cally engineered their products to work with the TIA/EIA-568-B specifi cation. Please adhere to the table below when fi eld terminating cable for use with Gefen products. Failure to do so may produce unexpected results and reduced performance. -
Page 12: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ... 350 MHz Input Video Signal ... 1.2 Volts p-p Input Sync Signal ... 5 Volts p-p (TTL) Horizontal Frequency Range ... 15-70 KHz Vertical Frequency Range ... 30-170 Hz Video In/Out ... 3 RCA component Audio In/Out ...
