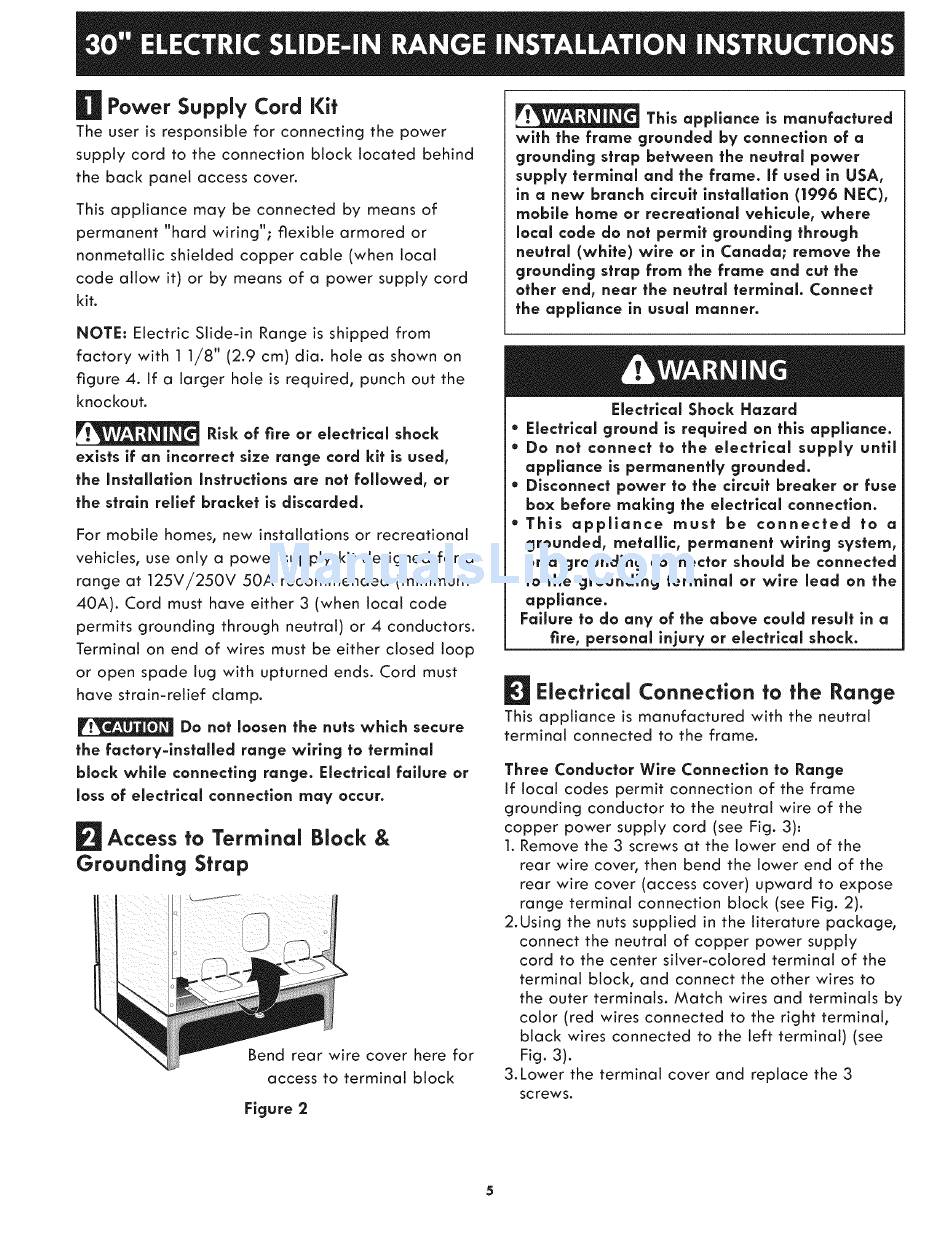

Power Supply Cord Kit
The user is responsible
for connecting
the power
supply cord to the connection
block located
behind
the back panel access cover.
This appliance
may be connected
by means of
permanent
"hard wiring";
flexible
armored
or
nonmetallic
shielded
copper
cable
(when local
code allow
it) or by means of a power supply cord
kit.
NOTE: Electric
Slide-in
Range is shipped
from
factory
with 1 1/8" (2.9 cm) dia. hole as shown on
figure 4. If a larger
hole is required,
punch out the
knockout.
Risk of fire or electrical
shock
exists if an incorrect size range cord kit is used,
the installation
instructions are not fallowed,
or
the strain relief
bracket
is discarded.
For mobile
homes, new installations
or recreational
vehicles, use only a power supply kit designed
for a
range at 125V/250V
50A recommended
(minimum
40A).
Cord must have either 3 (when local code
permits
grounding
through
neutral)
or 4 conductors.
Terminal on end of wires must be either closed loop
or open spade tug with upturned
ends. Cord must
have strain-relief
clamp.
Do not loosen the nuts which
secure
the factory-lnstalled
range wiring
to terminal
block while
connecting range.
Electrical
failure
or
loss of electrical
connection may occur.
Access to Terminal
Block &
Grounding
Strap
Bend rear wire cover here for
access to terminal
block
Figure 2
This appliance
is manufactured
with the frame
grounded
by connection of a
grounding
strap between
the neutral power
supply terminal
and the frame.
If used in USA,
in a new branch circuit installation
(1996 NEC),
mobile
home or recreatlonal
vehlcule, where
local code do not permit grounding
through
neutral
(white)
wire
or in Canada;
remove
the
grounding
strap from the frame
and cut the
other end, near the neutral terminal.
Connect
the appliance
in usual manner.
Electrical
Shock Hazard
* Electrical
ground
is required
on this appliance.
* Do not connect
to the electrical
supply
until
appliance
is permanently
grounded.
* Disconnect
power to the circuit breaker
or fuse
box before making
the electrical
connection.
* This
appliance
must
be connected
to
a
grounded,
metallic,
permanent
wiring
system,
or a grounding
connector should be connected
to the grounding
terminal
or wire
lead on the
appliance.
Failure
to do any of the above
could result in a
fire, personal injury or electrical
shock.
Electrical
Connection to the Range
This appliance
is manufactured
with the neutral
terminal
connected
to the frame.
Three Conductor Wire Connection to Range
If local codes permit connection
of the frame
grounding
conductor
to the neutral wire of the
copper
power supply cord (see Fig. 3):
1. Remove the 3 screws at the lower end of the
rear wire cover, then bend the lower end of the
rear wire cover (access cover) upward
to expose
range terminal
connection
block (see Fig. 2).
2.Using the nuts supplied
in the literature
package,
connect
the neutral
of copper
power supply
cord to the center silver-colored
terminal
of the
terminal
block, and connect
the other wires to
the outer terminals.
Match
wires and terminals
by
color (red wires connected
to the right terminal,
black wires connected
to the left terminal)
(see
Fig. 3).
&Lower
the terminal
cover and replace
the 3
screws.
