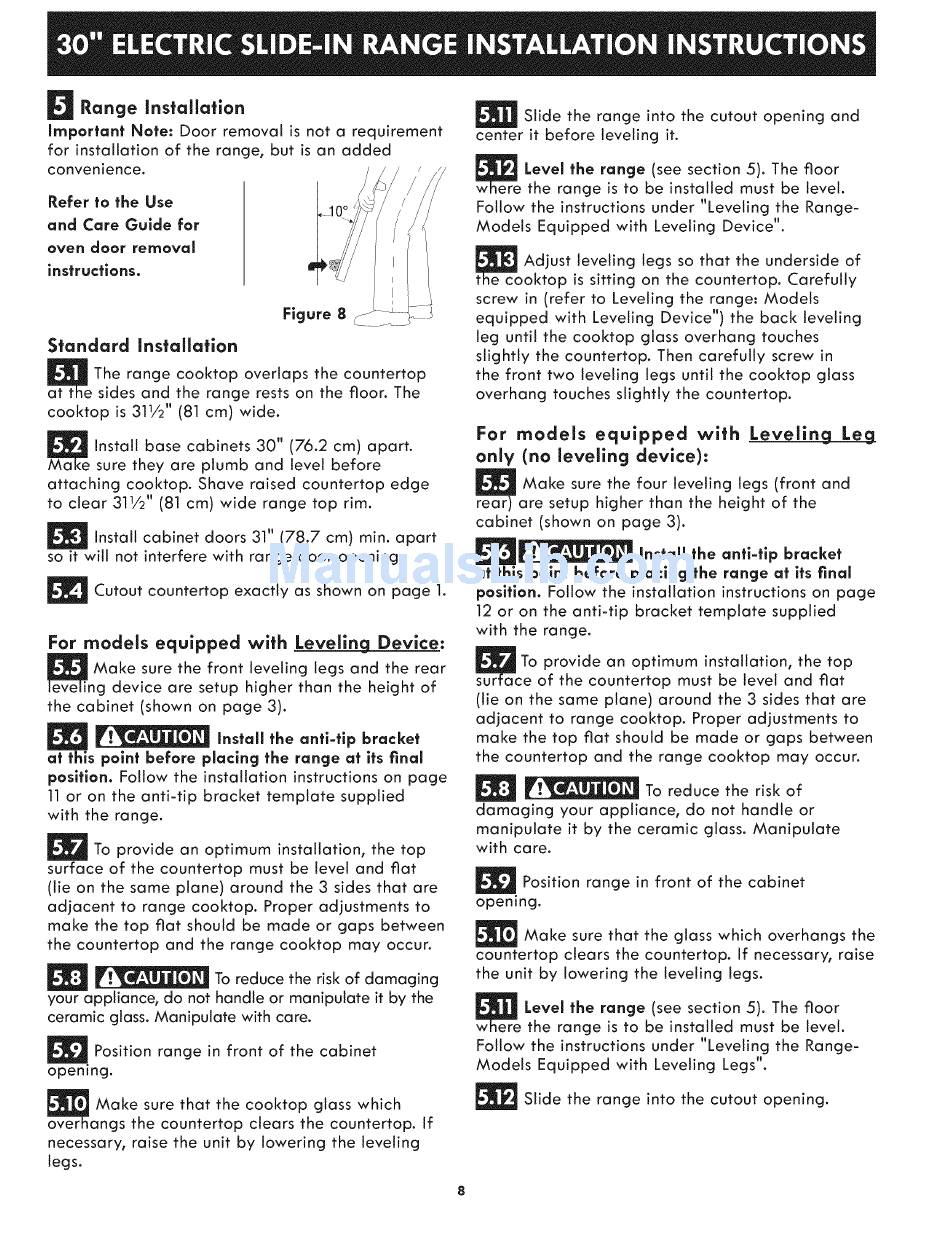

Range Installation
Important
Note:
Door removal
is not a requirement
for installation
of the range, but is an added
convenience.
Refer to the Use
and Care Guide for
oven door removal
instructions.
Figure 8
Standard Installation
The range cooktop
overlaps
the countertop
at t
_ sides and the range rests on the floor. The
cooktop
is 311/2" (81 cm) wide.
Instalt
base
cabinets
30"
(76.2
cm)
apart.
Ma
sure they
are plumb
and
level
before
attaching
cooktop.
Shave
raised
countertop
edge
to clear
311/2" (81 cm) wide
range
top
rim.
install
cabinet
doors
31" (78.7
cm) rain. apart
so it
will
not interfere
with
range
door
opening.
Cutout
countertop
exactly
as shown
on page
1.
For models equipped
with
Leveling
Device:
Make sure the front leveling
tegs and the rear
ng device are setup higher than the height of
the cabinet
(shown on page 3).
Install
the antl-tip
bracket
at this point before placing the range at its final
position. Follow the installation
instructions
on page
11 or on the anti-tip
bracket
template
supplied
with the range.
_To
provide
an optimum
installation, the top
surface
of the countertop
must be level and flat
(tie on the same plane) around the 3 sides that are
adjacent
to range cooktop.
Proper adjustments
to
make the top flat should be made or gaps between
the countertop
and the range cooktop
may occur.
To reduce the risk of damaging
your appliance, do not handle or manipulate
it by the
ceramic glass. Manipulate
with care.
Position range in front of the cabinet
opening.
Make
sure that
the cooktop
glass which
over
angs
the countertop
clears
the countertop.
If
necessary,
raise
the unit by lowering
the leveling
legs.
Slide the range into the cutout opening
and
center it before
leveling
it.
Level the range
(see section 5). The floor
the range is to be installed
must be level.
Follow the instructions
under "Leveling
the Range-
Models
Equipped
with Leveling
Device".
te_coAdjust
that the underside
of
leveling
legs
SO
oktop is sitting on the countertop.
Carefully
screw in (refer to Leveling the range: Models
equipped
with Leveling
Device") the back leveling
leg until the cooktop
glass overhang
touches
slightly
the countertop.
Then carefully
screw in
the front two leveling
legs until the cooktop
glass
overhang
touches
slightly
the countertop.
For
models
equipped
with
LevelincLLeLeg
only (no leveling
device):
Make sure the four
leveling
legs
(front and
rear) are setup higher than the height of the
cabinet
(shown on page 3).
Install
the anti-tip bracket
at this point before placing the range at its final
position. Follow the installation
instructions
on page
12 or on the anti-tip
bracket
template
supplied
with the range.
To provide
an optimum
installation,
the top
sur
:e of the countertop
must be level and fiat
(tie on the same plane) around the 3 sides that are
adjacent
to range cooktop.
Proper adjustments
to
make the top fiat should be made or gaps between
the countertop
and the range cooktop
may occur.
To reduce the risk of
damaging
your appliance,
do not handle or
manipulate
it by the ceramic
glass. Manipulate
with care.
Position range in front of the cabinet
opening.
Make sure that the glass which overhangs
the
countertop
clears the countertop,
if necessary,
raise
the unit by lowering
the leveling
legs.
Level the range (see section 5). The floor
w
the range is to be installed
must be level.
Follow the instructions
under "Leveling
the Range-
Models
Equipped
with Leveling
Legs*'.
Slide the range into the cutout opening.
