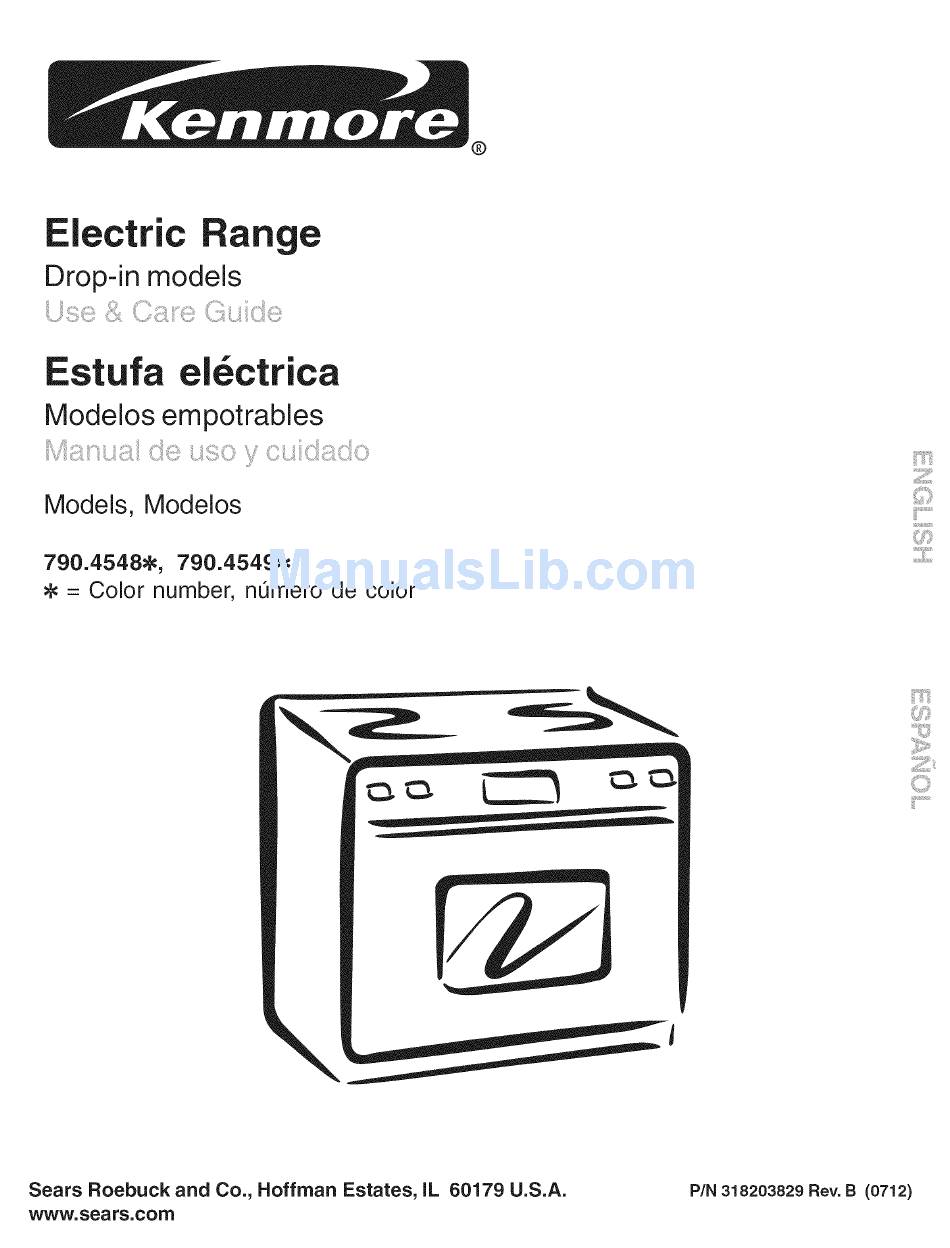

Kenmore 7904549 Series Use & Care Manual

Electric range drop-in models
Hide thumbs

Advertisement

Quick Links

Download this manual
®
Electric
ange
Drop-in models
ufa el6ctrica
Modelos empotrables
Models, Modelos
790.4548_,
790.4549_
= Color number, n0mero de color
Sears Roebuck
and Co., Hoffman
Estates,
IL 60179 U.S.A.
www.sears.com
PIN 318203829 Rev. B (0712)

Advertisement

loading

Related Manuals for Kenmore 7904549 Series

Summary of Contents for Kenmore 7904549 Series

  • Page 1 ® Electric ange Drop-in models ufa el6ctrica Modelos empotrables Models, Modelos 790.4548_, 790.4549_ = Color number, n0mero de color PIN 318203829 Rev. B (0712) Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com...
  • Page 2 Sears Service ..............Selecting Surface Cooking Cookware ......10 Kenmore Warranty When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to arrange for free repair.
  • Page 3 important Safety instructions Read all instructions before using this appliance. Save these instructions for future reference. This manual contains many important safety messages. Always read and obey all safety messages. The safety symbol _ calls your attention to safety messages that inform you of hazards that can kill or hurt you or others, or cause damage to the product.
  • Page 4 important Safety instructions Wear proper apparelmLoose-fitting or hanging Never leave surface burners unattended at high heat garments should never be worn while using the settings--Boilovers cause smoking and greasy accu- appliance. Do not let clothing or other flammable mulations that may ignite, or a pan that has boiled dry materials contact hot surfaces.
  • Page 5 important Safety instructions SELF-CLEANING OVENS Keep oven vent ducts unobstructed. The oven is vented through the right rear coil element or at right side • In the self=cleaning cycle, only clean the parts listed of the front panel and visible when the oven door is in this Use and Care Guide.
  • Page 6 Enhorabuena por haber hecho una compra intetigente. Su nuevo producto Congratulations on making a smart purchase. Your new Kenmore®esta diseSado y fabricado para brindarle aSos de funcionamiento Kenmore®product is designed and manufactured for years of fiable. Pero, como cualquier producto, puede necesitar mantenimiento dependable operation.
  • Page 7 Range features Electronic Oven Controls Surface Element with Clock and Kitchen Timer Control Knob Your Electric Broil Element Range Vent Features At a glance Light Self-Cleaning (2) adjustable Racks One Piece Door Handle (Style varies with model) Broil Pan Insert Glass Front (some models) Oven Door...
  • Page 8 Setting Surface Controls Models with Coil Surface Elements Setting Surface Controls 1. Place the pan on the surface element. JJJ ..o \ 2. Push in and turn the surface element control knob to desired setting. 3. The surface signal light will glow when one or more elements are turned on. Always turn the element off before removing the pan.
  • Page 9 Setting Surface Controls (cont'd) iVlodels with Ceramic Glass Cooktop (cont'd) Radiant Surface Cooking Settings surface elements may appear to have cooled after Use the chart (Figure 1) to determine the correct setting for the kind of food you are they have been turned off. A preparing.
  • Page 10 Setting Surface Controls (cont'd) Models with Ceramic Glass Cooktop (cont'd) Operating the Dual Surface Radiant Element The cooktop is equipped with a dual radiant surface element located at the right front (See Figure 4) position. "Single and Dual" on the control knob are used to indicate which coil of the dual radiant element will heat.
  • Page 11 Before Setting Oven Controls i I__iThis range has afan that willturn "ON" and "OFF" by itselfto keeptheelectronicscool, it maycontinue to run after the range has been turned "OFF", but may also stop immediately and then turn "ON" after a while. Oven Vent Location =Models Oven Vent Location =Models with Removing and Replacing Oven...
  • Page 12 Control Pad Functions Note: The appearance of your oven control may differ slightly from the one illustrated below. However, all functions are the same. Also, push buttons or pads may be shaped differently than those appearing in this Use and Care Guide. READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN.
  • Page 13 Setting Oven Controls Note: The time of day must first be set in order to operate the oven. To Set the Clock When the range is first plugged in, or when the power supply to the range has been interrupted, the display will flash "12:00".
  • Page 14 Setting Oven Controls (cont'd) To Set or Change the Temperature for Baking The oven can be programmed to bake at any temperature from 170°F to 550°F (77°C to 287°C). To Set the Controls for Baking: Press "------" appears in the display. Within 5 seconds, press the j_ or V.
  • Page 15 Setting Oven Controls (cont'd) To Set the Timed Bake and Delay Start Features The _ COOK TiME and _ DELAY START pads operate the features that will turn the oven ON and OFF at the times you select in advance, The oven can be programmed to start immediately and shut off automatically (Timed Bake) or to begin baking at a later time with a delayed start time (Delay Start), To Program the Oven to Begin Baking Immediately and To Shut Off Automatically (Timed Bake):...
  • Page 16 Setting Oven Controls (cont'd) Oven Baking information For best results, preheat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need to preheat the oven for roasting meat or baking casseroles. The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance. Refer to "Adjusting the Oven Temperature"...
  • Page 17 Setting Oven Controls (cont'd) To Set for Broiling: Some Models Note: For optimum browning results when broiling, preheat the broil element for 3 to 4 minutes. Arrange the oven rack while oven is still cool. Position the rack as suggested in the Broil Rack Position Table below.
  • Page 18 Setting Oven Controls (cont'd) Setting the Warm & Hold Feature pad turns ON the Serve Warm & Hold feature and will maintain an oven temperature of 170°F (77°C). The Warm & Hold feature will keep oven baked foods warm for serving up to 3 hours after cooking has finished. After 3 hours the Warm &...
  • Page 19 Self-Cleaning During the Self-Cleaning cycle, the outside of the range can "" become very hot to the touch. DO NOT ® ® ® ® Oven leave small children unattended near the appliance. ® Boor Locked Oven Lockout The health of some birds is extremely sensitive to the fumes given off during the Self-Cleaning cycle of any range.
  • Page 20 Self-Cleaning (cont'd) Self-Clean Time Length For satisfactory results, use a 2 hour Self-Clean cycle for light soils, a 3 hour cycle for average, and a 4 hour cycle for heavy soils. NOTE: The kitchen area should be well ventilated using an open window, ventilation fan or exhaust hood during the Self-Clean cycle.
  • Page 21 General Care & Cleaning Cleaning Various Parts of Your Range Before cleaning any part of the range, be sure all controls are turned OFF and the range is cool. Remove spillovers heavy soiling as soon as possible. Regular cleanings now will reduce the extent and difficulty of major cleaning later.
  • Page 22 General Care & Cleaning (cont'd) Models with Coil Surface Elements Porcelain Enamel Cooktop Cleaning instructions Do not use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and can chemically damage the cooking surface. Before cleaning the surface cooktop, be sure the controls are turned to OFF and the cooktop is cool.
  • Page 23 General Care & Cleaning (cont'd) Models with Coil Surface Elements (cont'd) To Raise the Top for Cleaning Grasp the sides and lift from the front. A lift-up rod will support the top in its raised position. Only lift the top high enough to allow the support rod to rest in place under the front of the cooktop.
  • Page 24 General Care & Cleaning (cont'd) Models with Ceramic Glass Cooktop (cont'd) Do not use the following on the ceramic glass cooktop: • Do not use abrasive cleaners and scouring pads, such as metal and some nylon pads. They may scratch the cooktop, making it more difficult clean.
  • Page 25 General Care & Cleaning (cont'd) Changing Oven Light Be sure the oven is unplugged and all parts are COOL before replacing the oven light bulb. Do not turn the oven light on during a self-cleaning cycle. High temperature will reduce lamp life. On some models an interior oven light will turn on automatically when the oven is opened.
  • Page 26 Before you call Solutions to Common Problems Before you call for service, review this list. It may save you time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this appliance. OCCURRENCE POSSIBLE CAUSE/SOLUTION...
  • Page 27 Scratches or abrasions Coarse particles such as salt or sand between cooktop and utensils can cause scratches. Be cooktopsurface. sure cooktop surface and bottoms of utensils are clean before usage. Small scratches do not affect cooking and will become less visible with time. Cleaning materials not recommended for ceramic-glass cooktop have been used.
  • Page 28 Your Home For expert troubleshooting and home solutions advice: www.managemyhome.com For repair - in your home - of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories owner's manuals that you need to do-it-yourself.
  • Page 29 ® Electric ange Drop-in models ufa el6ctrica Modelos empotrables Models, Modelos 790.4548_, 790.4549_ = Color number, n0mero de color PIN 318203829 Rev. B (0712) Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com...
  • Page 30 Sears Service ..............Selecting Surface Cooking Cookware ......10 Kenmore Warranty When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to arrange for free repair.
  • Page 31 important Safety instructions Read all instructions before using this appliance. Save these instructions for future reference. This manual contains many important safety messages. Always read and obey all safety messages. The safety symbol _ calls your attention to safety messages that inform you of hazards that can kill or hurt you or others, or cause damage to the product.
  • Page 32 important Safety instructions Wear proper apparelmLoose-fitting or hanging Never leave surface burners unattended at high heat garments should never be worn while using the settings--Boilovers cause smoking and greasy accu- appliance. Do not let clothing or other flammable mulations that may ignite, or a pan that has boiled dry materials contact hot surfaces.
  • Page 33 important Safety instructions SELF-CLEANING OVENS Keep oven vent ducts unobstructed. The oven is vented through the right rear coil element or at right side • In the self=cleaning cycle, only clean the parts listed of the front panel and visible when the oven door is in this Use and Care Guide.
  • Page 34 Enhorabuena por haber hecho una compra intetigente. Su nuevo producto Congratulations on making a smart purchase. Your new Kenmore®esta diseSado y fabricado para brindarle aSos de funcionamiento Kenmore®product is designed and manufactured for years of fiable. Pero, como cualquier producto, puede necesitar mantenimiento dependable operation.
  • Page 35 Range features Electronic Oven Controls Surface Element with Clock and Kitchen Timer Control Knob Your Electric Broil Element Range Vent Features At a glance Light Self-Cleaning (2) adjustable Racks One Piece Door Handle (Style varies with model) Broil Pan Insert Glass Front (some models) Oven Door...
  • Page 36 Setting Surface Controls Models with Coil Surface Elements Setting Surface Controls 1. Place the pan on the surface element. JJJ ..o \ 2. Push in and turn the surface element control knob to desired setting. 3. The surface signal light will glow when one or more elements are turned on. Always turn the element off before removing the pan.
  • Page 37 Setting Surface Controls (cont'd) iVlodels with Ceramic Glass Cooktop (cont'd) Radiant Surface Cooking Settings surface elements may appear to have cooled after Use the chart (Figure 1) to determine the correct setting for the kind of food you are they have been turned off. A preparing.
  • Page 38 Setting Surface Controls (cont'd) Models with Ceramic Glass Cooktop (cont'd) Operating the Dual Surface Radiant Element The cooktop is equipped with a dual radiant surface element located at the right front (See Figure 4) position. "Single and Dual" on the control knob are used to indicate which coil of the dual radiant element will heat.
  • Page 39 Before Setting Oven Controls i I__iThis range has afan that willturn "ON" and "OFF" by itselfto keeptheelectronicscool, it maycontinue to run after the range has been turned "OFF", but may also stop immediately and then turn "ON" after a while. Oven Vent Location =Models Oven Vent Location =Models with Removing and Replacing Oven...
  • Page 40 Control Pad Functions Note: The appearance of your oven control may differ slightly from the one illustrated below. However, all functions are the same. Also, push buttons or pads may be shaped differently than those appearing in this Use and Care Guide. READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN.
  • Page 41 Setting Oven Controls Note: The time of day must first be set in order to operate the oven. To Set the Clock When the range is first plugged in, or when the power supply to the range has been interrupted, the display will flash "12:00".
  • Page 42 Setting Oven Controls (cont'd) To Set or Change the Temperature for Baking The oven can be programmed to bake at any temperature from 170°F to 550°F (77°C to 287°C). To Set the Controls for Baking: Press "------" appears in the display. Within 5 seconds, press the j_ or V.
  • Page 43 Setting Oven Controls (cont'd) To Set the Timed Bake and Delay Start Features The _ COOK TiME and _ DELAY START pads operate the features that will turn the oven ON and OFF at the times you select in advance, The oven can be programmed to start immediately and shut off automatically (Timed Bake) or to begin baking at a later time with a delayed start time (Delay Start), To Program the Oven to Begin Baking Immediately and To Shut Off Automatically (Timed Bake):...
  • Page 44 Setting Oven Controls (cont'd) Oven Baking information For best results, preheat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need to preheat the oven for roasting meat or baking casseroles. The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance. Refer to "Adjusting the Oven Temperature"...
  • Page 45 Setting Oven Controls (cont'd) To Set for Broiling: Some Models Note: For optimum browning results when broiling, preheat the broil element for 3 to 4 minutes. Arrange the oven rack while oven is still cool. Position the rack as suggested in the Broil Rack Position Table below.
  • Page 46 Setting Oven Controls (cont'd) Setting the Warm & Hold Feature pad turns ON the Serve Warm & Hold feature and will maintain an oven temperature of 170°F (77°C). The Warm & Hold feature will keep oven baked foods warm for serving up to 3 hours after cooking has finished. After 3 hours the Warm &...
  • Page 47 Self-Cleaning During the Self-Cleaning cycle, the outside of the range can "" become very hot to the touch. DO NOT ® ® ® ® Oven leave small children unattended near the appliance. ® Boor Locked Oven Lockout The health of some birds is extremely sensitive to the fumes given off during the Self-Cleaning cycle of any range.
  • Page 48 Self-Cleaning (cont'd) Self-Clean Time Length For satisfactory results, use a 2 hour Self-Clean cycle for light soils, a 3 hour cycle for average, and a 4 hour cycle for heavy soils. NOTE: The kitchen area should be well ventilated using an open window, ventilation fan or exhaust hood during the Self-Clean cycle.
  • Page 49 General Care & Cleaning Cleaning Various Parts of Your Range Before cleaning any part of the range, be sure all controls are turned OFF and the range is cool. Remove spillovers heavy soiling as soon as possible. Regular cleanings now will reduce the extent and difficulty of major cleaning later.
  • Page 50 General Care & Cleaning (cont'd) Models with Coil Surface Elements Porcelain Enamel Cooktop Cleaning instructions Do not use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and can chemically damage the cooking surface. Before cleaning the surface cooktop, be sure the controls are turned to OFF and the cooktop is cool.
  • Page 51 General Care & Cleaning (cont'd) Models with Coil Surface Elements (cont'd) To Raise the Top for Cleaning Grasp the sides and lift from the front. A lift-up rod will support the top in its raised position. Only lift the top high enough to allow the support rod to rest in place under the front of the cooktop.
  • Page 52 General Care & Cleaning (cont'd) Models with Ceramic Glass Cooktop (cont'd) Do not use the following on the ceramic glass cooktop: • Do not use abrasive cleaners and scouring pads, such as metal and some nylon pads. They may scratch the cooktop, making it more difficult clean.
  • Page 53 General Care & Cleaning (cont'd) Changing Oven Light Be sure the oven is unplugged and all parts are COOL before replacing the oven light bulb. Do not turn the oven light on during a self-cleaning cycle. High temperature will reduce lamp life. On some models an interior oven light will turn on automatically when the oven is opened.
  • Page 54 Before you call Solutions to Common Problems Before you call for service, review this list. It may save you time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this appliance. OCCURRENCE POSSIBLE CAUSE/SOLUTION...
  • Page 55 Scratches or abrasions Coarse particles such as salt or sand between cooktop and utensils can cause scratches. Be cooktopsurface. sure cooktop surface and bottoms of utensils are clean before usage. Small scratches do not affect cooking and will become less visible with time. Cleaning materials not recommended for ceramic-glass cooktop have been used.
  • Page 56 Your Home For expert troubleshooting and home solutions advice: www.managemyhome.com For repair - in your home - of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories owner's manuals that you need to do-it-yourself.
  • Page 57 ® Electric ange Drop-in models ufa el6ctrica Modelos empotrables Models, Modelos 790.4548_, 790.4549_ = Color number, n0mero de color PIN 318203829 Rev. B (0712) Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com...
  • Page 58 Sears Service ..............Selecting Surface Cooking Cookware ......10 Kenmore Warranty When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to arrange for free repair.
  • Page 59 important Safety instructions Read all instructions before using this appliance. Save these instructions for future reference. This manual contains many important safety messages. Always read and obey all safety messages. The safety symbol _ calls your attention to safety messages that inform you of hazards that can kill or hurt you or others, or cause damage to the product.
  • Page 60 important Safety instructions Wear proper apparelmLoose-fitting or hanging Never leave surface burners unattended at high heat garments should never be worn while using the settings--Boilovers cause smoking and greasy accu- appliance. Do not let clothing or other flammable mulations that may ignite, or a pan that has boiled dry materials contact hot surfaces.
  • Page 61 important Safety instructions SELF-CLEANING OVENS Keep oven vent ducts unobstructed. The oven is vented through the right rear coil element or at right side • In the self=cleaning cycle, only clean the parts listed of the front panel and visible when the oven door is in this Use and Care Guide.
  • Page 62 Enhorabuena por haber hecho una compra intetigente. Su nuevo producto Congratulations on making a smart purchase. Your new Kenmore®esta diseSado y fabricado para brindarle aSos de funcionamiento Kenmore®product is designed and manufactured for years of fiable. Pero, como cualquier producto, puede necesitar mantenimiento dependable operation.
  • Page 63 Range features Electronic Oven Controls Surface Element with Clock and Kitchen Timer Control Knob Your Electric Broil Element Range Vent Features At a glance Light Self-Cleaning (2) adjustable Racks One Piece Door Handle (Style varies with model) Broil Pan Insert Glass Front (some models) Oven Door...
  • Page 64 Setting Surface Controls Models with Coil Surface Elements Setting Surface Controls 1. Place the pan on the surface element. JJJ ..o \ 2. Push in and turn the surface element control knob to desired setting. 3. The surface signal light will glow when one or more elements are turned on. Always turn the element off before removing the pan.
  • Page 65 Setting Surface Controls (cont'd) iVlodels with Ceramic Glass Cooktop (cont'd) Radiant Surface Cooking Settings surface elements may appear to have cooled after Use the chart (Figure 1) to determine the correct setting for the kind of food you are they have been turned off. A preparing.
  • Page 66 Setting Surface Controls (cont'd) Models with Ceramic Glass Cooktop (cont'd) Operating the Dual Surface Radiant Element The cooktop is equipped with a dual radiant surface element located at the right front (See Figure 4) position. "Single and Dual" on the control knob are used to indicate which coil of the dual radiant element will heat.
  • Page 67 Before Setting Oven Controls i I__iThis range has afan that willturn "ON" and "OFF" by itselfto keeptheelectronicscool, it maycontinue to run after the range has been turned "OFF", but may also stop immediately and then turn "ON" after a while. Oven Vent Location =Models Oven Vent Location =Models with Removing and Replacing Oven...
  • Page 68 Control Pad Functions Note: The appearance of your oven control may differ slightly from the one illustrated below. However, all functions are the same. Also, push buttons or pads may be shaped differently than those appearing in this Use and Care Guide. READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN.
  • Page 69 Setting Oven Controls Note: The time of day must first be set in order to operate the oven. To Set the Clock When the range is first plugged in, or when the power supply to the range has been interrupted, the display will flash "12:00".
  • Page 70 Setting Oven Controls (cont'd) To Set or Change the Temperature for Baking The oven can be programmed to bake at any temperature from 170°F to 550°F (77°C to 287°C). To Set the Controls for Baking: Press "------" appears in the display. Within 5 seconds, press the j_ or V.
  • Page 71 Setting Oven Controls (cont'd) To Set the Timed Bake and Delay Start Features The _ COOK TiME and _ DELAY START pads operate the features that will turn the oven ON and OFF at the times you select in advance, The oven can be programmed to start immediately and shut off automatically (Timed Bake) or to begin baking at a later time with a delayed start time (Delay Start), To Program the Oven to Begin Baking Immediately and To Shut Off Automatically (Timed Bake):...
  • Page 72 Setting Oven Controls (cont'd) Oven Baking information For best results, preheat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need to preheat the oven for roasting meat or baking casseroles. The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance. Refer to "Adjusting the Oven Temperature"...
  • Page 73 Setting Oven Controls (cont'd) To Set for Broiling: Some Models Note: For optimum browning results when broiling, preheat the broil element for 3 to 4 minutes. Arrange the oven rack while oven is still cool. Position the rack as suggested in the Broil Rack Position Table below.
  • Page 74 Setting Oven Controls (cont'd) Setting the Warm & Hold Feature pad turns ON the Serve Warm & Hold feature and will maintain an oven temperature of 170°F (77°C). The Warm & Hold feature will keep oven baked foods warm for serving up to 3 hours after cooking has finished. After 3 hours the Warm &...
  • Page 75 Self-Cleaning During the Self-Cleaning cycle, the outside of the range can "" become very hot to the touch. DO NOT ® ® ® ® Oven leave small children unattended near the appliance. ® Boor Locked Oven Lockout The health of some birds is extremely sensitive to the fumes given off during the Self-Cleaning cycle of any range.
  • Page 76 Self-Cleaning (cont'd) Self-Clean Time Length For satisfactory results, use a 2 hour Self-Clean cycle for light soils, a 3 hour cycle for average, and a 4 hour cycle for heavy soils. NOTE: The kitchen area should be well ventilated using an open window, ventilation fan or exhaust hood during the Self-Clean cycle.
  • Page 77 General Care & Cleaning Cleaning Various Parts of Your Range Before cleaning any part of the range, be sure all controls are turned OFF and the range is cool. Remove spillovers heavy soiling as soon as possible. Regular cleanings now will reduce the extent and difficulty of major cleaning later.
  • Page 78 General Care & Cleaning (cont'd) Models with Coil Surface Elements Porcelain Enamel Cooktop Cleaning instructions Do not use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and can chemically damage the cooking surface. Before cleaning the surface cooktop, be sure the controls are turned to OFF and the cooktop is cool.
  • Page 79 General Care & Cleaning (cont'd) Models with Coil Surface Elements (cont'd) To Raise the Top for Cleaning Grasp the sides and lift from the front. A lift-up rod will support the top in its raised position. Only lift the top high enough to allow the support rod to rest in place under the front of the cooktop.
  • Page 80 General Care & Cleaning (cont'd) Models with Ceramic Glass Cooktop (cont'd) Do not use the following on the ceramic glass cooktop: • Do not use abrasive cleaners and scouring pads, such as metal and some nylon pads. They may scratch the cooktop, making it more difficult clean.
  • Page 81 General Care & Cleaning (cont'd) Changing Oven Light Be sure the oven is unplugged and all parts are COOL before replacing the oven light bulb. Do not turn the oven light on during a self-cleaning cycle. High temperature will reduce lamp life. On some models an interior oven light will turn on automatically when the oven is opened.
  • Page 82 Before you call Solutions to Common Problems Before you call for service, review this list. It may save you time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this appliance. OCCURRENCE POSSIBLE CAUSE/SOLUTION...
  • Page 83 Scratches or abrasions Coarse particles such as salt or sand between cooktop and utensils can cause scratches. Be cooktopsurface. sure cooktop surface and bottoms of utensils are clean before usage. Small scratches do not affect cooking and will become less visible with time. Cleaning materials not recommended for ceramic-glass cooktop have been used.
  • Page 84 Your Home For expert troubleshooting and home solutions advice: www.managemyhome.com For repair - in your home - of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories owner's manuals that you need to do-it-yourself.
  • Page 85 ® Electric ange Drop-in models ufa el6ctrica Modelos empotrables Models, Modelos 790.4548_, 790.4549_ = Color number, n0mero de color PIN 318203829 Rev. B (0712) Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com...
  • Page 86 Sears Service ..............Selecting Surface Cooking Cookware ......10 Kenmore Warranty When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to arrange for free repair.
  • Page 87 important Safety instructions Read all instructions before using this appliance. Save these instructions for future reference. This manual contains many important safety messages. Always read and obey all safety messages. The safety symbol _ calls your attention to safety messages that inform you of hazards that can kill or hurt you or others, or cause damage to the product.
  • Page 88 important Safety instructions Wear proper apparelmLoose-fitting or hanging Never leave surface burners unattended at high heat garments should never be worn while using the settings--Boilovers cause smoking and greasy accu- appliance. Do not let clothing or other flammable mulations that may ignite, or a pan that has boiled dry materials contact hot surfaces.
  • Page 89 important Safety instructions SELF-CLEANING OVENS Keep oven vent ducts unobstructed. The oven is vented through the right rear coil element or at right side • In the self=cleaning cycle, only clean the parts listed of the front panel and visible when the oven door is in this Use and Care Guide.
  • Page 90 Enhorabuena por haber hecho una compra intetigente. Su nuevo producto Congratulations on making a smart purchase. Your new Kenmore®esta diseSado y fabricado para brindarle aSos de funcionamiento Kenmore®product is designed and manufactured for years of fiable. Pero, como cualquier producto, puede necesitar mantenimiento dependable operation.
  • Page 91 Range features Electronic Oven Controls Surface Element with Clock and Kitchen Timer Control Knob Your Electric Broil Element Range Vent Features At a glance Light Self-Cleaning (2) adjustable Racks One Piece Door Handle (Style varies with model) Broil Pan Insert Glass Front (some models) Oven Door...
  • Page 92 Setting Surface Controls Models with Coil Surface Elements Setting Surface Controls 1. Place the pan on the surface element. JJJ ..o \ 2. Push in and turn the surface element control knob to desired setting. 3. The surface signal light will glow when one or more elements are turned on. Always turn the element off before removing the pan.
  • Page 93 Setting Surface Controls (cont'd) iVlodels with Ceramic Glass Cooktop (cont'd) Radiant Surface Cooking Settings surface elements may appear to have cooled after Use the chart (Figure 1) to determine the correct setting for the kind of food you are they have been turned off. A preparing.
  • Page 94 Setting Surface Controls (cont'd) Models with Ceramic Glass Cooktop (cont'd) Operating the Dual Surface Radiant Element The cooktop is equipped with a dual radiant surface element located at the right front (See Figure 4) position. "Single and Dual" on the control knob are used to indicate which coil of the dual radiant element will heat.
  • Page 95 Before Setting Oven Controls i I__iThis range has afan that willturn "ON" and "OFF" by itselfto keeptheelectronicscool, it maycontinue to run after the range has been turned "OFF", but may also stop immediately and then turn "ON" after a while. Oven Vent Location =Models Oven Vent Location =Models with Removing and Replacing Oven...
  • Page 96 Control Pad Functions Note: The appearance of your oven control may differ slightly from the one illustrated below. However, all functions are the same. Also, push buttons or pads may be shaped differently than those appearing in this Use and Care Guide. READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN.
  • Page 97 Setting Oven Controls Note: The time of day must first be set in order to operate the oven. To Set the Clock When the range is first plugged in, or when the power supply to the range has been interrupted, the display will flash "12:00".
  • Page 98 Setting Oven Controls (cont'd) To Set or Change the Temperature for Baking The oven can be programmed to bake at any temperature from 170°F to 550°F (77°C to 287°C). To Set the Controls for Baking: Press "------" appears in the display. Within 5 seconds, press the j_ or V.
  • Page 99 Setting Oven Controls (cont'd) To Set the Timed Bake and Delay Start Features The _ COOK TiME and _ DELAY START pads operate the features that will turn the oven ON and OFF at the times you select in advance, The oven can be programmed to start immediately and shut off automatically (Timed Bake) or to begin baking at a later time with a delayed start time (Delay Start), To Program the Oven to Begin Baking Immediately and To Shut Off Automatically (Timed Bake):...
  • Page 100 Setting Oven Controls (cont'd) Oven Baking information For best results, preheat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need to preheat the oven for roasting meat or baking casseroles. The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance. Refer to "Adjusting the Oven Temperature"...
  • Page 101 Setting Oven Controls (cont'd) To Set for Broiling: Some Models Note: For optimum browning results when broiling, preheat the broil element for 3 to 4 minutes. Arrange the oven rack while oven is still cool. Position the rack as suggested in the Broil Rack Position Table below.
  • Page 102 Setting Oven Controls (cont'd) Setting the Warm & Hold Feature pad turns ON the Serve Warm & Hold feature and will maintain an oven temperature of 170°F (77°C). The Warm & Hold feature will keep oven baked foods warm for serving up to 3 hours after cooking has finished. After 3 hours the Warm &...
  • Page 103 Self-Cleaning During the Self-Cleaning cycle, the outside of the range can "" become very hot to the touch. DO NOT ® ® ® ® Oven leave small children unattended near the appliance. ® Boor Locked Oven Lockout The health of some birds is extremely sensitive to the fumes given off during the Self-Cleaning cycle of any range.
  • Page 104 Self-Cleaning (cont'd) Self-Clean Time Length For satisfactory results, use a 2 hour Self-Clean cycle for light soils, a 3 hour cycle for average, and a 4 hour cycle for heavy soils. NOTE: The kitchen area should be well ventilated using an open window, ventilation fan or exhaust hood during the Self-Clean cycle.
  • Page 105 General Care & Cleaning Cleaning Various Parts of Your Range Before cleaning any part of the range, be sure all controls are turned OFF and the range is cool. Remove spillovers heavy soiling as soon as possible. Regular cleanings now will reduce the extent and difficulty of major cleaning later.
  • Page 106 General Care & Cleaning (cont'd) Models with Coil Surface Elements Porcelain Enamel Cooktop Cleaning instructions Do not use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and can chemically damage the cooking surface. Before cleaning the surface cooktop, be sure the controls are turned to OFF and the cooktop is cool.
  • Page 107 General Care & Cleaning (cont'd) Models with Coil Surface Elements (cont'd) To Raise the Top for Cleaning Grasp the sides and lift from the front. A lift-up rod will support the top in its raised position. Only lift the top high enough to allow the support rod to rest in place under the front of the cooktop.
  • Page 108 General Care & Cleaning (cont'd) Models with Ceramic Glass Cooktop (cont'd) Do not use the following on the ceramic glass cooktop: • Do not use abrasive cleaners and scouring pads, such as metal and some nylon pads. They may scratch the cooktop, making it more difficult clean.
  • Page 109 General Care & Cleaning (cont'd) Changing Oven Light Be sure the oven is unplugged and all parts are COOL before replacing the oven light bulb. Do not turn the oven light on during a self-cleaning cycle. High temperature will reduce lamp life. On some models an interior oven light will turn on automatically when the oven is opened.
  • Page 110 Before you call Solutions to Common Problems Before you call for service, review this list. It may save you time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this appliance. OCCURRENCE POSSIBLE CAUSE/SOLUTION...
  • Page 111 Scratches or abrasions Coarse particles such as salt or sand between cooktop and utensils can cause scratches. Be cooktopsurface. sure cooktop surface and bottoms of utensils are clean before usage. Small scratches do not affect cooking and will become less visible with time. Cleaning materials not recommended for ceramic-glass cooktop have been used.
  • Page 112 Your Home For expert troubleshooting and home solutions advice: www.managemyhome.com For repair - in your home - of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories owner's manuals that you need to do-it-yourself.
  • Page 113 ® Electric ange Drop-in models ufa el6ctrica Modelos empotrables Models, Modelos 790.4548_, 790.4549_ = Color number, n0mero de color PIN 318203829 Rev. B (0712) Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com...

  • Page 114: Table Of Contents

    Sears Service ..............Selecting Surface Cooking Cookware ......10 Kenmore Warranty When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to arrange for free repair.

  • Page 115: Important Safety Instructions

    important Safety instructions Read all instructions before using this appliance. Save these instructions for future reference. This manual contains many important safety messages. Always read and obey all safety messages. The safety symbol _ calls your attention to safety messages that inform you of hazards that can kill or hurt you or others, or cause damage to the product.
  • Page 116 important Safety instructions Wear proper apparelmLoose-fitting or hanging Never leave surface burners unattended at high heat garments should never be worn while using the settings--Boilovers cause smoking and greasy accu- appliance. Do not let clothing or other flammable mulations that may ignite, or a pan that has boiled dry materials contact hot surfaces.
  • Page 117 important Safety instructions SELF-CLEANING OVENS Keep oven vent ducts unobstructed. The oven is vented through the right rear coil element or at right side • In the self=cleaning cycle, only clean the parts listed of the front panel and visible when the oven door is in this Use and Care Guide.

  • Page 118: Protection Agreements

    Enhorabuena por haber hecho una compra intetigente. Su nuevo producto Congratulations on making a smart purchase. Your new Kenmore®esta diseSado y fabricado para brindarle aSos de funcionamiento Kenmore®product is designed and manufactured for years of fiable. Pero, como cualquier producto, puede necesitar mantenimiento dependable operation.

  • Page 119: Range Features

    Range features Electronic Oven Controls Surface Element with Clock and Kitchen Timer Control Knob Your Electric Broil Element Range Vent Features At a glance Light Self-Cleaning (2) adjustable Racks One Piece Door Handle (Style varies with model) Broil Pan Insert Glass Front (some models) Oven Door...

  • Page 120: Setting Surface Controls

    Setting Surface Controls Models with Coil Surface Elements Setting Surface Controls 1. Place the pan on the surface element. JJJ ..o \ 2. Push in and turn the surface element control knob to desired setting. 3. The surface signal light will glow when one or more elements are turned on. Always turn the element off before removing the pan.
  • Page 121 Setting Surface Controls (cont'd) iVlodels with Ceramic Glass Cooktop (cont'd) Radiant Surface Cooking Settings surface elements may appear to have cooled after Use the chart (Figure 1) to determine the correct setting for the kind of food you are they have been turned off. A preparing.

  • Page 122: Models With Ceramic Glass Cooktop

    Setting Surface Controls (cont'd) Models with Ceramic Glass Cooktop (cont'd) Operating the Dual Surface Radiant Element The cooktop is equipped with a dual radiant surface element located at the right front (See Figure 4) position. "Single and Dual" on the control knob are used to indicate which coil of the dual radiant element will heat.
  • Page 123 Before Setting Oven Controls i I__iThis range has afan that willturn "ON" and "OFF" by itselfto keeptheelectronicscool, it maycontinue to run after the range has been turned "OFF", but may also stop immediately and then turn "ON" after a while. Oven Vent Location =Models Oven Vent Location =Models with Removing and Replacing Oven...
  • Page 124 Control Pad Functions Note: The appearance of your oven control may differ slightly from the one illustrated below. However, all functions are the same. Also, push buttons or pads may be shaped differently than those appearing in this Use and Care Guide. READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN.
  • Page 125 Setting Oven Controls Note: The time of day must first be set in order to operate the oven. To Set the Clock When the range is first plugged in, or when the power supply to the range has been interrupted, the display will flash "12:00".
  • Page 126 Setting Oven Controls (cont'd) To Set or Change the Temperature for Baking The oven can be programmed to bake at any temperature from 170°F to 550°F (77°C to 287°C). To Set the Controls for Baking: Press "------" appears in the display. Within 5 seconds, press the j_ or V.
  • Page 127 Setting Oven Controls (cont'd) To Set the Timed Bake and Delay Start Features The _ COOK TiME and _ DELAY START pads operate the features that will turn the oven ON and OFF at the times you select in advance, The oven can be programmed to start immediately and shut off automatically (Timed Bake) or to begin baking at a later time with a delayed start time (Delay Start), To Program the Oven to Begin Baking Immediately and To Shut Off Automatically (Timed Bake):...
  • Page 128 Setting Oven Controls (cont'd) Oven Baking information For best results, preheat the oven before baking cookies, breads, cakes, pies or pastries, etc. There is no need to preheat the oven for roasting meat or baking casseroles. The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance. Refer to "Adjusting the Oven Temperature"...
  • Page 129 Setting Oven Controls (cont'd) To Set for Broiling: Some Models Note: For optimum browning results when broiling, preheat the broil element for 3 to 4 minutes. Arrange the oven rack while oven is still cool. Position the rack as suggested in the Broil Rack Position Table below.
  • Page 130 Setting Oven Controls (cont'd) Setting the Warm & Hold Feature pad turns ON the Serve Warm & Hold feature and will maintain an oven temperature of 170°F (77°C). The Warm & Hold feature will keep oven baked foods warm for serving up to 3 hours after cooking has finished. After 3 hours the Warm &...
  • Page 131 Self-Cleaning During the Self-Cleaning cycle, the outside of the range can "" become very hot to the touch. DO NOT ® ® ® ® Oven leave small children unattended near the appliance. ® Boor Locked Oven Lockout The health of some birds is extremely sensitive to the fumes given off during the Self-Cleaning cycle of any range.
  • Page 132 Self-Cleaning (cont'd) Self-Clean Time Length For satisfactory results, use a 2 hour Self-Clean cycle for light soils, a 3 hour cycle for average, and a 4 hour cycle for heavy soils. NOTE: The kitchen area should be well ventilated using an open window, ventilation fan or exhaust hood during the Self-Clean cycle.
  • Page 133 General Care & Cleaning Cleaning Various Parts of Your Range Before cleaning any part of the range, be sure all controls are turned OFF and the range is cool. Remove spillovers heavy soiling as soon as possible. Regular cleanings now will reduce the extent and difficulty of major cleaning later.
  • Page 134 General Care & Cleaning (cont'd) Models with Coil Surface Elements Porcelain Enamel Cooktop Cleaning instructions Do not use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and can chemically damage the cooking surface. Before cleaning the surface cooktop, be sure the controls are turned to OFF and the cooktop is cool.
  • Page 135 General Care & Cleaning (cont'd) Models with Coil Surface Elements (cont'd) To Raise the Top for Cleaning Grasp the sides and lift from the front. A lift-up rod will support the top in its raised position. Only lift the top high enough to allow the support rod to rest in place under the front of the cooktop.
  • Page 136 General Care & Cleaning (cont'd) Models with Ceramic Glass Cooktop (cont'd) Do not use the following on the ceramic glass cooktop: • Do not use abrasive cleaners and scouring pads, such as metal and some nylon pads. They may scratch the cooktop, making it more difficult clean.
  • Page 137 General Care & Cleaning (cont'd) Changing Oven Light Be sure the oven is unplugged and all parts are COOL before replacing the oven light bulb. Do not turn the oven light on during a self-cleaning cycle. High temperature will reduce lamp life. On some models an interior oven light will turn on automatically when the oven is opened.
  • Page 138 Before you call Solutions to Common Problems Before you call for service, review this list. It may save you time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this appliance. OCCURRENCE POSSIBLE CAUSE/SOLUTION...
  • Page 139 Scratches or abrasions Coarse particles such as salt or sand between cooktop and utensils can cause scratches. Be cooktopsurface. sure cooktop surface and bottoms of utensils are clean before usage. Small scratches do not affect cooking and will become less visible with time. Cleaning materials not recommended for ceramic-glass cooktop have been used.
  • Page 140 Your Home For expert troubleshooting and home solutions advice: www.managemyhome.com For repair - in your home - of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories owner's manuals that you need to do-it-yourself.
