Important Safety Instructions; For Models With Self-Clean Feature; Serial Plate Location - Kenmore 79045013100 Installation Instructions Manual

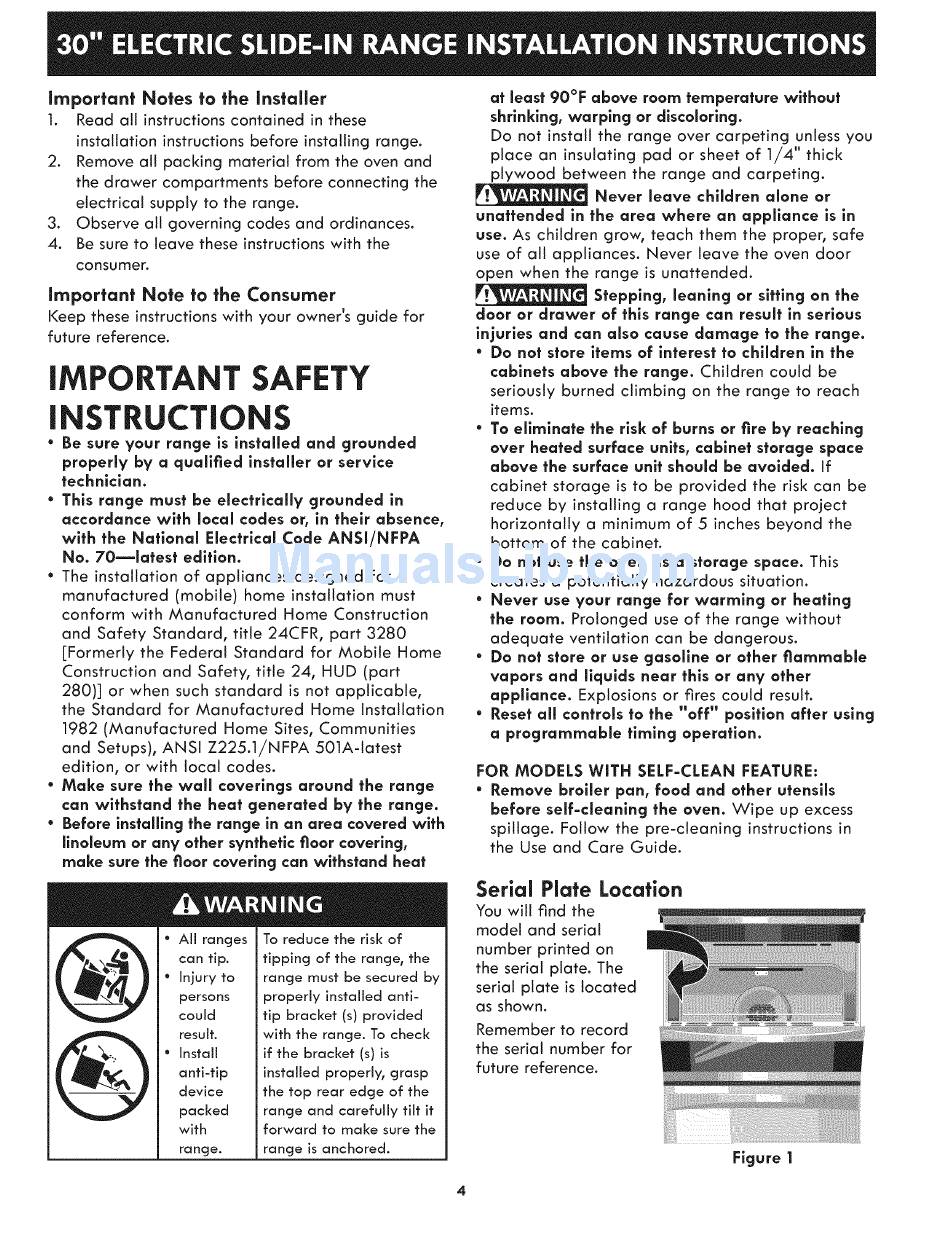

30" slide-in electric range
Hide thumbs

Advertisement

Important
Notes to the installer
1.
Read all instructions contained
in these
installation
instructions
before installing range.
2.
Remove all packing
material
from the oven and
the drawer compartments
before connecting
the
electrical
supply to the range.
3.
Observe all governing
codes and ordinances.
4.
Be sure to leave these instructions with the
consumer.
Important
Note fo the Consumer
Keep these instructions with your owner's guide for
future reference.
iMPORTANT
SAFETY
iNSTRUCTiONS
• Be sure your range is installed and grounded
properly
by a qualified
installer or service
technician.
• This range
must be electrically
grounded
in
accordance
with
local codes or, in their absence,
with the Natlonal
Electrical Code ANSI/NFPA
No. 70--latest
edition.
• The installation
of appliances
designed
for
manufactured
(mobile)
home installation
must
conform
with Manufactured
Home Construction
and Safety
Standard,
title 24CFR, part 3280
[Formerly
the Federal Standard
for Mobile
Home
Construction
and Safety, title 24, HUD (part
280)] or when such standard
is not applicable,
the Standard
for Manufactured
Home Installation
1982 (Manufactured
Home Sites, Communities
and Setups), ANSI Z225.1/NFPA
501A-latest
edition,
or with local codes.
• Make sure the wall
coverings around the range
can withstand
the heat generated
by the range.
• Before installlng the range in an area covered with
linoleum
or any other synthetic floor covering,
make sure the floor covering can withstand heat
° All ranges
can tip.
° Injury to
persons
could
result.
* Install
anti-tip
device
packed
with
range.
To reduce the risk of
tipping
of the range, the
range must be secured by
properly
installed anti-
tip bracket
(s) provided
with the range. To check
if the bracket
(s) is
installed properly,
grasp
the top rear edge of the
range and carefully
tilt it
forward
to make sure the
range is anchored.
at least 90°F above room temperature
without
shrinking,
warping
or dlscoloring.
Do not install the range over carpeting
unless you
place
an insulating
pad or sheet of 1/4" thick
plywood
between
the range and carpeting.
Never
leave children alone or
unattended
in the area where
an appliance
is in
use. As children
grow, teach them the proper,
safe
use of att appliances.
Never leave the oven door
open when the range is unattended.
Stepping, leaning
or sitting
on the
door or drawer
of this range can result in serious
injuries and can also cause damage
to the range.
* Do not store items of interest to children in the
cabinets above
the range. Children
could
be
seriously
burned climbing
on the range to reach
items.
" To eliminate
the risk of burns or fire by reaching
over heated
surface
units, cabinet storage space
above the surface
unit should be avoided.
If
cabinet
storage
is to be provided
the risk can be
reduce
by installing
a range hood that project
horizontally
a minimum
of 5 inches beyond
the
bottom
of the cabinet.
* Do not use the oven as a storage
space. This
creates
a potentially
hazardous
situation.
* Never use your
range for warming
or heating
the room. Prolonged
use of the range without
adequate
ventilation
can be dangerous.
* Do not store or use gasoline
or other flammable
vapors
and llquids
near this or any other
appliance.
Explosions or fires could resutt.
" Reset all controls to the "off"
position after using
a programmable
timing
operation.
FOR MODELS WiTH SELF-CLEAN FEATURE:
* Remove broiler
pan, food and other utenslls
before
self-cieanlng
the oven. Wipe
up excess
spillage.
Follow the pre-cleaning
instructions
in
the Use and Care Guide.
Serial Plate Location
You will find the
model and serial
number printed
on
the serial plate. The
serial plate is located
as shown.
Remember to record
the serial number for
future reference.
Figure 1
