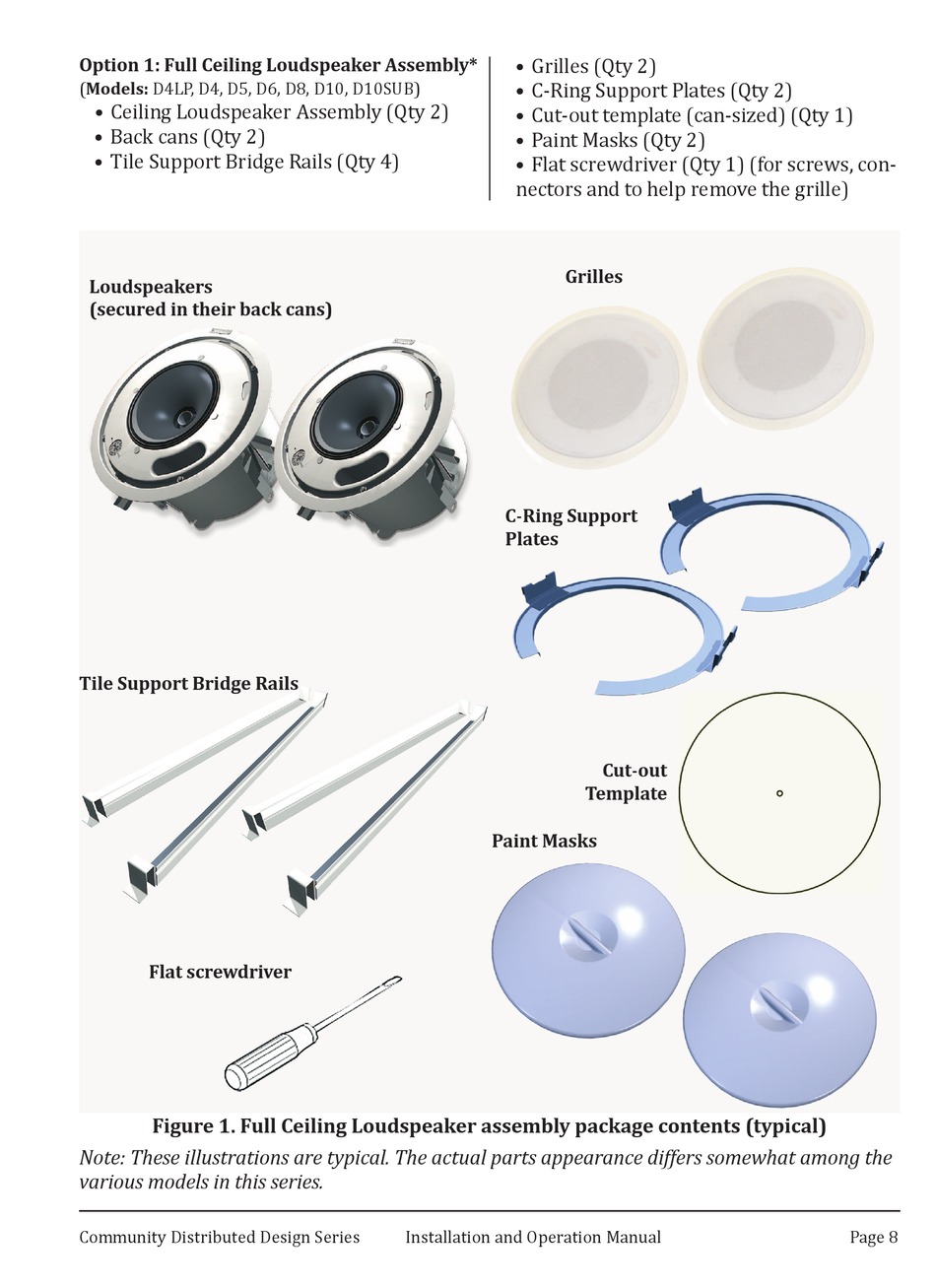

Option 1: Full Ceiling Loudspeaker Assembly; Figure 1 Full Ceiling Loudspeaker Assembly Package Contents (Typical) - Community Distributed Design D4LP Installation And Operation Maintenance Owner's Manual

Distributed design series high-fidelity coaxial ceiling loudspeakers

Table of Contents

(Models: D4LP, D4, D5, D6, D8, D10, D10SUB)

Option 1: Full Ceiling Loudspeaker Assembly*

• Ceiling Loudspeaker Assembly (Qty 2)

• Back cans (Qty 2)

• Tile Support Bridge Rails (Qty 4)

Loudspeakers

(secured in their back cans)

Tile Support Bridge Rails

Flat screwdriver

Note: These illustrations are typical. The actual parts appearance differs somewhat among the

various models in this series.

Community Distributed Design Series

• Grilles (Qty 2)

• C-Ring Support Plates (Qty 2)

• Cut-out template (can-sized) (Qty 1)

• Paint Masks (Qty 2)

• Flat screwdriver (Qty 1) (for screws, con-

nectors and to help remove the grille)

Grilles

C-Ring Support

Plates

Template

Paint Masks

Installation and Operation Manual

Cut-out
