(Models: D4LP-BC, D45-BC, D6-BC, D8-BC, D10-BC)

Option 3: Back Can

• Back cans (Qty 2)
• Tile Support Bridge Rails (Qty 4)
• C-Ring Support Plates (Qty 2)
• Cut-out template (can-sized) (Qty 1)
• Flat screwdriver (Qty 1) (for screws, con-
nectors and to help remove the grille)
Back Cans
Tile Support Bridge Rails
Community Distributed Design Series
Flat screwdriver

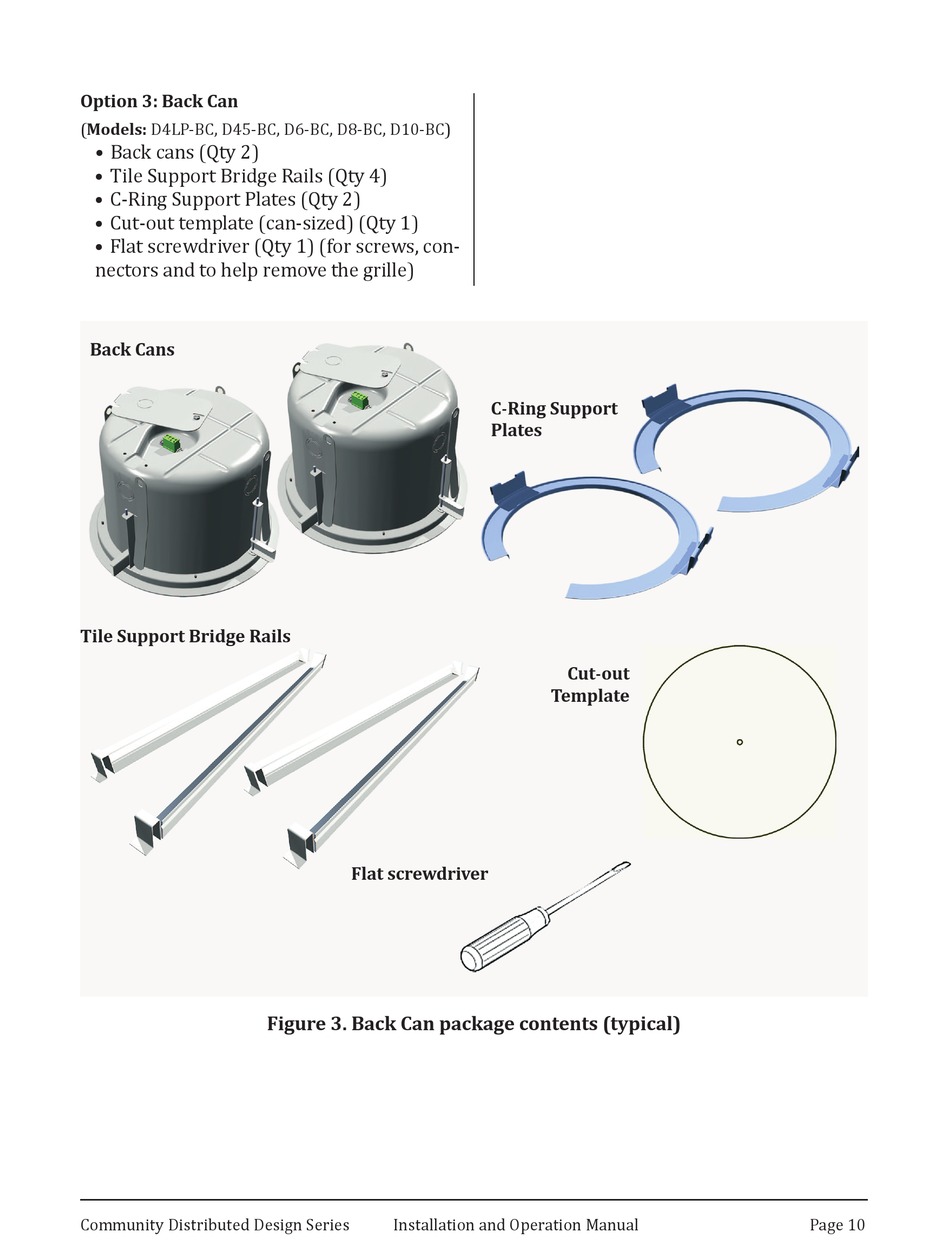

Figure 3 Back Can package contents (typical)

Installation and Operation Manual
C-Ring Support
Plates
Cut-out
Template
