Optional Accessories; Figure 4 Optional Accessories - Community Distributed Design D4LP Installation And Operation Maintenance Owner's Manual

Community offers helpful optional acces-

Optional Accessories

sories that are not included with the basic
packages. Please be sure to order these parts
separately if you need them.
Retrofit rings are available in two types
for various loudspeaker group sizes. The
Face Adapter Ring allows you to place the
Distributed Design loudspeaker alone in a
non-Community made back can. The Can
Adapter/Trim Ring allows you to mount
an entire Distributed Design loudspeaker
assembly with its Community back can in a
larger non-Community back can or to mount
the loudspeaker assembly into an existing
but over-size ceiling cutout hole. If you're
Face Adapter Ring
Ceiling Loudspeaker Packages
4.5" Low Pro. D4LP
Size Assembled
4.5" D4
5" D5
6.5" D6
8" D8
10" D10
10" Subwoofer D10SUB
Note: All sizes are listed. Dashes indicate item not offered. Some models share a common back
can or accessory bracket/ring, as indicated in the chart.
Community Distributed Design Series
Can Adapter/Trim Ring
(without and with screw hole plugs)

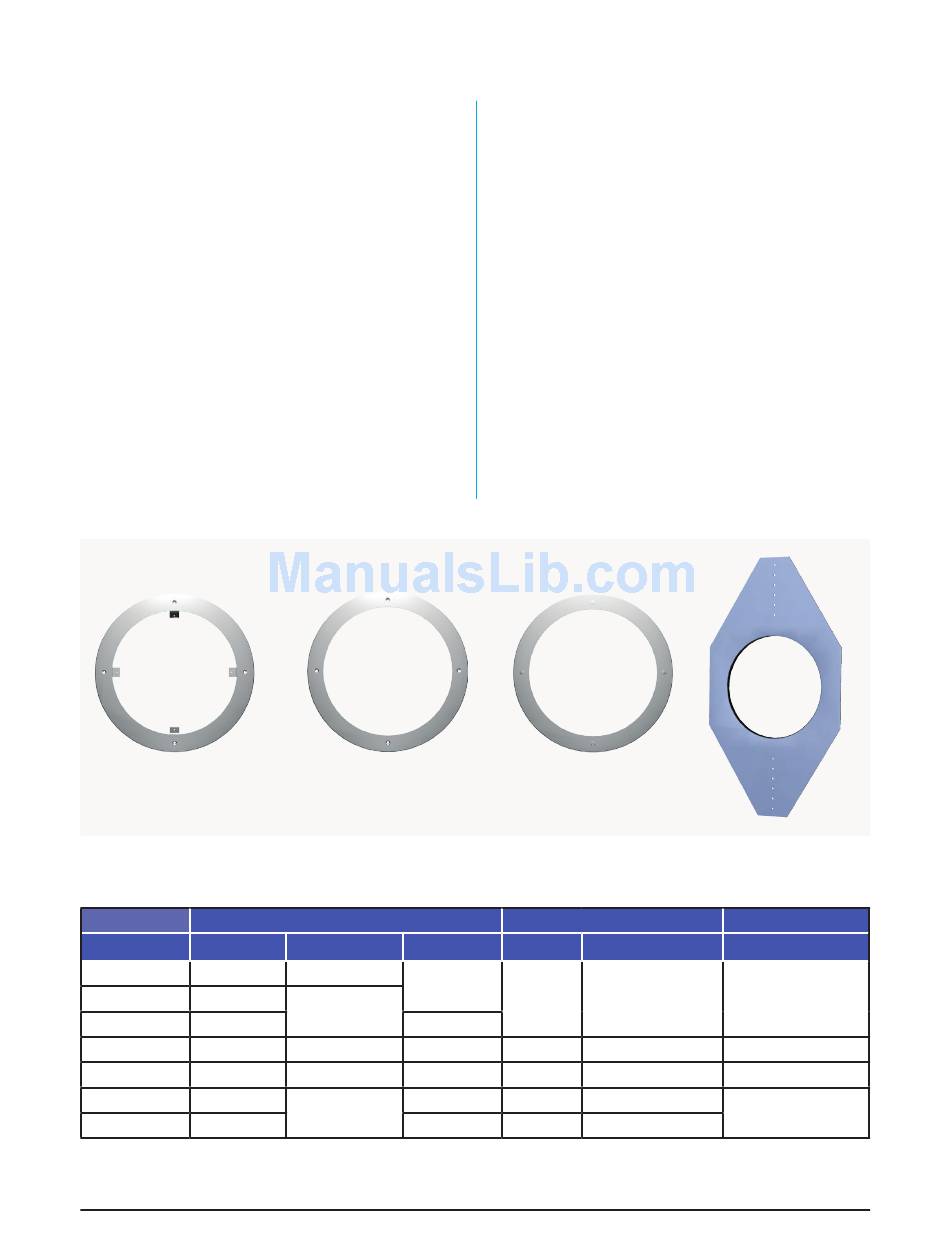

Figure 4 Optional Accessories

D4LP-BC
Back Can Only Face Only
D4-FO
D45-BC
D5-FO
D6-BC D6-FO
D8-BC D8-FO
D10-FO
D10BC
D10SUB-FO
Installation and Operation Manual
performing a retrofit, you will want to order
the type of adapter you need in the size
suitable for the loudspeaker. (These rings
are not offered for the 8 or 10 inch diameter
loudspeakers.) As sugggested by its name,
the Can Adapter ring can be used as a Trim
Ring. When used as a trim ring, white rubber
hole plugs (included) fill the 4 countersink
indents intended for mounting the ring to an
existing larger industry back can
A New Construction Bracket is available for
installing loudspeakers in new construction
before drywall or plaster is put in place. The
drywall typically is cut with a router-type
tool or laser guided cutter in which case the
bracket hole will serve as a cutout guide.
New Construction Bracket
Adapter Rings
Face Can Adapter/Trim
D45-FAR D45-CATR
D6-FAR D6-CATR
– –
– –
– –
Brackets
New Construction
D45-NCB
D6-NCB
D8-NCB
D10-NCB
Page 11
