Loudspeaker Tap Setting

You can use a standard #2 or #3 Phillips or a
medium slot-blade screwdriver such (not the
one provided with the loudspeaker kit), or
just press with your thumb firmly, and twist
to adjust the power control dial on the front
face of the loudspeaker baffle. As shown in
Figure 34, you can make any of five different
settings, although the dial has dual calibra-
tions so at first glance it appears to have ten
settings. The 8-ohm position is the same on
both sides and is for a low impedance con-
nection. On the left side of Figure 34's close-
up detail view are the power values for 100-
volt connections, and on the right side the
power values for 70-volt connections. (The
actual power values on this dial will vary
with the model of loudspeaker installed.)
Face-mounted, screwdriver-adjustable
loudspeaker power / voltage setting dial
Community Distributed Design Series
volt distribution scheme as the loudspeaker
may draw excessive power; it corresponds to
the highest power that can be drawn with a
This control makes it very easy and fast to
70-volt source.
balance an installation since there is no need
to drop the loudspeakers out of their back
cans and move wires to different terminals.
Enhanced detail of typical adjustor dial
(Available settings vary with model )

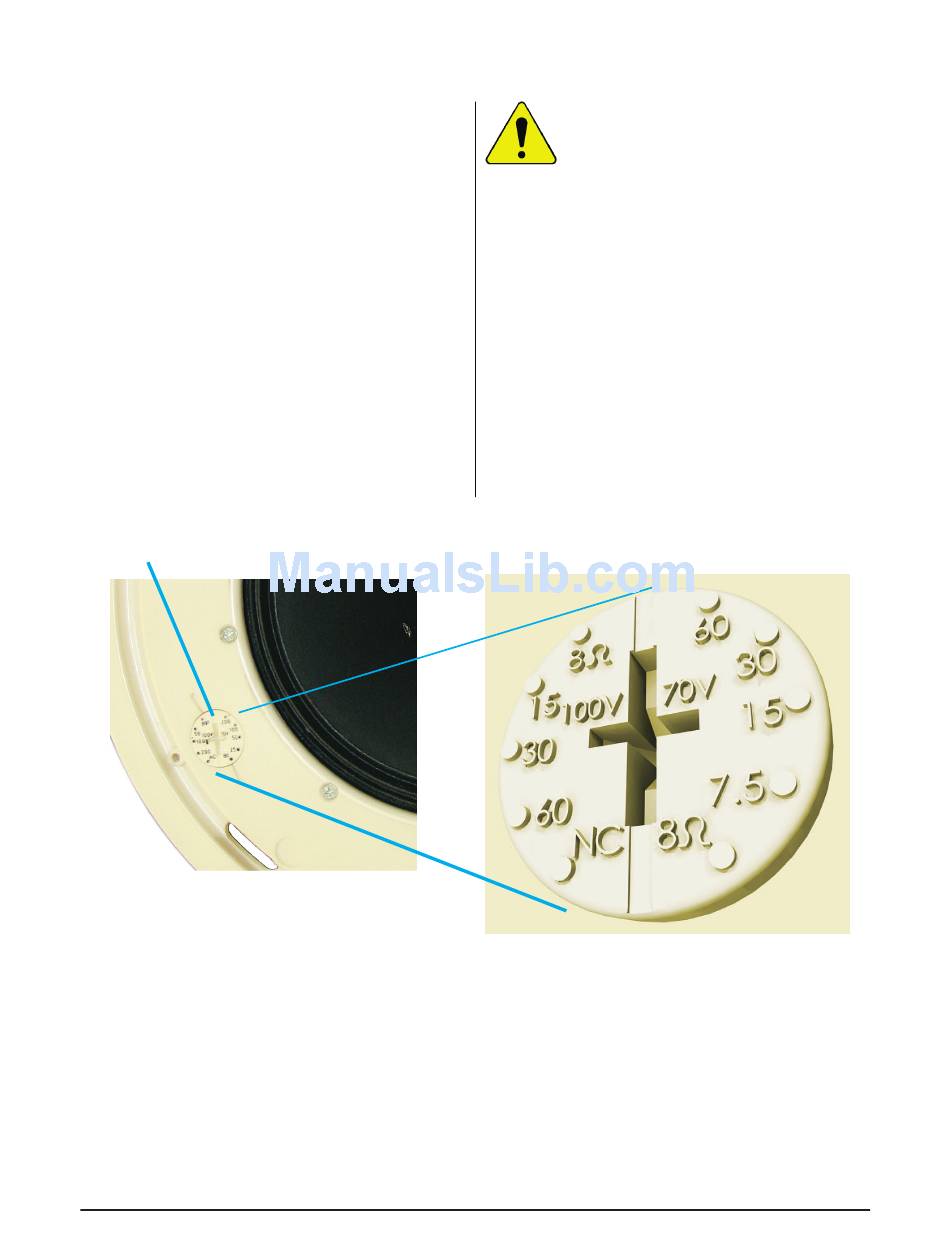

Figure 34 Setting Loudspeaker Tap

Installation and Operation Manual
Note. The letters NC mean "no-
connect" but they do not actually
break a connection. DO NOT USE
this setting if you're using a 100-
