Technical Specifications - EdilKamin Iris Plus Installation & Operation Manual

Technical Specifications (Iris Plus & Little models)
The heatable room dimensions are calculated on the basis
of pellets with a calorific value of at least 20.2Mj/kg and
home insulation in compliance with Nz regulations. It is also
important to consider the location of the pellet fire in the room
heated.
Please note: External electrical devices may cause interference. Work
related to live parts/components, servicing and/or inspections must be
carried out by qualified staff.

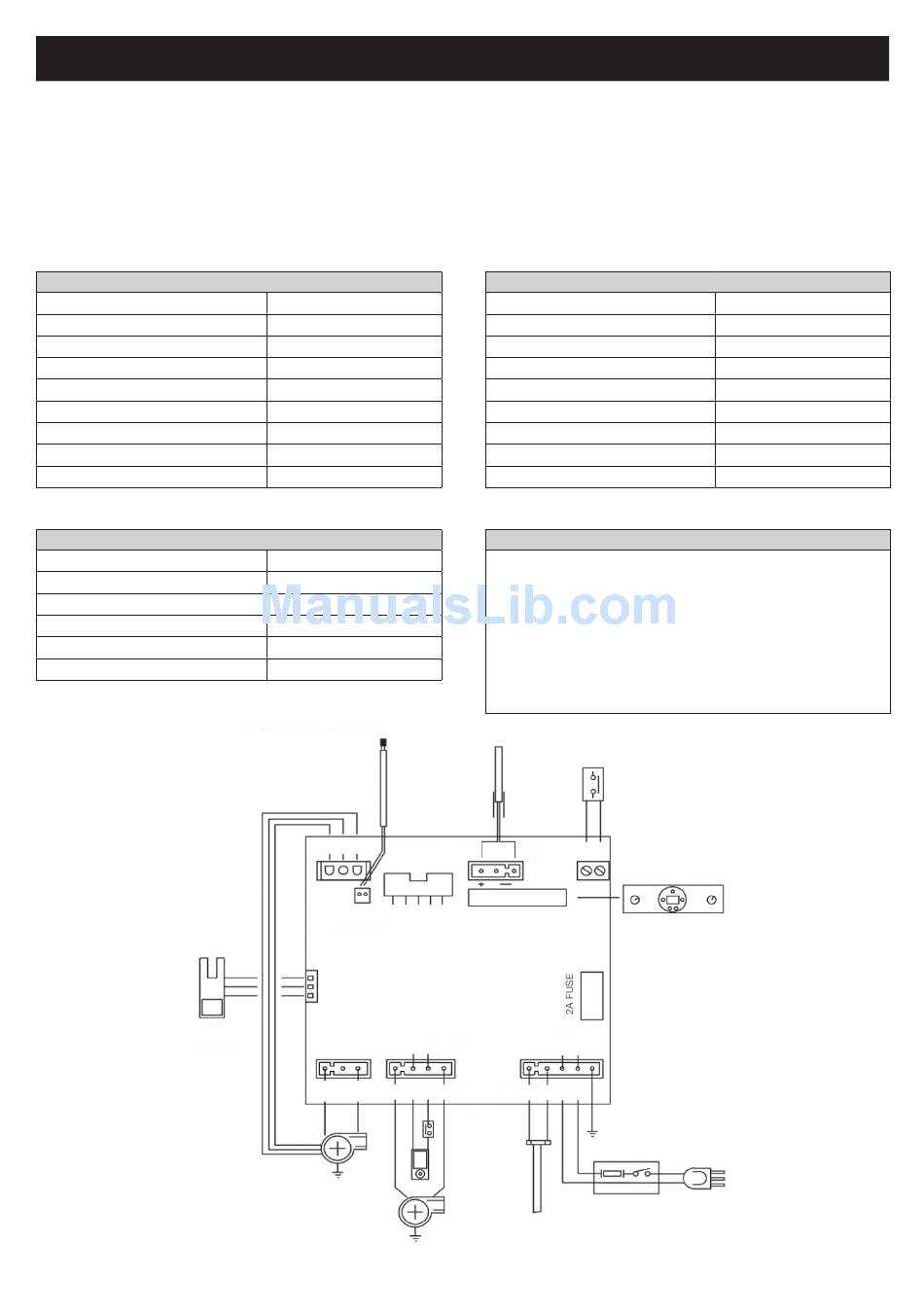

IRIS PLUS (TECHNICAL & HEATING SPECIFICATIONS)
Hopper capacity
Efficiency
Heat Output
Burn time (min/max)
Fuel consumption
Heatable room dimensions
Weight
Smoke duct diameter (male)
Air intake duct diameter (male)
IRIS PLUS & LITTLE MODELS (ELECTRICAL SPECIFICATIONS)
Power supply
0/1 switch
Average power consumption
Power consumption during ignition
Remote control frequency (optional)
Electronic circuit board protection
FLOW
SENSOR
15kg
71%
3.4/8kW
7.5/17 hours
0.9/2.0 kg/h
150m2
140kg
80mm
40mm
230VAC +/-10% 50 Hz
yes
150 W
400 W
infrared
5 x 20 2 A 250 VAC fuse
RS232
SMOKE SPEED
RS485
ROOM
SENSOR
SCREW
FEEDER MOTOR
SMOKE
VENTILATION
EXTRACTION
MOTOR
page 4
Optional extras
•
Remote Control (cod. N. 254160)
It is possible to buy a remote control to turn the pellet fire
on and off and adjust it remotely.
LITTLE (TECHNICAL & HEATING SPECIFICATIONS)
Hopper capacity
Efficiency
Heat Output
Burn time (min/max)
Fuel consumption
Heatable room dimensions (min/max)
Weight
Smoke duct diameter (male)
Air intake duct diameter (male)
IRIS PLUS & LITTLE MODELS (SAFETY DEVICES)
Thermocouple: Placed at the smoke outlet to detect the temperature,
turns the pellet fire on and off and controls its operation based on
defined parameters.
Air flow sensor: Installed at the intake duct, it trips when the
combustion air flow is not correct, causing low pressure problems in the
smoke circuit.
Safety thermostat: Trips when the temperature inside the pellet fire is
too high. It stops pellet loading, causing the pellet fire to shut down.
THERMOCOUPLE
AUX
I/O CONSOLE
P/TEMP
ADJUSTMENT
230V AC MAINS
50Hz +/- 10%
IgNITION HEATINg
ELEMENT
SAFETY
THERMOSTAT
2A FUSE
15kg
73.8%
3.4/5kW
10/30 hours
0.5/1.45 kg/h
120m2
136kg
80mm
40mm
VENTILATION
ADJUSTMENT
