- Page 1 Kramer Electronics, Ltd. USER MANUAL Models: VP-200XLT, XGA Line Amp / CAT 5 Transmitter VP-200XLTHD, XGA Line Amp / CAT 5 Transmitter VP-300T, 1:2 XGA DA/CAT 5 Transmitter VP-5T, 1:4 VGA/UXGA Distributor/CAT 5 Transmitter VP-5THD, 1:4 VGA/UXGA Distributor/CAT 5 Transmitter...
-
Page 2: Table Of Contents
Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors Technical Specifications Figures Figure 1: VP-200XLT XGA Line Amp / CAT 5 Transmitter Figure 2: VP-200XLTHD XGA Line Amp / CAT 5 Transmitter Figure 3: VP-200XLTHD XGA Line Amp / CAT 5 Transmitter... - Page 3 Table 9: VP-5R CAT 5 Receiver / 1:5 VGA/UXGA Distributor (Underside) Features Table 10: CAT 5 PINOUT Table 11: Technical Specifications of the VP-200XLT (with 30m CAT 5 cable) Table 12: Technical Specifications of the VP-200XLTHD (with 30m CAT 5 cable)
-
Page 4: Introduction
GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com 3 With a power adapter 4 With a power cord 5 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... -
Page 5: Quick Start
Getting Started Quick Start This quick start chart summarizes the basic setup and operation steps. KRAMER: SIMPLE CREATIVE TECHNOLOGY... - Page 6 Getting Started Computer Graphics Source VP-5T Local Local Display 1 Display 4 VP-5R* * Located up to 300ft (>100 meters) away from the Computer Graphics Source Display 1 Display 5...
-
Page 7: Overview
Overview Overview This user manual describes the following products: Kramer TOOLS VP-200XLT XGA Line Amp / CAT 5 Transmitter, which accepts one computer graphics input and distributes the signal to its high-density 15 pin “D” connector output, as well as... -
Page 8: Shielded Twisted Pair (Stp) / Unshielded Twisted Pair (Utp)
We recommend that you use shielded twisted pair (STP) cable. There are different levels of STP cable available, and we advise you to use the best quality STP cable that you can afford. Our STP skew-free cable, Kramer BC-SXTP, is intended for transmitting VGA signals. Our non-skew-free cable, Kramer BC-STP, is intended for digital signals. -
Page 9: Your Vp-200Xlt Xga Line Amp / Cat 5 Transmitter

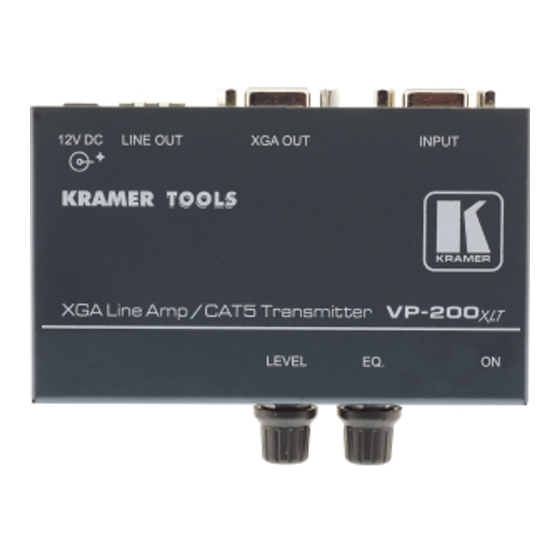

Your VP-200XLT XGA Line Amp / CAT 5 Transmitter Your VP-200XLT XGA Line Amp / CAT 5 Transmitter The VP-200XLT is a high-performance XGA line amp / CAT 5 transmitter that accepts one computer graphics (XGA ) input, provides necessary buffering and isolation, and distributes the signal to its high-density 15 pin “D”... -
Page 10: Vp-200Xlthd Xga Line Amp / Cat 5 Transmitter
VP-200XLTHD XGA Line Amp / CAT 5 Transmitter Table 1: VP-200XLT XGA Line Amp / CAT 5 Transmitter Features Feature Function 12V DC +12V DC connector for powering the unit LINE OUT RJ-45 Connector Connects to the LINE IN RJ-45 connector on the TP-120 XGA Line... -
Page 11: Figure 2: Vp-200Xlthd Xga Line Amp / Cat 5 Transmitter
2 Refer to the separate user manual: PT-110, PT-120, TP-120, WP-110, which can be downloaded from the Internet at this URL: http://www.kramerelectronics.com 3 Insert a screwdriver into the hole and carefully rotate it, to trim the level KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 12: Your Vp-300T 1:2 Xga Da/ Cat 5 Transmitter
Your VP-300T 1:2 XGA DA/ CAT 5 Transmitter Figure 3: VP-200XLTHD XGA Line Amp / CAT 5 Transmitter Table 3: VP-200XLTHD XGA Line Amp / CAT 5 Transmitter Features VS Switch Slide the switch downward to change the VS polarity to negative polarity slide the switch upward to retain the polarity (default) HS Switch Slide the switch downward to change the HS polarity to negative polarity... -
Page 13: Your Vp-300T 1:2 Xga Da/ Cat 5 Transmitter (Underside)
1 Using a UTP CAT 5 cable with RJ-45 connectors at both ends (the PINOUT is defined in Table 10 and Figure 13) 2 Refer to the separate user manual: PT-110, PT-120, TP-120, WP-110, which can be downloaded from the Internet at this URL: http://www.kramerelectronics.com KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 14: Your Vp-5T/Vp-5Thd 1:4 Vga/Uxga Distributor / Cat
Your VP-5T/VP-5THD 1:4 VGA/UXGA Distributor / CAT 5 Transmitter Figure 5: VP-300T 1:2 XGA DA/ CAT 5 Transmitter (Underside) Table 5: VP-300T 1:2 XGA DA/ CAT 5 Transmitter (Underside) Features Feature Function ID Bit Switch Slide to the right to set to ON ;... -
Page 15: Figure 6: Vp-5T/Vp-5Thd 1:4 Vga/Uxga Distributor / Cat 5 Transmitter
Has Hs and Vs polarity switches on its underside Also receives HD signals (high-definition resolutions: 720p, 1080i and 1080p) and SD signals Figure 6 and Table 6 define the VP-5T and VP-5THD: Figure 6: VP-5T/VP-5THD 1:4 VGA/UXGA Distributor / CAT 5 Transmitter KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 16: Your Vp-5T/Vp5Thd (Underside)
Your VP-5T/VP-5THD 1:4 VGA/UXGA Distributor / CAT 5 Transmitter Table 6: VP-5T 1:4 VGA/UXGA Distributor / CAT 5 Transmitter Features Feature Function POWER Switch Illuminated switch for turning the unit ON or OFF EQ. Trimmer Adjusts the video EQ. (equalization) compensation INPUT 15-pin HD Connector Connect to the VGA/UXGA source CAT 5 OUT RJ-45 Connector... -
Page 17: Your Vp-5R Cat 5 Receiver / 1:5 Vga/Uxga Distributor
Is housed in a half 19" enclosure Figure 8 and Table 8 define the VP-5R: 1 The default. Enabling the notebook or laptop to output a VGA signal to an external VGA monitor 2 Downgoing syncs KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 18: Your Vp-5R Cat 5 Receiver / 1:5 Vga/Uxga Distributor (Underside)
Your VP-5R CAT 5 Receiver / 1:5 VGA/UXGA Distributor Figure 8: VP-5R CAT 5 Receiver / 1:5 VGA/UXGA Distributor Table 8: VP-5R CAT 5 Receiver / 1:5 VGA/UXGA Distributor Features Feature Function POWER Switch Illuminated switch for turning the unit ON or OFF LINE INPUT LEVEL Trimmer Adjusts the video input level... -
Page 19: Connecting The Vp-200Xlt
Connecting the VP-200XLT You can use the VP-200XLT and, for example, the TP-120 to configure an XGA Line-to-Twisted Pair Transmitter and Receiver system. To connect the VP-200XLT with the TP-120, as the example in Figure 10 illustrates, do the following: 1. - Page 20 Connecting the VP-200XLT 3. Connect the LINE OUT RJ-45 connector on the VP-200XLT to the LINE IN RJ-45 connector on the TP-120, via UTP cabling (with a range of more than 300ft (more than 100m)), see section 11.1. 4. Connect the 12V DC power adapter to the power socket on the VP-200XLT, and plug the adapter into the mains electricity socket.
-
Page 21: Figure 10: Connecting The Vp-200Xlt
Connecting the VP-200XLT Figure 10: Connecting the VP-200XLT KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 22: Connecting The Vp-300T
Connecting the VP-300T Connecting the VP-300T You can use the VP-300T and, for example, the TP-120 to configure an XGA Line-to-Twisted Pair Transmitter and Receiver system. To connect the VP-300T with the TP-120, as the example in Figure 11 illustrates, do the following: 1. -
Page 23: Figure 11: Connecting The Vp-300T
Connecting the VP-300T Figure 11: Connecting the VP-300T KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 24: Connecting The Vp-5T And The Vp-5R
Connecting the VP-5T/VP-5THD and the VP-5R Connecting the VP-5T/VP-5THD and the VP-5R You can use the VP-5T/VP-5THD 1:4 VGA/UXGA Distributor / CAT 5 Transmitter and the VP-5R CAT 5 Receiver / 1:5 VGA/UXGA Distributor to configure an XGA Line-to-Twisted Pair Transmitter and Receiver system. To connect the VP-5T/VP-5THD with the VP-5R, as the example in Figure 12 illustrates, do the following: 1. - Page 25 Connecting the VP-5T/VP-5THD and the VP-5R Figure 12: Connecting the VP-5T and the VP-5R KRAMER: SIMPLE CREATIVE TECHNOLOGY...
-
Page 26: 11.1 Wiring The Cat 5 Line In / Line Out Rj-45 Connectors
Connecting the VP-5T/VP-5THD and the VP-5R 11.1 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors Table 10 and Figure 13 define the UTP CAT 5 PINOUT, using a straight pin to pin cable with RJ-45 connectors: Figure 13: CAT 5 PINOUT Table 10: CAT 5 PINOUT EIA /TIA 568A EIA /TIA 568B... -
Page 27: Technical Specifications
LEVEL: –1.5dB to +2.5dB (from VP-200XLT) (XGA); –1dB to +2.5dB (from VP-200XLT); –7.7dB to +9dB (from TP-120) (CAT 5) EQ.: 0 to 4.1dB @50MHz (from VP-200XLT) (XGA); 0 to 4dB (from VP-200XLT), 0 to 30.4dB @50MHz (from TP-120) (CAT 5) -
Page 28: Table 13: Technical Specifications Of The Vp-300T (With 30M Cat 5 Cable)
Technical Specifications Table 13: Technical Specifications of the VP-300T (with 30m CAT 5 cable) INPUTS: 1 XGA on an 15-pin HD connector OUTPUTS: 2 XGA on 15-pin HD connectors 1 RJ-45 connector MAX. OUTPUT LEVEL : 1.9Vpp (XGA), 1.3Vpp (CAT 5) BANDWIDTH (-3dB): 439MHz (XGA), 152MHz (CAT 5) DIFF. -
Page 29: Table 15: Technical Specifications Of The Vp-5R (With 30M Cat 5 Cable)
230V AC, 50/60 Hz. (115V AC, U.S.A.) 9.2VA DIMENSIONS: 22cm x 18cm x 4.5cm (8.7” x 7” x 1.7”) W, D, H (half 19”, 1U) WEIGHT: 1.2kg (2.6 lbs) approx. ACCESSORIES: Power cord 1 For the VP-5R to WP-110 SETUP KRAMER: SIMPLE CREATIVE TECHNOLOGY... - Page 31 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
