Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Model: VP-300THD 1:2 XGA/HD DA/CAT5 Transmitter... -
Page 2: Table Of Contents
Figure 5: Connecting the VP-300THD Figure 6: CAT5 PINOUT Tables Table 1: VP-300THD 1:2 XGA/HD DA/CAT5 Transmitter (Top Side Panel) Features Table 2: VP-300THD 1:2 XGA/HD DA/CAT5 Transmitter (Lower Side) Features Table 3: VP-300THD 1:2 XGA/HD DA/CAT5 Transmitter (Underside) Features... -
Page 3: Introduction
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors 2 Download up-to-date Kramer user manuals from our Web site: http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com Introduction... -
Page 4: Shielded Twisted Pair (Stp) / Unshielded Twisted Pair (Utp)
2 The terminology XGA is used throughout this manual, where this implies any RGBHV signal on an HD15 connector having a resolution from VGA up to UXGA 3 The VP-300THD accepts high definition resolutions: 480p, 576p, 720p, 1080i, and 1080p 4 Note that the CAT5 connector excludes audio... -
Page 5: Your Vp-300Thd 1:2 Xga/Hd Da/Cat5 Transmitter

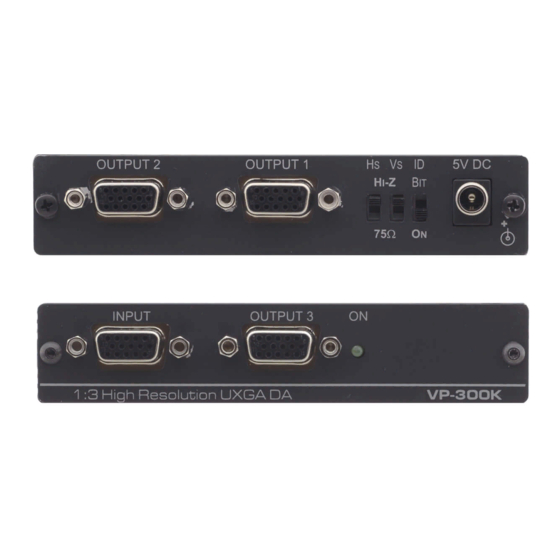

Your VP-300THD 1:2 XGA/HD DA/CAT5 Transmitter Your VP-300THD 1:2 XGA/HD DA/CAT5 Transmitter Figure 1, Figure 2, Figure 3 and Table 2 define the VP-300THD: Figure 1: VP-300THD 1:2 XGA/HD DA/CAT5 Transmitter (Topside) Figure 2: VP-300THD 1:2 XGA/HD DA/CAT5 Transmitter (Top Side Panel) -
Page 6: Figure 3: Vp-300Thd 1:2 Xga/Hd Da/Cat5 Transmitter (Lower Side Panel)
XGA / HD INPUT HD15F Connector Connect to the XGA source ON LED Figure 4 and Table 3 define the underside of the VP-300THD: Figure 4: VP-300THD 1:2 XGA/HD DA/CAT5 Transmitter (Underside) Table 3: VP-300THD 1:2 XGA/HD DA/CAT5 Transmitter (Underside) Features... -
Page 7: Connecting The Vp-300Thd
Connecting the VP-300THD You can use the VP-300THD and, for example, the TP-120 to configure an XGA/HD DA/CAT5 Transmitter and Receiver system. To connect the VP-300THD with the TP-120, as the example in Figure 5 illustrates, do the following: 1. On the VP-300THD 1:2 XGA/HD DA/CAT5 Transmitter, connect the:... -
Page 8: Figure 5: Connecting The Vp-300Thd
Connecting the VP-300THD Figure 5: Connecting the VP-300THD KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 9: Wiring The Cat5 Line In / Line Out Rj-45 Connectors
Pair 2 3 and 6 Pair 2 Pair 3 1 and 2 Pair 3 Pair 4 7 and 8 Pair 4 Connecting the VP-300THD EIA /TIA 568B Wire Color Orange / White Orange Green / White Blue Blue / White Green... -
Page 10: Technical Specifications
Technical Specifications This section includes the technical specifications Table 5: Technical Specifications of the VP-300THD (with 30m CAT5 cable) INPUT: 1 XGA on an HD15 connector OUTPUTS: 2 XGA on HD15 connectors 1 RJ-45 connector MAX. OUTPUT LEVEL : 2.3Vpp (XGA), 1.4Vpp (CAT5) - Page 11 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
