Kramer Electronics, Ltd.
USER MANUAL
Models:
VP-200XLT,
XGA Line Amp / CAT5 Transmitter
VP-200XLTHD,
XGA Line Amp / CAT5 Transmitter
VP-300T,
1:2 XGA DA/CAT5 Transmitter
VP-5T,
1:4 VGA/UXGA Distributor/CAT5 Transmitter
VP-5T(HD),
1:4 VGA/UXGA Distributor/CAT5 Transmitter
VP-5R,
CAT5 Receiver / 1:5 VGA/UXGA Distributor
Advertisement
Table of Contents
Related Manuals for Kramer VP-5R
Summary of Contents for Kramer VP-5R
-
Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Models: VP-200XLT, XGA Line Amp / CAT5 Transmitter VP-200XLTHD, XGA Line Amp / CAT5 Transmitter VP-300T, 1:2 XGA DA/CAT5 Transmitter VP-5T, 1:4 VGA/UXGA Distributor/CAT5 Transmitter VP-5T(HD), 1:4 VGA/UXGA Distributor/CAT5 Transmitter VP-5R, CAT5 Receiver / 1:5 VGA/UXGA Distributor... -
Page 2: Table Of Contents
Figure 6: VP-5T 1:4 VGA/UXGA Distributor / CAT5 Transmitter Figure 7: VP-5T 1:4 VGA/UXGA Distributor / CAT5 Transmitter (Underside) Figure 8: VP-5R CAT5 Receiver / 1:5 VGA/UXGA Distributor Figure 9: VP-5R CAT5 Receiver / 1:5 VGA/UXGA Distributor (Underside) Figure 10: Connecting the VP-200XLT Figure 11: Connecting the VP-300T... - Page 3 Table 7: VP-5T 1:4 VGA/UXGA Distributor / CAT5 Transmitter (Underside) Features 13 Table 8: VP-5R CAT5 Receiver / 1:5 VGA/UXGA Distributor Features Table 9: VP-5R CAT5 Receiver / 1:5 VGA/UXGA Distributor (Underside) Features Table 10: CAT5 PINOUT Table 11: Technical Specifications of the VP-200XLT (with 30m CAT5 cable)
-
Page 4: Introduction
2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com 3 With a power adapter 4 With a power cord 5 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com 6 This quick start also applies to the VP-200XLTHD Introduction , which are clearly defined by function. - Page 5 Getting Started KRAMER: SIMPLE CREATIVE TECHNOLOGY...
- Page 6 Computer Graphics Source Local Local Display 1 Display 4 Display 1 Getting Started VP-5T VP-5R* * Located up to 300ft (>100 meters) away from the Computer Graphics Source Display 5...
-
Page 7: Overview
4 outputs, as well as transmitting it over CAT5 UTP cable to its appropriate receiver, see section 7 Kramer VP-5R CAT5 Receiver / 1:5 VGA/UXGA Distributor, which is a distributor for computer graphics signals, receiving the computer graphics... -
Page 8: Shielded Twisted Pair (Stp) / Unshielded Twisted Pair (Utp)
(often associated with low quality cables) Avoid interference from neighboring electrical appliances and position your Kramer machines away from moisture, excessive sunlight and dust Caution Warning wall adapter that is provided with this unit Warning before installing or removing device or servicing unit. -
Page 9: Figure 1: Vp-200Xlt Xga Line Amp / Cat5 Transmitter
+12V DC connector for powering the unit the LINE IN RJ-45 connector on the TP-120 XGA Line Receiver or the VP-5R CAT5 Receiver / 1:5 VGA/UXGA Distributor Connect to the XGA acceptor Connect to the XGA source Rotate to adjust the output signal level Rotate to adjust the video EQ. -

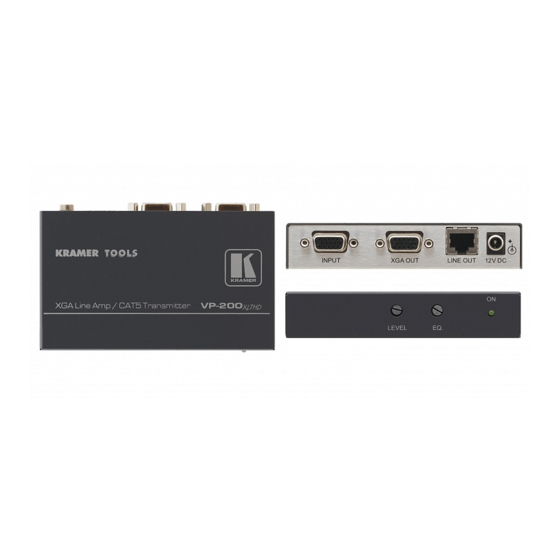

Page 10: Vp-200Xlthd Xga Line Amp / Cat5 Transmitter
15 pin “ D” connector output, as well as transmitting it over UTP CAT5 cable to its appropriate receiver. In particular, the VP-200XLTHD: Can also receive HD signals (high definition resolutions: 480p, 576p, 720p, 1080i and 1080p) Has a transmission range of more than 300 ft. -
Page 11: Figure 3: Vp-200Xlthd Xga Line Amp / Cat5 Transmitter
Function +12V DC connector for powering the unit the LINE IN RJ-45 connector on the TP-120 XGA Line Receiver or the VP-5R CAT5 Receiver / 1:5 VGA/UXGA Distributor Connect to the XGA acceptor Connect to the XGA source Adjust the output signal level Adjust the video EQ. -
Page 12: Your Vp-300T 1:2 Xga Da/ Cat5 Transmitter
2 outputs, as well as transmitting it over UTP CAT5 cable to its appropriate receiver. In particular, the VP-300T has a: Video bandwidth exceeding 430MHz, ensuring transparency even when operating at the highest resolutions Transmission range of more than 300 ft. -
Page 13: Your Vp-300T 1:2 Xga Da/ Cat5 Transmitter (Underside)
+12V DC connector for powering the unit the LINE IN RJ-45 connector on the TP-120 XGA Line Receiver or the VP-5R CAT5 Receiver / 1:5 VGA/UXGA Distributor Illuminates when receiving power Function Slide to the right to set to ON ;... -
Page 14: Your Vp-5T/Vp-5T(Hd) 1:4 Vga/Uxga Distributor / Cat5 Transmitter
The VP-5T is a high performance distributor for computer graphics signals, accepting one input, providing necessary buffering and isolation, and distributing the signal to its identical 4 outputs, as well as transmitting it over UTP CAT5 cable to its appropriate receiver. In particular, the VP-5T: Features front panel EQ. control... -
Page 15: Figure 6: Vp-5T 1:4 Vga/Uxga Distributor / Cat5 Transmitter
EQ. (equalization) compensation Connect to the VGA/UXGA source Connect to the LINE IN RJ-45 connector on the VP-5R CAT5 Receiver / 1:5 VGA/UXGA Distributor Connect to the VGA/UXGA acceptor (from 1 to 4) AC connector enabling power supply to the unit... -
Page 16: Your Vp-5T/Vp5T(Hd) (Underside)
Your VP-5T/VP-5T(HD ) 1:4 VGA/UXGA Distributor / CAT5 Transmitter 7.2 Your VP-5T/VP5T(HD) (Underside) Figure 7 and Table 7 define the underside of the VP-5T/VP-5T(HD) 1:4 VGA/UXGA Distributor / CAT5 Transmitter: Figure 7: VP-5T 1:4 VGA/UXGA Distributor / CAT5 Transmitter (Underside) Table 7: VP-5T 1:4 VGA/UXGA Distributor / CAT5 Transmitter (Underside) Features Feature PIN 11 ID BIT CONTROL Switch Slide to the left to set to ON... -
Page 17: Your Vp-5R Cat5 Receiver / 1:5 Vga/Uxga Distributor
Your VP-5R CAT5 Receiver / 1:5 VGA/UXGA Distributor Your VP-5R CAT5 Receiver / 1:5 VGA/UXGA Distributor This section describes the front and rear panels of the VP-5R CAT5 Receiver / 1:5 VGA/UXGA Distributor (see section 8.1), and the underside (see section 8.2). -
Page 18: Your Vp-5R Cat5 Receiver / 1:5 Vga/Uxga Distributor (Underside)
Power Connector with FUSE 8.2 Your VP-5R CAT5 Receiver / 1:5 VGA/UXGA Distributor (Underside) Figure 9 and Table 9 define the underside of the VP-5R CAT5 Receiver / 1:5 VGA/UXGA Distributor: Figure 9: VP-5R CAT5 Receiver / 1:5 VGA/UXGA Distributor (Underside) -
Page 19: Connecting The Vp-200Xlt
XGA OUT HD15F connector to the acceptor (for example, to a projector) 2. On the TP-120 XGA Line Receiver, connect the XGA OUT HD15F connector to the XGA acceptor (for example, a display). 3. Connect the LINE OUT RJ-45 connector on the VP-200XLT to the LINE IN RJ-45 connector on the TP-120, via UTP cabling (with a range of more than 300ft (more than 100 meters)), see section 11.1. -
Page 20: Figure 10: Connecting The Vp-200Xlt
Connecting the VP-200XLT Figure 10: Connecting the VP-200XLT... -
Page 21: Connecting The Vp-300T
OUTPUT 1 and OUTPUT 2 HD15F connectors to up to acceptors (for example, to a display and to a projector, respectively) 2. On the TP-120 XGA Line Receiver, connect the XGA OUT HD15F connector to the XGA acceptor (for example, a display). -
Page 22: Figure 11: Connecting The Vp-300T
Connecting the VP-300T Figure 11: Connecting the VP-300T... -
Page 23: Connecting The Vp-5T And The Vp-5R
OUTPUT HD15F connectors 1 to 5. 3. Connect the CAT5 OUT RJ-45 connector on the VP-5T to the CAT5 LINE IN RJ-45 connector on the VP-5R, via UTP cabling (with a range of more than 300ft (more than 100 meters)), see section 11.1. -
Page 24: Figure 12: Connecting The Vp-5T And The Vp-5R
Connecting the VP-5T and the VP-5R Figure 12: Connecting the VP-5T and the VP-5R... -
Page 25: Wiring The Cat5 Line In / Line Out Rj-45 Connectors
4 and 5 Pair 2 3 and 6 Pair 3 1 and 2 Pair 4 7 and 8 Connecting the VP-5T and the VP-5R EIA /TIA 568B Wire Color Orange / White Orange Green / White Blue Blue / White... -
Page 26: Technical Specifications
This section includes the technical specifications of the VP-200XLT (see Table 11), VP-200XLTHD (see Table 12), the VP-300T (see Table 13), the VP-5T/VP-5T(HD) (see Table 14), and the VP-5R (see Table 15). Table 11: Technical Specifications of the VP-200XLT (with 30m CAT5 cable) -
Page 27: Table 13: Technical Specifications Of The Vp-300T (With 30M Cat5 Cable)
WEIGHT: 1.2kg (2.6 lbs) approx. ACCESSORIES: Power cord 1 For the VP-300T to TP-120 SETUP 2 For the VP-5T to TP-120 SETUP 3 The HD resolutions apply to the HD version of the machine Technical Specifications KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 28: Table 15: Technical Specifications Of The Vp-5R (With 30M Cat5 Cable)
Table 15: Technical Specifications of the VP-5R (with 30m CAT5 cable) INPUTS: 1 RJ-45 connector OUTPUTS: 5 XGA on HD15 connectors MAX. OUTPUT LEVEL : 1.4Vpp BANDWIDTH (-3dB): 150MHz DIFF. GAIN 3.4% DIFF. PHASE 0.05 Deg K-FACTOR <0.05% S/N RATIO... - Page 29 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 30 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
