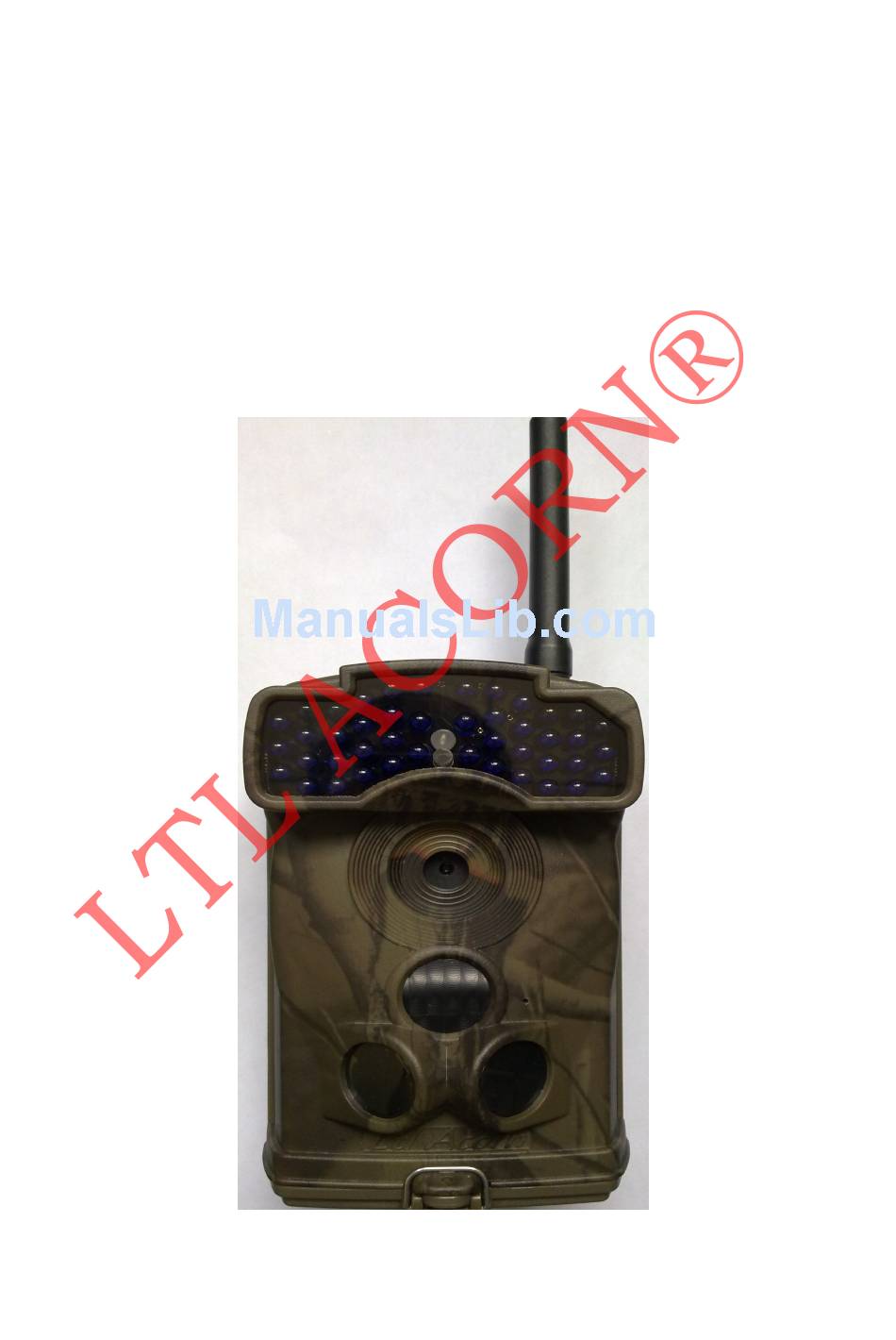

LTL ACORN
MMS Wireless Scouting Camera
Ltl-6310M HD Video Series
SMS remote control
Trigger time 0.8 Seconds
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ltl-6310M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ltl Acorn Ltl-6310M

Summary of Contents for Ltl Acorn Ltl-6310M

  • Page 1 ® LTL ACORN MMS Wireless Scouting Camera Ltl-6310M HD Video Series SMS remote control Trigger time 0.8 Seconds USER’S MANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS General Information ........................1 1.1 Features ..........................1 1.2 Application..........................2 1.3 Illustration ...........................2 Getting Started ..........................5 2.1 Insert SIM Card .........................5 2.2 Load Batteries on the Front Camera ...................6 2.3 Insert SD Card and Format It ....................6 2.4 Set up Camera on PC ......................7 2.5 Set up MMS Function on PC ....................9 2.6 Set up GPRS Function on PC....................

  • Page 3: General Information

    GENERAL INFORMATION Introduction This manual applies to model Ltl-6310MC, Ltl-6310MG, Ltl-6310WMC, Ltl-6310WMG. Ltl-6310 series camera, with its highly sensitive Passive Infra-Red (PIR) sensor, detects the sudden change of ambient temperature caused by moving game in a region of interest (ROI), triggers to take pictures/videos, and sends the images via 2G GSM network to your cell phone or email account.

  • Page 4: Application

    All other indoor/outdoor surveillance where intrusion evidence and live alerts are needed 1.3 Illustration  Figure 1.1 shows the front view of the camera (Part # Ltl-6310M)  Figure 1.2 shows the bottom view of the camera (Part # Ltl-6310M) ...
  • Page 5 Figure 1.1: Front View of Ltl-6310M - 3 -...
  • Page 6 Figure 1.2: Bottom View of Ltl-6310M The camera provides the following connections for external devices: USB 2.0 port, SD card slot, TV out jack, and external DC power in jack. The 3-way Power/Mode Switch is used to select the main operation modes: OFF, ON and TEST.

  • Page 7: Getting Started

    GETTING STARTED 2.1 Insert SIM Card (Only for Model Ltl-6310MG) A SIM card is needed from a Mobile Phone Network Operator (MPNO). Make sure they provide Multimedia Messaging Service (MMS). Insert the SIM card into the slot at the bottom of the camera. Push once to insert, twice to remove.

  • Page 8: Load Batteries On The Front Camera

    2.2 Load Batteries  Open the bottom cover by pulling down the lock hole.  Push or dig the two battery boxes and release the battery door.  Install 4 AA batteries in the front of camera and 8 AA batteries in the back of camera. Make sure the polarity matches the sign on the cover.

  • Page 9: Set Up Camera On Pc

    Find the enclosed compact CD from the packaging box and put it on the CD tray. (If your PC does not have a disc drive then you would need an external disc drive.) Run the Setup.exe file. You can also access the same setup file by visiting the LTL ACORN national distributor’s website to download and following the link http://www.ltlacorn.cn/about/downloaden.html...
  • Page 10 Set up the camera based on your own need. Please reference Section 3.1 Parameter Settings in Advanced Settings to find detailed explanations for each setting. Click on to retrieve the computer time. Click on to find and choose the drive where the SD card is placed, usually denoted by a letter after E (F drive or G drive). For example, if the SD card is inserted into the F drive, then you should click on “F:\”.

  • Page 11: Set Up Mms Function On Pc

    Click and go back to the main menu. 2.5 Set up MMS Function on PC On the main menu, Select Ltl 6310MG and press MMS Setup. - 9 -...
  • Page 12 An important first step is to determine the format of the files that the camera will send you. On the right of the first row where it says MMS Status, choose among three options: “VGA”, “SMS”, and “OFF”.  VGA: the camera will send 640X480 pictures to your phone or e-mail account ...

  • Page 13: Set Up Gprs Function On Pc

    Click on and back to main menu. Retrieve the SD card and insert it in the camera.\Switch to the TEST position to enter the TEST mode. Two lines in red show up consecutively on the TFT display, indicating the setup files have been successfully installed on the camera.
  • Page 14 For the camera to send pictures, SMTP status must be set to “VGA”. “SMS” indicates sending texts and “OFF” means nothing will be sent. In Auto mode, first select country and operator. In Manual mode, you fill in APN / Account / Password.

  • Page 15: Sms Remote Control & Table Of Command Code

    camera wakes up to either receive or execute the commands. “0” indicates that the camera will wake up and search for commands automatically every 10 minutes, and send feedback once it receives them. “1~24” indicates search intervals of 1~24 hours.. “off”, on the other hand, means SMS remote control is turned off.
  • Page 16  For SMS remote control setting, different value comes with different extra power consumption:“0” the highest and “off” zero.  The maximum for text messages is 60 bytes.  If your phone number is put in properly during setup, once the camera receives the command, it will send you a text message saying “Message format OK”.
  • Page 17 day. 0 means no limit many pictures as it takes. The camera takes a picture every Time lapse：off（0） ，on（1）, Time indicated by 16*101300 one and a half numbers. Example：1h 30m 0s becomes 01 30 00. hours whether triggered or not Camera functions Timer : off（0）...

  • Page 18: View Local Mnop Name And Signal Strength On Tft Display

    key to navigate key to set the value 2.8 View Local MPNO name and Signal Strength on TFT Screen You can find your local Mobile Phone Network Operator’s name and the signal strength on the TFT display screen on the camera, just like you can see the reception on a regular cell phone. Install the SIM card and 12 AA batteries.
  • Page 19 slightly move the camera to make sure the LED light in the front keeps flashing. If you wait too long (over three minute), the screen may power off to save battery. If that happens, you’ll need to switch to OFF and then TEST to start over. Signal strength can be full 6 columns.

  • Page 20: Camera Working With Mms

    2.9 Camera Working with MMS When all of the following conditions are met, the camera should start sending pictures to your cell phone and/or e-mail account. If you encounter any problems, it is highly recommend that you go through this list first. ...

  • Page 21: Enter Live Mode

    When the subject passes very quickly, it is possible that only part or even none of the subject is captured in the photo. With the unique side prep PIR sensors design, our LTL ACORN cameras solve this issue. The combination of the two side prep sensors and the main sensor comes up with a 100 to 120°...

  • Page 22: Advanced Settings

    ADVANCED SETTINGS The LTL ACORN trail camera comes with preset manufacturer settings. You can change the settings to meet your requirements, by manually operating on the camera or programming on your computer. 3.1 Parameter Settings Switch to the TEST position to enter the Test mode. In this mode you can take pictures or video clips like using a regular digital camera, or enter the Menu to set up parameters.
  • Page 23 time. Caution: make sure wanted files on the SD card are backed up. Photo Size (affects 5MP, 12MP, 2MP Select desired resolution for photos from pictures only) 2 to 12 megapixels. Higher resolution produces better quality photos, but creates larger files that occupy more space and take longer time to write to the SD card, which slightly affects the shutter speed.
  • Page 24 day. For instance, if the starting time is set at 18:35 and the ending time at 8:25, the camera will function from 18:35 the current day to 8:25 the next day. Outside the time period the camera will not be triggered or take photos/videos.

  • Page 25: Set Up Mms On Camera

    camera settings back to the manufacturer default. However, all the MMS function settings will remain the same except for MMS Phone Number and MMS Status. 3.2 Set up MMS on Camera In TEST mode, press key to enter, Press MENU key to exit the MMS Setup menu. Press to move the marker, to change the setting, and to confirm the change.
  • Page 26 Press key to enter/exit the MMS Setup menu. Choose your Country. Choose the Wireless Operator. - 24 -...

  • Page 27: Change Language

    3.3 Change Language ●Set up language on PC Select country and store update file to SD card. Then put SD card into camera. Powering on the camera will change your language. ● Set up language From MMS menu: Enter MMS setting menu and select country, save update and language will be changed.

  • Page 28: Ltl-6310/6310W Series Products

    LTL-6310/6310W SERIES PRODUCTS Ltl 6310 consists of Ltl-6310 and Ltl-6310W, Please note that the only difference is Lens angle: Ltl-6310 the 52°whereas Ltl-6310W has a much wider angle of 100°. 4.1 Series model: Ltl-6310 series: 1. Ltl-6310MC Camera 2. Ltl-6310MG Camera (MMS wireless) Ltl-6310W series: 1.

  • Page 29: Important Information

    IMPORTANT INFORMATION 5.1 Power Supply Ltl-6310 Series camera can work on electricity up to 12 voltages. The 4 AA batteries in the front of camera, the 8 AA batteries in the back of camera, and the external power supply form a four-path parallel circuit. Each path is isolated from others and does not charge or discharge others.

  • Page 30: Faqs On Mms Function

    I programmed the camera to constantly take pictures. But some pictures were not sent to my phone. How? The Ltl-6310M series camera is designed to constantly send MMS pictures to the recipient’s phone. However, if the signal is too weak, it may not work stably.

  • Page 31: Battery Level Indication

    Attention: A firmware upgrade program for one model is not compatible on other models. In other word, an upgrade for Model Ltl-6310M only applies to that model. If a camera is accidently upgraded by running a non-compatible program, it will quit working and needs to be sent back for repair. This issue is not covered under warranty.

  • Page 32: Warranty Information

    We take great pride in our products. We always stand behind our promises. We provide leading warranty term and service. Every LTL ACORN trail camera comes with a limited times warranty. We guarantee our trail cameras to be free of defects in materials and workmanship under normal...

  • Page 33: Appendix I Technical Specifications

    Appendix I: Technical Specification Appendix I: TECHNICAL SPECIFICATION Parameters Ltl-6310MC Ltl-6310MG Series- Model Wide Angle lens 5 Mega Pixels Color CMOS Image Sensor 2560x1920 Max Pixel Size F=3.1; FOV=52°; Auto IR-Cut Lens Lens FOV=100°; Auto IR-Cut 850nm 35meters/ 35meters/ 30meters/ IR Flash 115 feet 115 feet...
  • Page 34 Appendix I: Technical Specification On/Off; 1 Second ~ 24 Hours Time Lapse Programmable On/Off; Beep Sound On/Off; SD Cycle VGA = 640x480; SMS = Text Msg.; OFF Upgradeable Model MMS Options Programmable selectable “0” = Unlimited; 1 ~ 99/Day Upgradeable Model MMS Numbers selectable...

  • Page 35: Appendix Ii Package Contents

    Appendix II: PACKAGE CONTENTS LTL-MM2 Part name Quantity Quantity （Ltl-6310MC） （Ltl-6310MG） MMS-module Digital camera LTL-MM2 MMS-module TV AV IN cable USB cable Strap External DC cable (optional) Warranty Card - 33 -...
