Installation instructions

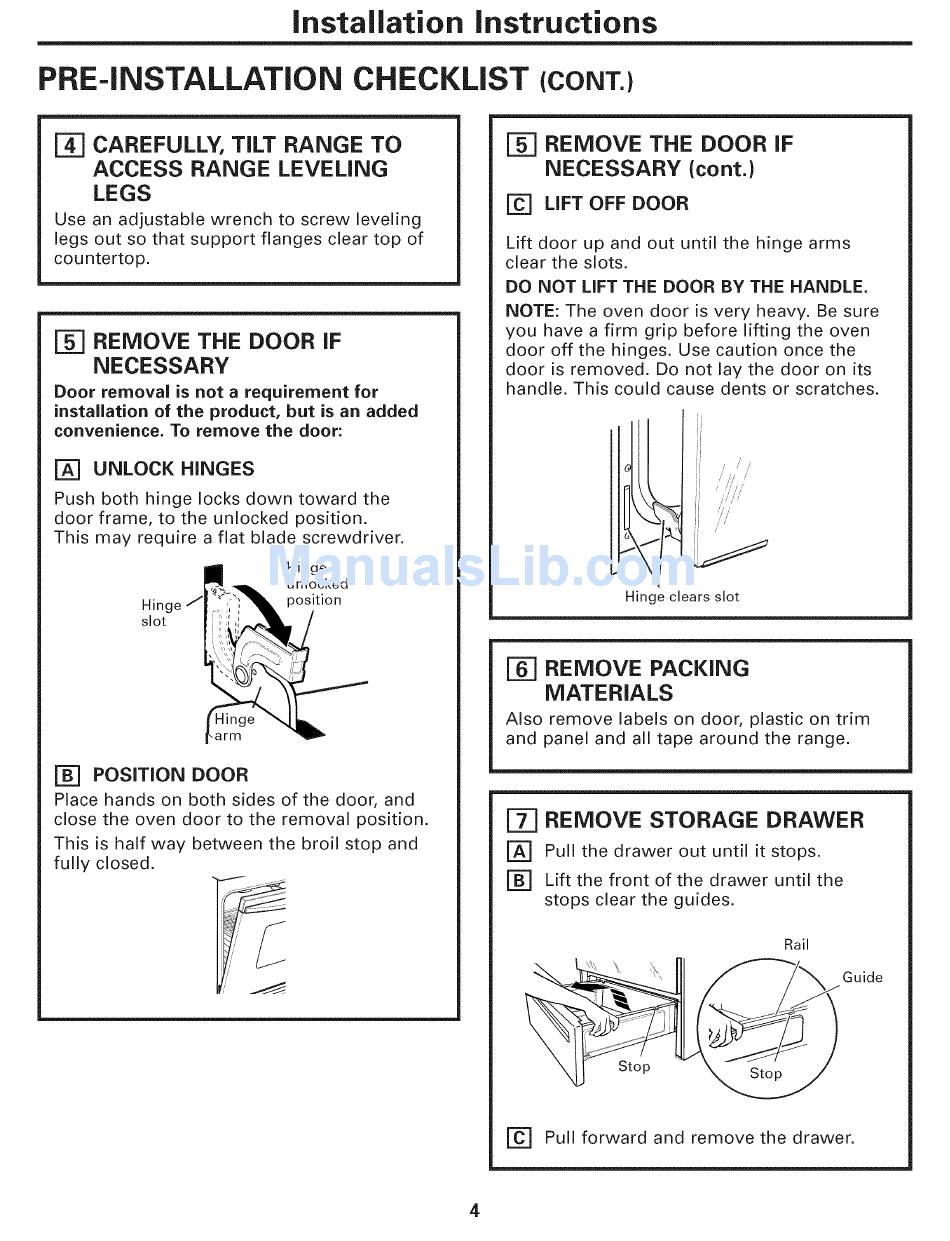

PRE-INSTALLATION CHECKLIST
(CONT.)
_-] CAREFULLY, TiLT RANGE TO
ACCESS RANGE LEVELING
LEGS
Use an adjustable wrench to screw leveling
legs out so that support flanges clear top of
countertop.
_] REMOVE THE DOOR IF
NECESSARY
Door removal is not a requirement for
installation of the product, but is an added
convenience. To remove the door:
FA] UNLOCK HINGES
Push both hinge locks down toward the
door frame, to the unlocked position.
This may require a flat blade screwdriver.
Hinge
slot
Hinge
unlocked
position
_arm
[_] POSITION DOOR
Place hands on both sides of the door, and
close the oven door to the removal position.
This is half way between the broil stop and
fully closed.
REMOVE THE DOOR IF
NECESSARY (cont.)
j=_ LIFT OFF DOOR
Lift door up and out until the hinge arms
clear the slots.
DO NOT LIFT THE DOOR BY THE HANDLE,
NOTE: The oven door is very heavy. Be sure
you have a firm grip before lifting the oven
door off the hinges. Use caution once the
door is removed. Do not lay the door on its
handle. This could cause dents or scratches.
h
ii
// /,
/,
Hinge clears slot
[-_ REMOVE PACKING
MATERIALS
Also remove labels on door, plastic on trim
and panel and all tape around the range.
[-_ REMOVE STORAGE DRAWER
[-_ Pull the drawer out until it stops.
r_ Lift the front of the drawer until the
stops clear the guides.
Stop
Rail
Guide
F_ Pull forward and remove the drawer.
4
