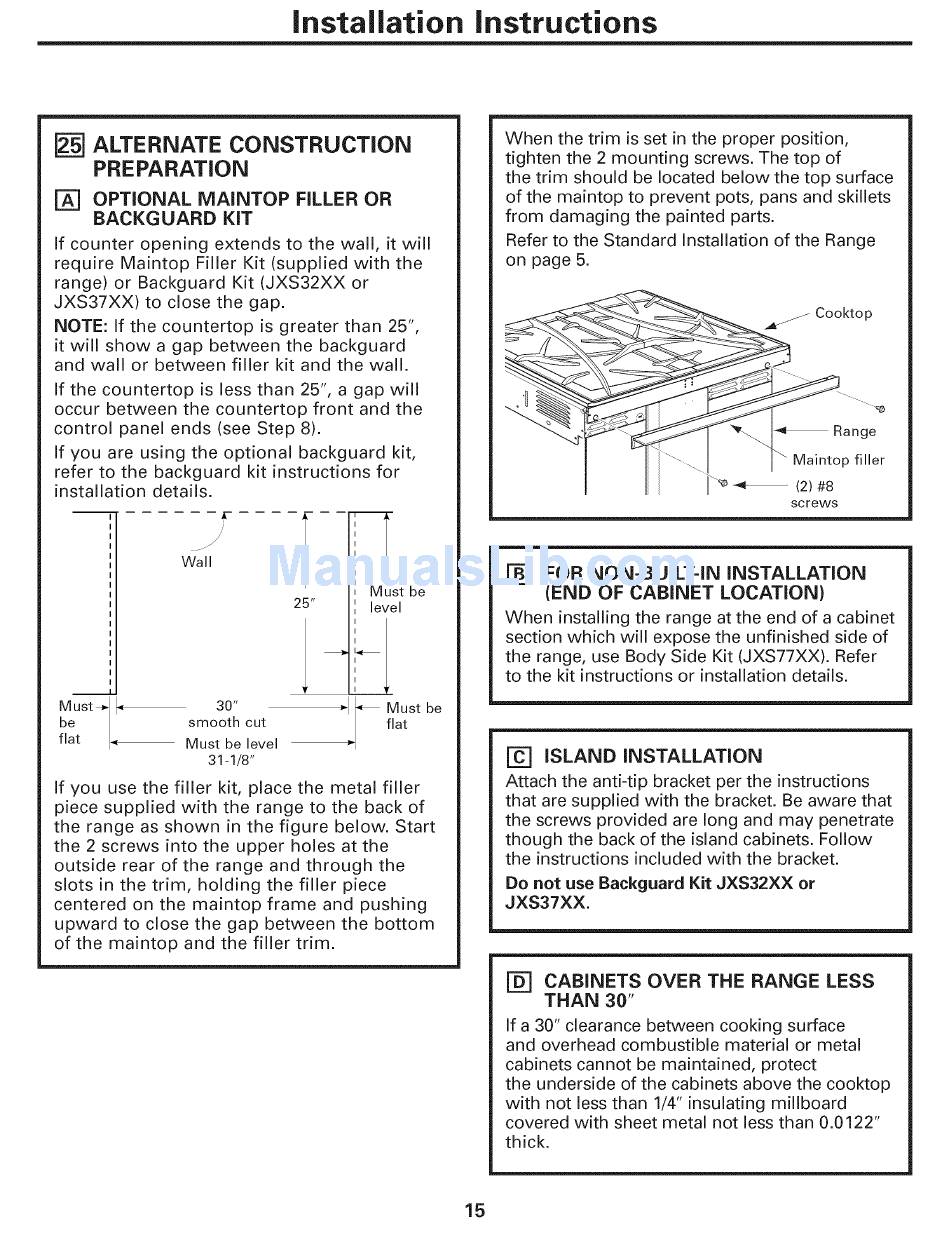

Installation instructions
[2--57 A LTERNATE CONSTRUCTION
PREPARATION
F_ OPTIONAL MAINTOP FILLER OR
BACKGUARD KiT
If counter opening extends to the wall, it will
require Maintop Filler Kit (supplied with the
range) or Backguard Kit (JXS32XX or
JXS37XX) to close the gap.
NOTE: If the countertop is greater than 25",
it will show a gap between the backguard
and wall or between filler kit and the wall.
If the countertop is less than 25", a gap will
occur between the countertop front and the
control panel ends (see Step 8).
If you are using the optional backguard kit,
refer to the backguard kit instructions for
installation details.
Wall
25"
Uust lI- 30,,
flabet . smooth cut
Must be level
31-1/8"
Must be
level
_I _ Must be
flat
If you use the filler kit, place the metal filler
piece supplied with the range to the back of
the range as shown in the figure below. Start
the 2 screws into the upper holes at the
outside rear of the range and through the
slots in the trim, holding the filler piece
centered on the maintop frame and pushing
upward to close the gap between the bottom
of the maintop and the filler trim.
When the trim is set in the proper position,
tighten the 2 mounting screws. The top of
the trim should be located below the top surface
of the maintop to prevent pots, pans and skillets
from damaging the painted parts.
Refer to the Standard Installation of the Range
on page 5.
__j- Cooktop
o
"'" "'-I ] \ Maintop filler
F _ _ (2) #8
screws
r-_ FOR NON-BUILT-IN INSTALLATION
(END OF CABINET LOCATION)
When installing the range at the end of a cabinet
section which will expose the unfinished side of
the range, use Body Side Kit (JXS77XX). Refer
to the kit instructions or installation details.
[=_ ISLAND INSTALLATION
Attach the anti-tip bracket per the instructions
that are supplied with the bracket. Be aware that
the screws provided are long and may penetrate
though the back of the island cabinets. Follow
the instructions included with the bracket.
Do not use Backguard Kit JXS32XX or
JXS37XX.
r_ CABINETS OVER THE RANGE LESS
THAN 30"
If a 30" clearance between cooking surface
and overhead combustible material or metal
cabinets cannot be maintained, protect
the underside of the cabinets above the cooktop
with not less than 1/4" insulating millboard
covered with sheet metal not less than 0.0122"
thick.
15
