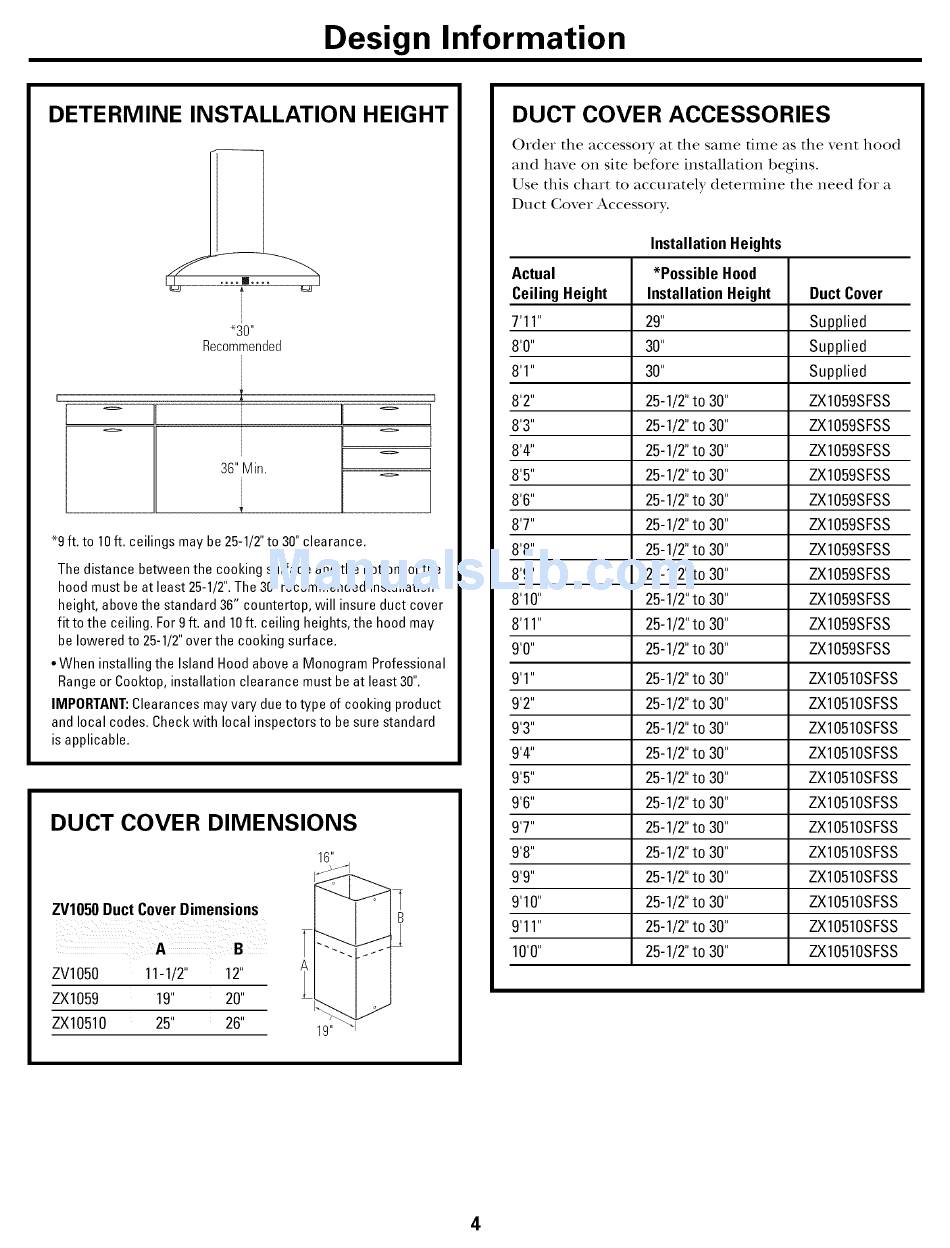

Design Information
DETERMINE INSTALLATION HEIGHT
L_ .... m .... _J I
*30"
Recommended
[
o
o
o
o
o
o
*9 ft. to 10ft. ceilings may be 25-1/2"to 30" clearance.
The distance between the cooking surface and the bottom ofthe
hood must be at least 25-1/2".The 30"recommended installation
height, above the standard 36" countertop, will insure duct cover
fit to the ceiling. For 9ft. and 10ft. ceiling heights, the hood may
be lowered to 25-1/2"over the cooking surface.
*When installing the Island Hood above a Monogram Professional
Range or Cooktop, installation clearance must be at least 30".
IMPORTANT:Clearances may vary due to type of cooking product
and local codes. Check with local inspectors to be sure standard
is applicable.
DUCT COVER DIMENSIONS
ZVl050 Duct CoverDimensions
A B
ZV1050 11-1/2" 12"
ZX1059 19" 20"
ZX10510 25" 26"
DUCT COVER ACCESSORIES
Order the accessory at the same time as the vent hood
and have on site before installation begins.
Use this chart to accurately determine the need for a
Duct Cover Accessory.
Actual
Ceiling Height
7'11"
8'0"
8'1"
8'2"
8'3"
8'4"
8'5"
8'6"
8'7"
8'8"
8'9"
8'10"
8'11"
9'0"
9'1"
9'2"
9'3"
9'4"
9'5"
9'6"
9'7"
9'8"
9'9"
9'10"
9'11"
10'0"
InstallationHeights
*Possible Hood
InstallationHeight
29"
30"
30"
25-1/2"to30"
25-1/2"to30"
25-1/2"to30"
25-1/2"to30"
25-1/2"to30"
25-1/2"to30"
25-1/2"to30"
25-1/2"to30"
25-1/2"to30"
25-1/2"to30"
25-1/2"to30"
25-1/2"to30"
25-1/2"to30"
25-1/2"to30"
25-1/2"to30"
25-1/2"to30"
25-1/2"to30"
25-1/2"to30"
25-1/2"to30"
25-1/2"to30"
25-1/2"to 30"
25-1/2"to 30"
25-1/2"to 30"
Duct Cover
Supplied
Supplied
Supplied
ZX1059SFSS
ZX1059SFSS
ZX1059SFSS
ZX1059SFSS
ZX1059SFSS
ZX1059SFSS
ZX1059SFSS
ZX1059SFSS
ZX1059SFSS
ZX1059SFSS
ZX1059SFSS
ZX10510SFSS
ZX10510SFSS
ZX10510SFSS
ZX10510SFSS
ZX10510SFSS
ZX10510SFSS
ZX10510SFSS
ZX10510SFSS
ZX10510SFSS
ZX10510SFSS
ZX10510SFSS
ZX10510SFSS
4
