Installation Instructions

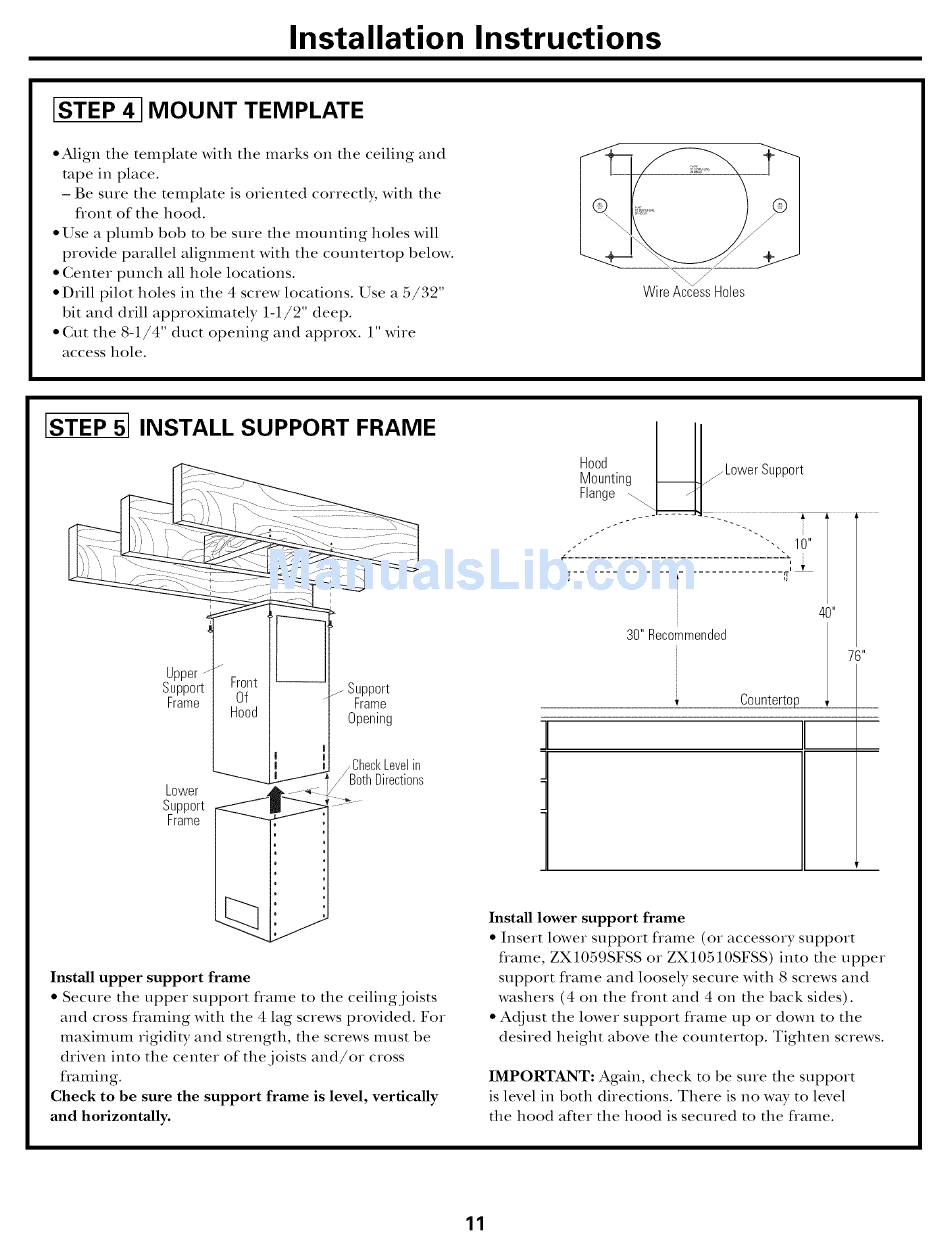

ISTEP
4 ] MOUNT TEMPLATE
• Align the template with tile marks on tile ceiling and
rope in place.
- Be sure tile template is oriented correctly, with tile
flont of tile hood.
• Use a phnnb bob to be sure the mounting holes will
provide parallel alignment with tile countertop below.
• Center punch all hole locations.
• Drill pilot holes in tile 4 screw locations. Use a 5/32"
bit and drill approximately 1-1/2" deep.
• Gut tile 8-1/4" duct opening and approx. 1" wire
access hole.
,_ss H oles
ISTEP51
INSTALL SUPPORT FRAME
Upper z
Support
Frame
Lower
Support
Frame
Support
Frame
Opening
_CheckLevel in
Both Directions
Install upper support frame
• Secure tile upper support flame to tile ceiling joists
and cross flaming with tile 4 lag screws provided. For
maxinlum rigidity and strength, tile screws must be
driven into tile center of the joists and/or cross
flaming.
Check to be sure the support frame is level, vertically
and horizontally.
_o°dnt in g _Lower Support
Flang _ e _ I _1 ...... ..................... '
40"
30"Recommended
76"
Countertop
Install lower support frame
• Insert lower support flame (or accessory support
flame, ZX1059SFSS or ZX10510SFSS) into the upper
support flame and loosely secure with 8 screws and
washers (4 on the flont and 4 on tile back sides).
• Adjust tile lower support flame up or down to tile
desired height above tile countertop. Tighten screws.
IMPORTANT: Again, check to be sure tile support
is level in both directions. There is no way to level
tile hood after tile hood is secured to tile flame.
11
