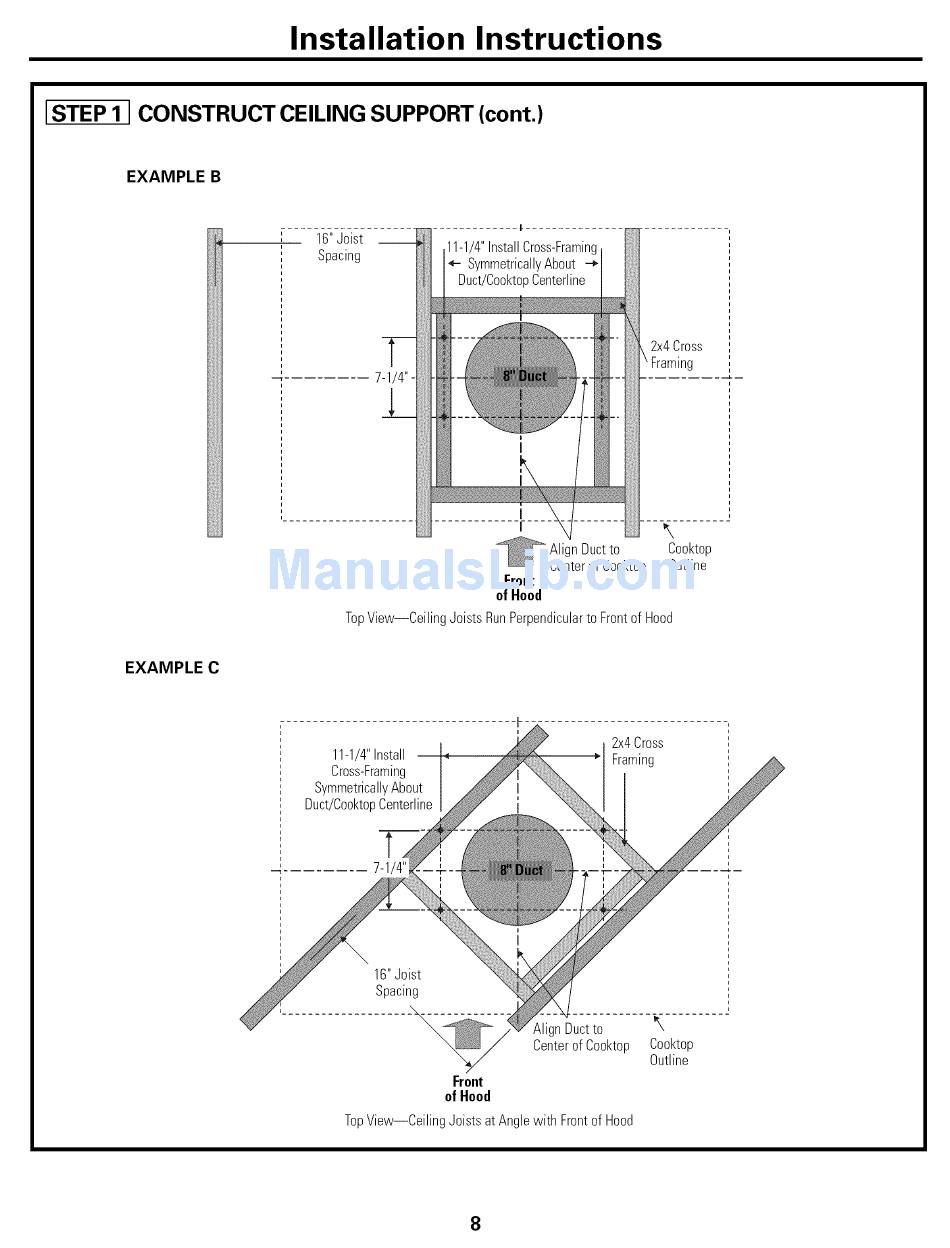

[STEP 1 ] CONSTRUCT CEILING SUPPORT (cont.)
EXAMPLE B
|
16"Joist
Spacing
11-1/4"InstallCross-Framing
Symmetrically About
2x4 Cross
\ Framing
Align Ductto
Centerof Cooktop
\
Cooktop
Outline
Front
of Hood
TopView--Ceiling Joists RunPerpendicular t o Frontof Hood
EXAMPLE C
i 1
11-1/4"Install
Cross-Framing
Symmetrically A bout
Duct/Cooktop Centerline
2x4Cross
Framing
16"Joist
Spacing
Align Ductto
\
Centerof Cooktop
Cooktop
Outline
Front
of Hood
TopView--Ceiling Joists at Anglewith Frontof Hood
