Design Information

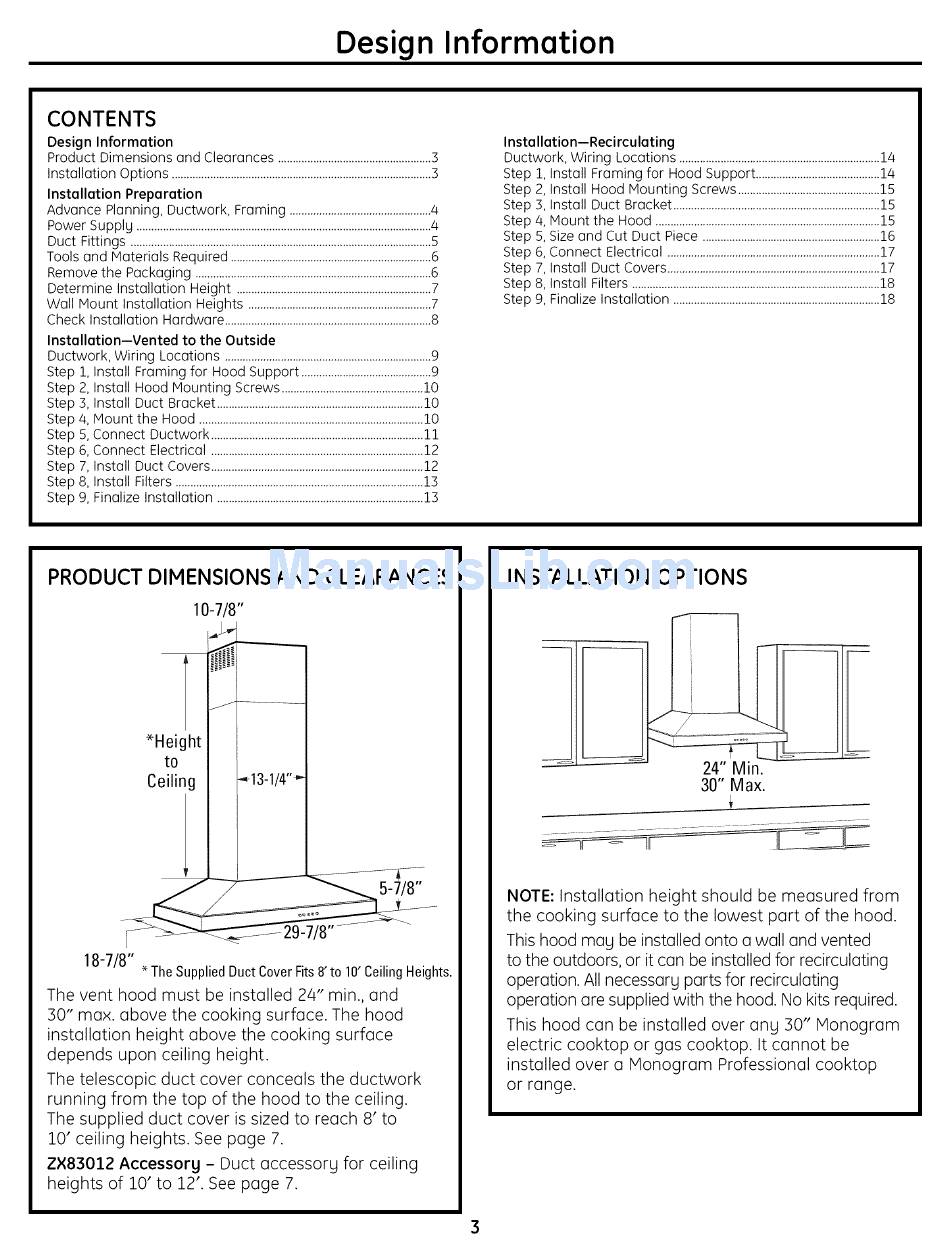

CONTENTS
Design Information
Product Dimensions and Clearances .................................................... 3
Installation Options ........................................................................................ 3
Installation Preparation
Advance Planning, Ductwork, Framing ................................................ 4
Power Supply .................................................................................................... 4
Duct Fittings ...................................................................................................... 5
Tools and Materials Required .................................................................... 6
Remove the Packaging ................................................................................ 6
Determine Installation Height .................................................................. 7
Wall Mount Installation Heights .............................................................. 7
Check Installation Hardware ...................................................................... 8
Installation-Vented to the Outside
Ductwork, Wiring Locations ...................................................................... 9
Step 1, Install Framing for Hood Support ............................................ 9
Step 2, Install Hood Mounting Screws ................................................ 10
Step 3, Install Duct Bracket ...................................................................... 10
Step/4, Mount the Hood ............................................................................ 10
Step 5, Connect Ductwork ........................................................................ 11
Step 6, Connect Electrical ........................................................................ 12
Step 7, Install Duct Covers........................................................................ 12
Step 8, Install Filters .................................................................................... 13
Step 9, Finalize Installation ...................................................................... 13
Installation--Recirculating
Ductwork, Wiring Locations .................................................................... 1/4
Step 1, Install Framing for Hood Support .......................................... 1/4
Step 2, Install Hood Mounting Screws ................................................ 15
Step 3, Install Duct Bracket ...................................................................... 15
Step/4, Mount the Hood ............................................................................ 15
Step 5, Size and Cut Duct Piece ............................................................ 16
Step 6, Connect Electrical ........................................................................ 17
Step 7, Install Duct Covers........................................................................ 17
Step 8, Install Filters .................................................................................... 18
Step 9, Finalize Installation ...................................................................... 18
PRODUCT DIMENSIONS AND CLEARANCES
10-7/8"
t
:H ghte,.i:g ii .13 lJ,- 1
18-7/8".
The Supplied Duct CoverFits 8' to 10'CeilingHeights.
The vent hood must be installed 2/4" min., and
:30" max. above the cooking surface. The hood
installation height above the cooking surface
depends upon ceiling height.
The telescopic duct cover conceals the ductwork
running from the top of the hood to the ceiling.
The supplied duct cover is sized to reach 8' to
10' ceiling heights. See page 7.
Z×83012 Accessorg - Duct accessorg for ceiling
heights of 10' to 12'. See page 7.
INSTALLATION OPTIONS
NOTE: Installation height should be measured from
the cooking surface to the lowest part of the hood.
This hood mag be installed onto a wall and vented
to the outdoors, or it can be installed for recirculating
operation. All necessarg parts for recirculating
operation are supplied with the hood. No kits required.
This hood can be installed over ang :30" Monogram
electric cooktop or gas cooktop. It cannot be
installed over a Monogram Professional cooktop
or range.
