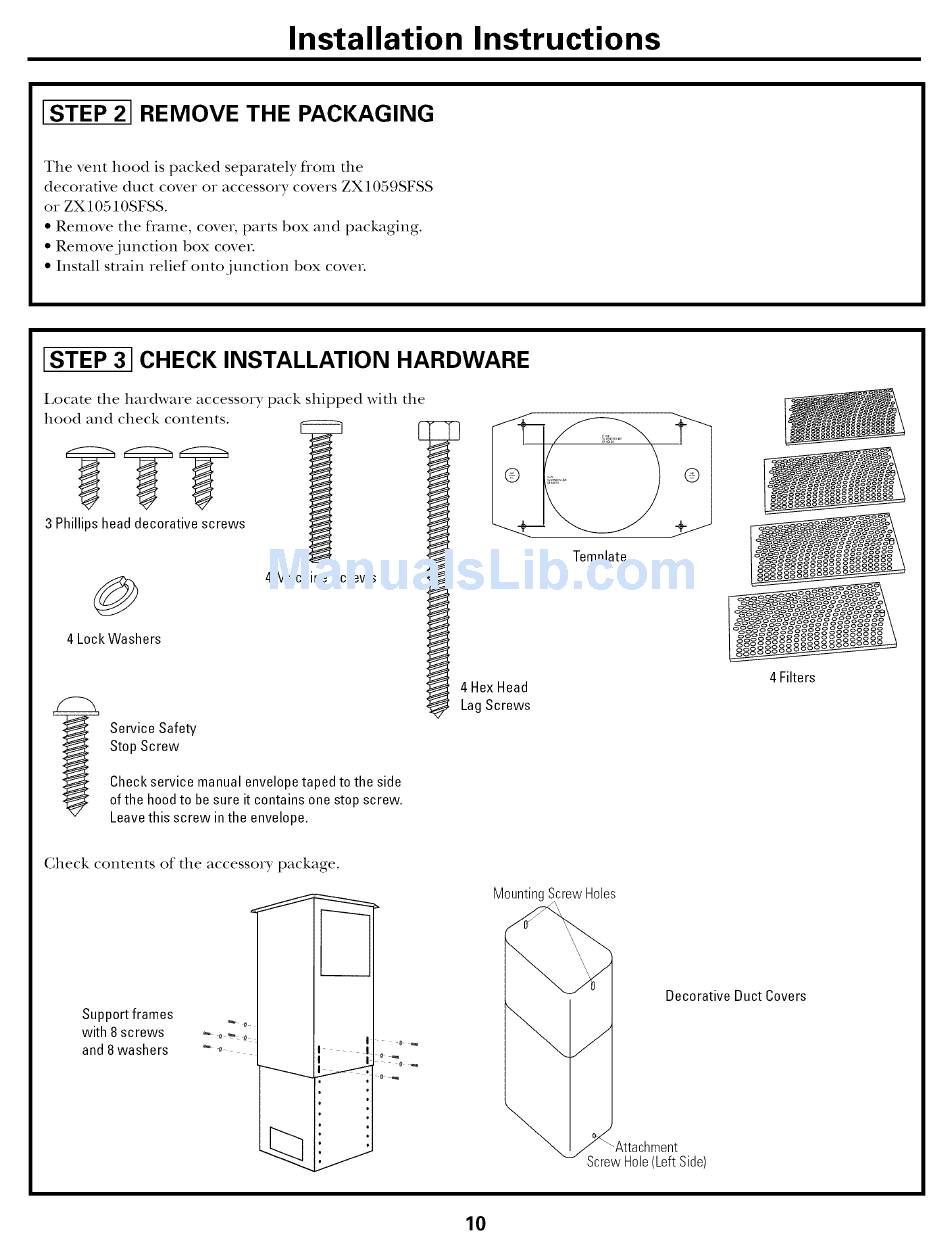

Installation Instructions
ISTEP 21
REMOVE THE PACKAGING
The vent hood is packed separately flom the
decorative duct cover or accessory covers ZX1059SFSS
or ZX10510SFSS.
• Remove the flame, cover, parts box and packaging.
• Remove junction box cover.
• Install suain relief onto junction box coveL
[STEP 3 CHECK INSTALLATION HARDWARE
I,ocate the hardware accessory pack shipped with the
hood and check contents.
3 Phillips head decorative screws
©
4 Machine Screws
4 Lock Washers
Service Safety
Stop Screw
Check service manual envelope taped to the side
of the hood to be sure it contains one stop screw.
Leave this screw in the envelope.
4 Hex Head
Lag Screws
Template
Gheck contents of the accessory package.
Support frames
with 8 screws
and 8washers
o
MountingScrewHoles
1
4 Filters
Decorative Duct Covers
\Attachment
ScrewHole(LeftSide)
