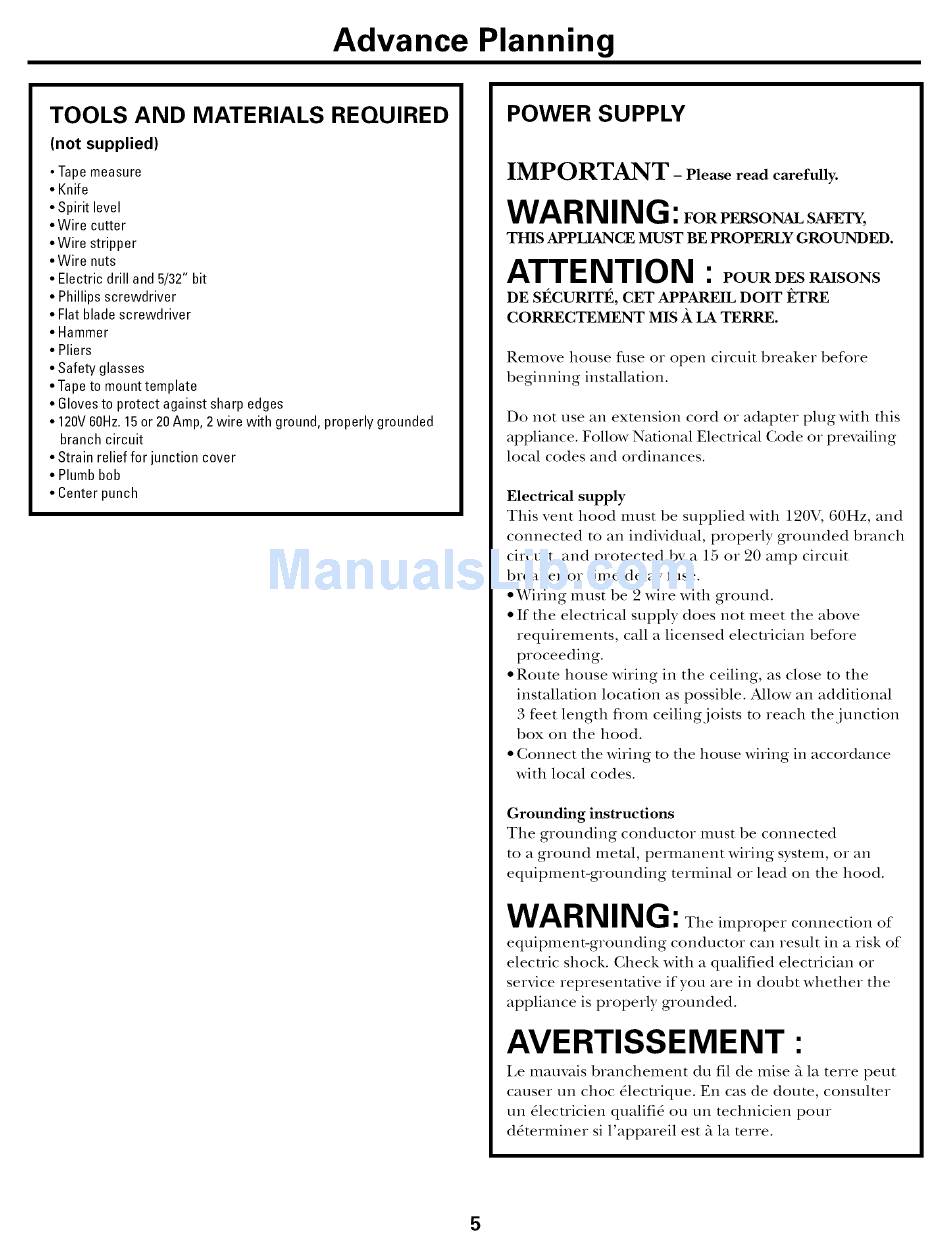

Advance Planning
TOOLS AND MATERIALS REQUIRED
(not supplied)
• Tapemeasure
• Knife
• Spirit level
• Wire cutter
• Wire stripper
• Wire nuts
• Electric drill and 5/32" bit
• Phillips screwdriver
• Flat blade screwdriver
• Hammer
• Pliers
• Safety glasses
• Tapeto mount template
• Gloves to protect against sharp edges
• 120V60Hz, 15 or 20 Amp, 2wire with ground, properly grounded
branch circuit
• Strain relief for junction cover
• Plumb bob
• Center punch
POWER SUPPLY
IMPORTANT
- Please read carefully.
WARNING: , ORP ON
THIS APPLIANCE MUST BE PROPERLY GROUNDED.
ATTENTION •
• POUR DES RAISONS
DE SI_CURITI_, CET APPAREIL DOlT I_TRE
CORRECTEMENT MIS A LA TERRE.
Remove house filse or open circuit breaker before
beginning installation.
Do not use an extension cord or adapter plug with this
appliance. Follow National Electrical Code or prevailing
local codes and ordinances.
Electrical supply
This vent hood must be supplied with 120V, 60Hz, and
connected to an individual, properly grounded branch
circuit, and protected by a 15 or 20 amp circuit
breaker or time delay fiase.
• Wiring must be 2 wire with ground.
• If the electrical supply does not meet the above
requirements, call a licensed elecuician before
proceeding.
• Rotate house wiring in the ceiling, as close to the
installation location as possible. Allow an additional
3 feet length flom ceiling joists to reach the junction
box on tim hood.
• Connect the wiring to the house wiring in accordance
with local codes.
Grounding instructions
The grounding conductor must be connected
to a ground metal, permanent wiring system, or an
equipment-grounding terminal or lead on the hood.
WARNING: l,e mp ope connection
of
equipment-grounding conductor can result in a risk of
elecuic shock. Check with a qualified electrician or
service representative if you are in doubt whether the
appliance is properly grounded.
AVERTISSEMENT :
I,e mauvais branchement du fil de raise _ la terre peut
causer un choc _lecuique. En cas de doute, consulter
un _lecuicien qualifi_ ou un teclmicien pour
d_terminer si l'appareil est _ la terre.
