2. Push the card into the slot firmly and evenly until it is fully seated in
the slot connector.
3. Visually inspect the connection. If it does not appear to be correct,
remove and reinstall the card.
4. Use the screw you removed previously to secure the card to the
computer's chassis.
Follow this procedure only if you are installing the optional Geometry
Accelerator for Intense 3D Pro 3410GT or Intense 3D Pro 3400GT.
To install an Intense 3D Pro 3410G Accelerator:
1. Align the card with the PCI slot next to the graphics accelerator,
making sure the gold-fingered connectors on the card's edge are
aligned properly with the slot connector.
2. Push the card into the slot firmly and evenly until it is fully seated in
the slot connector.
3. Visually inspect the connection. If it does not appear to be correct,
remove and reinstall the card.
4. Use the screw you removed previously to secure the card to the
computer's chassis.
5. Connect the vertex data bus cable between the Geometry

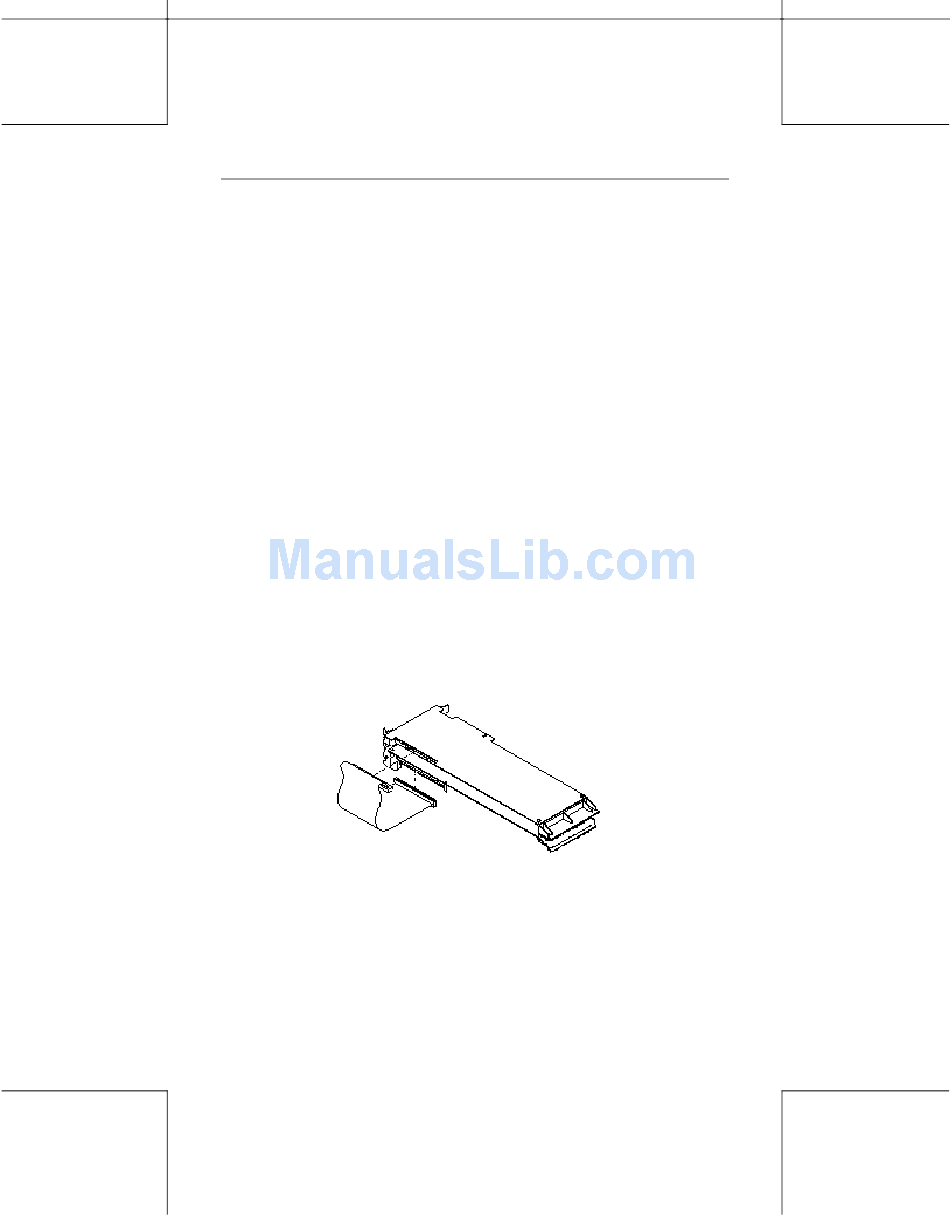

Accelerator and the Intense 3D Pro Graphics card. Refer to the
figure below.
NOTE The connector of the vertex data bus cable can be installed in only
one orientation.
