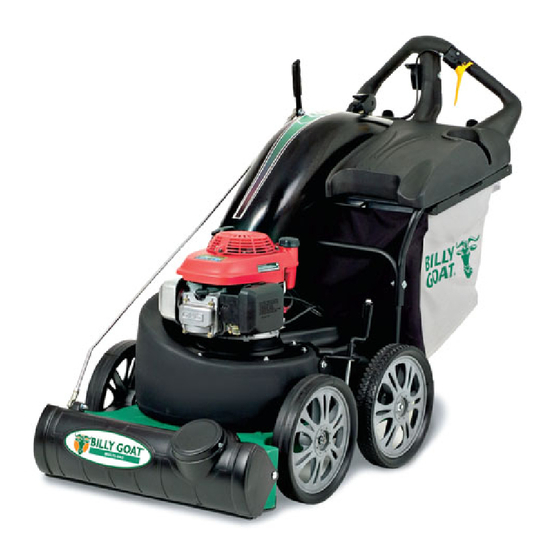

Billy Goat MV650H Owner's Manual

Push leaf vacuum
Hide thumbs Also See for MV650H:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
MV PUSH Owner's Manual
Push Multi-Vac Owner's Manual
CASTER KIT
Use on hard surface
For vacuuming hard
for maneuverability.
P/N 840129
IMPORTANT- READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE.
Part No 840244
MV650H
Beginning Serial #: 102615001
Accessories
HOSE KIT
BAG LINER KIT
To collect leaves,
to reach areas.
thatch, and grass.
P/N 840116
Original Instructions
FELT BAG KIT
Use on all dusty
P/N 840134
P/N 840129
1
LINER KIT
Interior housing liner
conditions.
to decrease housing
P/N 840201
Form No F102615A
wear.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MV650H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Billy Goat MV650H

Summary of Contents for Billy Goat MV650H

  • Page 1 MV PUSH Owner’s Manual Push Multi-Vac Owner’s Manual MV650H Beginning Serial #: 102615001 Accessories CASTER KIT HOSE KIT BAG LINER KIT FELT BAG KIT LINER KIT Use on hard surface For vacuuming hard To collect leaves, Use on all dusty Interior housing liner for maneuverability.

  • Page 2: Specifications And Sound/Vibration

    MV PUSH Owner’s Manual CONTENTS SPECIFICATIONS AND SOUND/VIBRATION INSTRUCTION LABELS ASSEMBLY INSTRUCTIONS OPERATION 9-11 MAINTENANCE AND TROUBLESHOOTING 11-13 ILLUSTRATED PARTS LIST 14-20 DECLARATION OF CONFORMITY 21-23 Go to http://www.billygoat.com for French-Canadian translations of the product manuals. Visitez http://www.billygoat.com pour la version canadienne-française des manuels de produits Part No 840244 Form No F102615A...

  • Page 3: Specifications

    MV PUSH Owner’s Manual SPECIFICATIONS MV650 Engine Type Honda GSV190AA1A Horsepower 6.5 (4.85 kW) Fuel Capacity 1.6 qt (1.5 L) Oil Capacity 0.69 qt (0.65L) Engine Weight 28 lbs (12.7 kg) Unit Weight 157 lbs (71.2 kg) Shipping Weight 180 lbs (81.7 kg) 28”...

  • Page 4: Instruction Labels

    INSTRUCTION LABELS ® The labels shown below were installed on your BILLY GOAT MV Vacuum. If any labels are damaged or missing, replace them before operating this equipment. For your convenience in ordering replacement labels, part numbers are included in the Illustrated Parts List.
  • Page 5 MV PUSH Owner’s Manual ASSEMBLY INSTRUCTIONS ® Your BILLY GOAT MV Vacuum was shipped in one carton, completely assembled except for the Hood/Upper Handle Assembly. Mounting hardware for the Hood/Upper Handle Assembly is temporarily installed on the lower handle and the Housing Assembly.
  • Page 6 MV PUSH Owner’s Manual Fig. 3 Fig. 4 HERE HERE Fig. 6 Fig. 5 Fig. 7 Part No 840244 Form No F102615A...
  • Page 7 MV PUSH Owner’s Manual NOZZLE DOOR LEVER UPPER HANDLE BRACE LOWER HANDLE NOZZLE DOOR MV Vacuum Assembly Drawing Part No 840244 Form No F102615A...
  • Page 8 MV PUSH Owner’s Manual PARTS BAG PARTS LIST ITEM NO. PART NO. DESCRIPTON 840061 ROD LIFT NOZZLE DOOR 900407 TY- WRAP 8171003 WASHER 5/16" FLAT ZP 8160002 NUT LOCK 5/16"-18 8041006 SCREWCAP 1/4"-20 X 1" ZP 8041031 SCREWCAP 5/16" X 1 3/4" ZP 8171004 WASHER 3/8 FLAT 8172007...

  • Page 9: Operation

    MV PUSH Owner’s Manual OPERATION OPERATOR CONTROLS The operator’s position is at the rear of the machine between the handlebars. The operator should STAND in a position to allow both handlebars to be grasped firmly, which allows sufficient leverage to steer the machine. Operator’s controls are shown below.
  • Page 10 MV PUSH Owner’s Manual VACUUM NOZZLE HEIGHT ADJUST For maximum pickup: Adjust nozzle height as close to debris as possible, but without blocking airflow into the nozzle. NOTE: Never bury nozzle into debris. The vacuum nozzle is raised and lowered by turning the crank handle clockwise and counter-clockwise.

  • Page 11: Debris Bag

    MV PUSH Owner’s Manual DEBRIS BAG Debris bags are normal replaceable wear items. Bag liners are available for use in various conditions where debris will be vacuumed. (See Bag Liner Accessories on page DO NOT place bag on or near hot surface, such as engine. Be sure engine has come to a complete stop before removing or emptying bag! *****TIPS***** Frequently empty debris to prevent bag overloading with more weight than you can lift.
  • Page 12 MV PUSH Owner’s Manual IMPELLER REMOVAL READ all safety instructions before servicing unit. DISCONNECT spark plug wire before servicing unit. 1. Wait for engine to cool and disconnect spark plug. 2. Drain fuel and oil from the engine. 3. Remove engine, impeller and mounting plate by removing bolts around outside of housing. 4.

  • Page 13: Troubleshooting

    MV PUSH Owner’s Manual TROUBLESHOOTING Problem Possible Cause Solution Will not vacuum or has poor Dirty or full debris bag or filter. Clean debris bag and filter. Shake bag clean vacuum performance. or wash. Nozzle height set too high or too low. Adjust nozzle height (see page 10).
  • Page 14 MV PUSH Owner’s Manual MV PUSH NOZZLE PARTS DRAWING Nozzle Assembly Part No 840244 Form No F102615A...
  • Page 15 MV PUSH Owner’s Manual MV PUSH NOZZLE PARTS LIST PART MV650H ITEM NO. NUMBER DESCRIPTION QTY. 350127 YOKE 1/2 - 20 350128 PIN YOKE 1/2" 840243 SCREWCAP BUTTON HEAD 3/8"-16 X 1 1/4" PL 8172009 WASHER 3/8" SAE ZP 8161042 NUT LOCK 3/8-16 LT WT THIN ZP...
  • Page 16 MV PUSH Owner’s Manual MV PUSH ENGINE PARTS DRAWING Engine Assembly Part No 840244 Form No F102615A...
  • Page 17 MV PUSH Owner’s Manual MV PUSH ENGINE PARTS LIST ITEM PART MV650H NUMBER DESCRIPTION QTY. 840069 ENGINE HONDA 6.5 VERTICAL GSV190 840137 IMPELLER ASSEMBLY PUSH MV VAC 840111 TOP PLATE ASSEMBLY PUSH MV VAC 840205 HOUSING PLASTIC VAC 440153 WASHER 1.5 OD X .453 ID X .25 THK 9201087 SQ KEY 2.125 X .187...
  • Page 18 MV PUSH Owner’s Manual MV PUSH HOOD PARTS DRAWING Hood Assembly Part No 840244 Form No F102615A...
  • Page 19 MV PUSH Owner’s Manual MV PUSH HOOD PARTS LIST ITEM PART MV650H NUMBER DESCRIPTION QTY. 440013 CONTROL THROTTLE 840141 HOOD ASSY W/ LABEL MV VAC 840153 BRACKET BAG CHANNEL RH W/SEAL MV VAC 840196 SEAL BAG MV VAC 840037 TUBE HANDLE BRACE RH MV VAC...
  • Page 20 MV PUSH Owner’s Manual MV PUSH REAR AXLE PARTS DRAWING Rear Axle Assembly MV PUSH REAR AXLE PARTS LIST ITEM PART MV650H NUMBER DESCRIPTION QTY. 8172011 WASHER FLAT 1/2" SAE 8024046 BOLT CARRIAGE 5/16-18X2 1/2 8171002 WASHER 1/4" FC ZP...
  • Page 21 MV PUSH Owner’s Manual Руccкий Latviešu English Suomi Slovenščina български език Français Nederlands Čeština Slovák Ελληνικά Norsk Svenska Dansk Hrvatski Polski Türkçe Deutsch Magyar Português Română Español Italiano Lietuvių eesti keel Δήλωση συμμόρφωσης ΕΚ Deklaracja zgodności UE EC Declaration of Conformity Декларация...
  • Page 22 MV PUSH Owner’s Manual Directive: 2006/42/EC Irányelv: 2006/42/EC Diretiva: 2006/42/EC Директива: 2006/42/EC Οδηγία: Директива: 2006/42/EC 2006/42/EC Směrnice č. 2006/42/EC Direktiva: 2006/42/EC Directiva: 2006/42/EC Direktiv: 2006/42/EF Direttiva: 2006/42/EF Direktiva: 2006/42/EF Richtlinie: 2006/42/EG Direktyva: 2006/42/EG Smernica: 2006/42/EG Direktīva: Directriz: 2006/42/EC 2006/42/EC Direktiv: 2006/42/EC Direktiiviga: 2006/42/EÜ...
  • Page 23 MV PUSH Owner’s Manual (1) ISO 5395-1:2013 F.7 (EN 4871:1996) (2) ISO 5395-1:2013 G.8 (EN 12096:1997, D.1) Miejsce produkcji / Osoba odpowiedzialna za Manufacturing Place / Keeper of Documentation Τόπος κατασκευής / Υπεύθυνος τήρησης αρχείων Място на производство / Архивар przechowywanie dokumentów τεκμηρίωσης...
