- Page 1 FastMig MF 33 Operating manual Käyttöohje Bruksanvisning Bruksanvisning Brugsanvisning Gebrauchsanweisung Gebruiksaanwijzing Manuel d’utilisation Manual de instrucciones Instrukcja obsługi Инструкции по эксплуатации Manual de utilização Manuale d’uso...
- Page 3 OPERATING MANUAL English © Kemppi Oy / 1152...
-
Page 4: Table Of Contents
................FastMig MF 33... -
Page 5: Preface
This operating manual contains important information on the use, maintenance and safety of your Kemppi product. The technical specifications of the equipment can be found at the end of the manual. Please read the manual carefully before using the equipment for the first time. For your own safety and that of your working environment, pay particular attention to the safety instructions in the manual. -
Page 6: Product Introduction

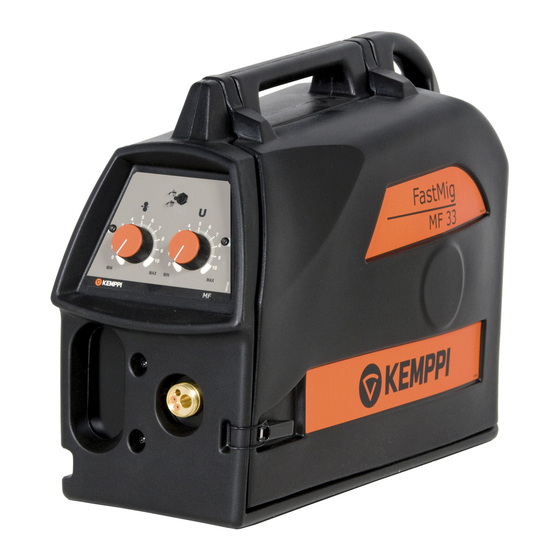

PRODUCT INTRODUCTION FastMig MF is basic wire feeder designed for demanding enviroment. It can be used with Kemppi's basic FastMig power sources KM 300, KM 400, and KM 500. Operation control and connectors Operation panel Shielding gas connection Connection of welding gun EURO... -
Page 7: Connection Of System
Connection of system © Kemppi Oy / 1152... -
Page 8: 4-Roll Wire Feed Mechanism
ø 28 mm (0–18 m/min) 4287860 steel Trapetsoid groove grey 2,0/2,0 (L) 3142230 ø 40 mm (0–25 m/min) 4265250 plastic black 2,4 (L) 3142240 ø 40 mm (0–25 m/min) 4297270 steel (L) = Fitted with ball bearings FastMig MF 33... -
Page 9: Installation
Check that in filler wire spool there are no parts sticking out, which could e.g. chafe against NOTE! chassis or door of wire feed unit. Dragging parts might expose chassis of wire feed unit under voltage. © Kemppi Oy / 1152... -
Page 10: Automatic Wire Feed To Gun
Use in your MIG equipment at least 70 mm². Thinner cross-sectional areas might cause overheating of connectors and insulations. Make sure that the welding gun in your use is designed for max. welding current needed by you! Never use a damaged welding gun! NOTE! FastMig MF 33... -
Page 11: Shield Gas
The flow rate is set according to the welding power used in the job. A suitable flow rate is normally 8 – 10 l/min. If the gas flow is not suitable, the welded joint will be sporous. Contact your local Kemppi-dealer for choosing gas and equipment. 3.9.1 Installing gas bottle... -
Page 12: Main Switch I/O
The owner of the equipment is obliged to deliver a decommissioned unit to a regional collection centre, per the instructions of local authorities or a Kemppi representative. By applying this European Directive you will improve the environment and human health. -
Page 13: Ordering Numbers
MMT 30W 4,5 m 6253044MMT MMT 42W 6254203MMT MMT 42W 4,5 m 6254204MMT MMT 52W 6255203MMT MMT 52W 4,5 m 6255204MMT Interconnecting cables KM 70-1.8-WH 6260411 KM 70-15-WH 6260412 KM 70-1.8-GH 6260413 KM 70-15-GH 6260414 © Kemppi Oy / 1152... -
Page 14: Technical Data
-20 ... +40 °C Storage temperature range -40 ... +60 °C EMC class Degree of protection IP23S External dimensions LxWxH 590x240x445 mm Weight 13.6 kg ¹) Changes of speed are carried out by changing gear wheel (D 28/D 40). FastMig MF 33... - Page 16 78681 EPONE CEDEX myynti.fi@kemppi.com info.ru@kemppi.com FRANCE Tel +33 1 30 90 04 40 KEMPPI SVERIGE AB KEMPPI, TRADING (BEIJING) COMPANY, Telefax +33 1 30 90 04 45 LIMITED Box 717 sales.fr@kemppi.com Room 420, 3 Zone, Building B, S-194 27 UPPLANDS VÄSBY No.12 Hongda North Street,...
