Installing Omizzy™

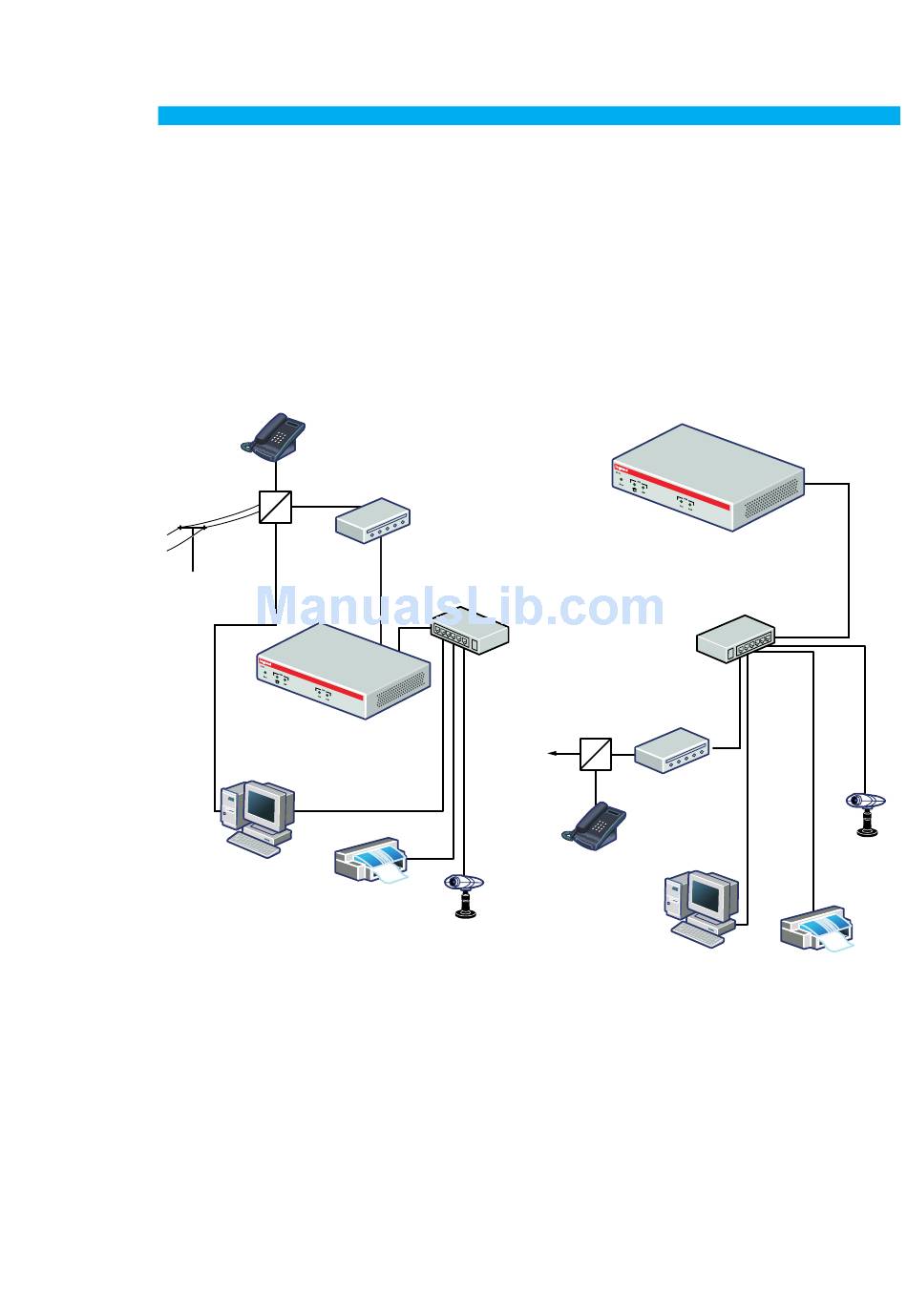

There are two recommended configurations for
communication outside the home, depending on the
type of communication network used:
- Using the standard telephone
network (STN line)
The MODEM is dedicated to the Omizzy™ server.
STN line
(TELECOM)
The V90 or V92 modem is connected to the serial
port of the server, for exclusive use.
(It cannot be common to the local PC and the Internet
server)
6
Telephone
Modem
LAN
local PC
With modem
Printer
- Use of a high-speed network
This configuration requires the presence of a local
area network (LAN)
RS232
Hub
Webcam
The modem is connected to a 10 BaseT Hub/Router,
linked to the server via the LAN connection.
Hub /
Routeur
High-speed
network
Modem
Telephone
local PC
LAN
Webcam
Printer
