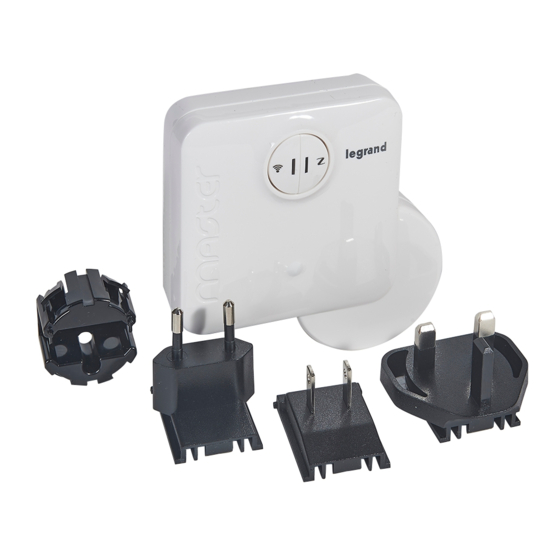

Web server
Features
Voltage:
100 - 240 Vac
Frequency:
50 - 60Hz
Zigbee technology:
Radio frequency band 2.4 GHz (16 channels) Bitrate: 250 KB/s
Self-healing MESH Network with high level of security
(AES128) according to IEEE 802.15.4 (LR-WPAN)
IP Wi-Fi Technology:
– IEEE 802.11 b/g/n (2.4 GHz) 13 channels
– Method of encryption and authentication supported:
OPEN networks
WPA-PSK, including TKIP
WPA2-PSK, including AES
WEP 64 bits (5 digit ASCII codes or 10 hexadecimal digits)
WEP 128 bits (13 digit ASCII codes or 26 hexadecimal digits)
WPA authentication (supported for WPA2-PSK)
– Hidden networks supported
Performance:
Capacity: 150 m in free field point to point
NOTE: it is recommended to install the Gateway Zigbee close to the Wi-Fi router
NOTE: it is possible install only one gateway Zigbee for each system
Installation
To use the Gateway Zigbee device download the free app "MyHomePlay" available on
Installation of the plug

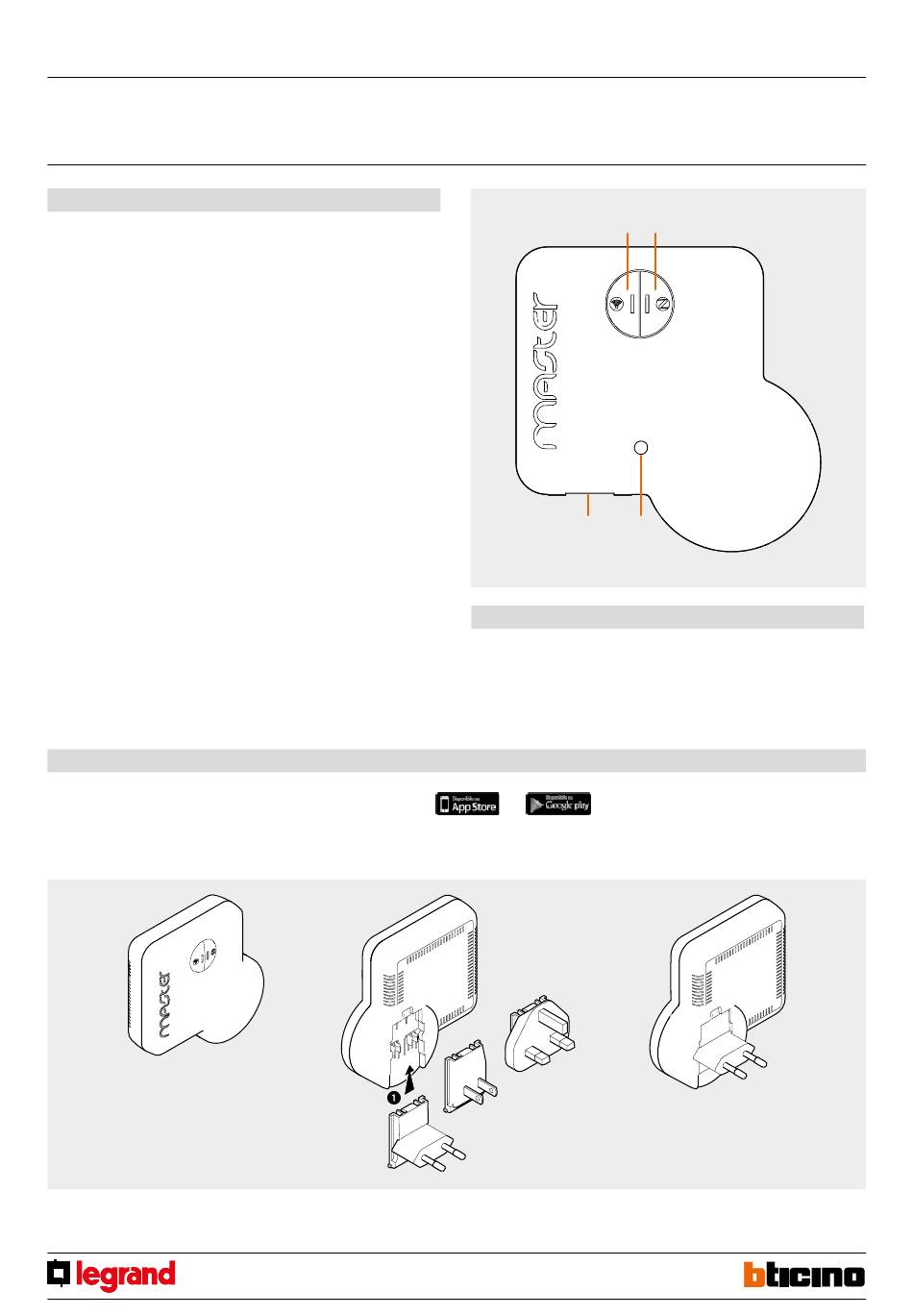

Front view
Legend
1. Button + LED Wi-Fi;
2. Button + LED network Zigbee;
3. RJ45 connector (for future use);
4. Fixed green LED = ON
and
MQ01020-a-EN
27/01/2016
BT-3583
1
2
3
4
.
LG-088310
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LEGRAND bticino BT-3583
Summary of Contents for LEGRAND bticino BT-3583
- Page 1 Web server BT-3583 LG-088310 Features Front view Voltage: 100 - 240 Vac Frequency: 50 - 60Hz Zigbee technology: Radio frequency band 2.4 GHz (16 channels) Bitrate: 250 KB/s Self-healing MESH Network with high level of security (AES128) according to IEEE 802.15.4 (LR-WPAN) IP Wi-Fi Technology: –...
- Page 2 Web server BT-3583 LG-088310 Installation of stabilizer for UNEL sockets. Configuration LED legend 0.06s 0.2s Fixed light Slow blinking Steady flashing. One per second. Rapid flashing Steady flashing. Two per second. 0.06s 0.06s 0.2s 0.06s 0.2s 0.2s 0.06s 0.06s Flashing mode 0.2s 0.2s 0.06s...
- Page 3 Web server BT-3583 LG-088310 Creation of Zigbee network Procedure to insert all devices on the same Zigbee network; the devices belonging to the same network can send and receive controls from each other. Creation 3 mm max. 3 mm max. Then press the NETW button briefly of a When the LEDs of all devices are flashing, briefly press the device to be added to the network: the cor-...
- Page 4 Web server BT-3583 LG-088310 Remove a device from the network Briefly press the NETW button Press and hold the NETW button for 10 seconds > 15" >5"<15" >2"<5" of the device to be removed: the LED until the orange LED turns off flashes quickly.
