Configuration (continued)

Lighting control

The light switch function is possible from the server
via the control of the CAD mains-borne signalling
product.
The dimmer function is possible by associating a
dimmer switch and a control interface with preset
levels.
Installation
- CAD :
"Lighting control" commands are transmitted via
the CAD link.
Each CAD product is coded with a group number
and a channel number.
Example of compatible products:

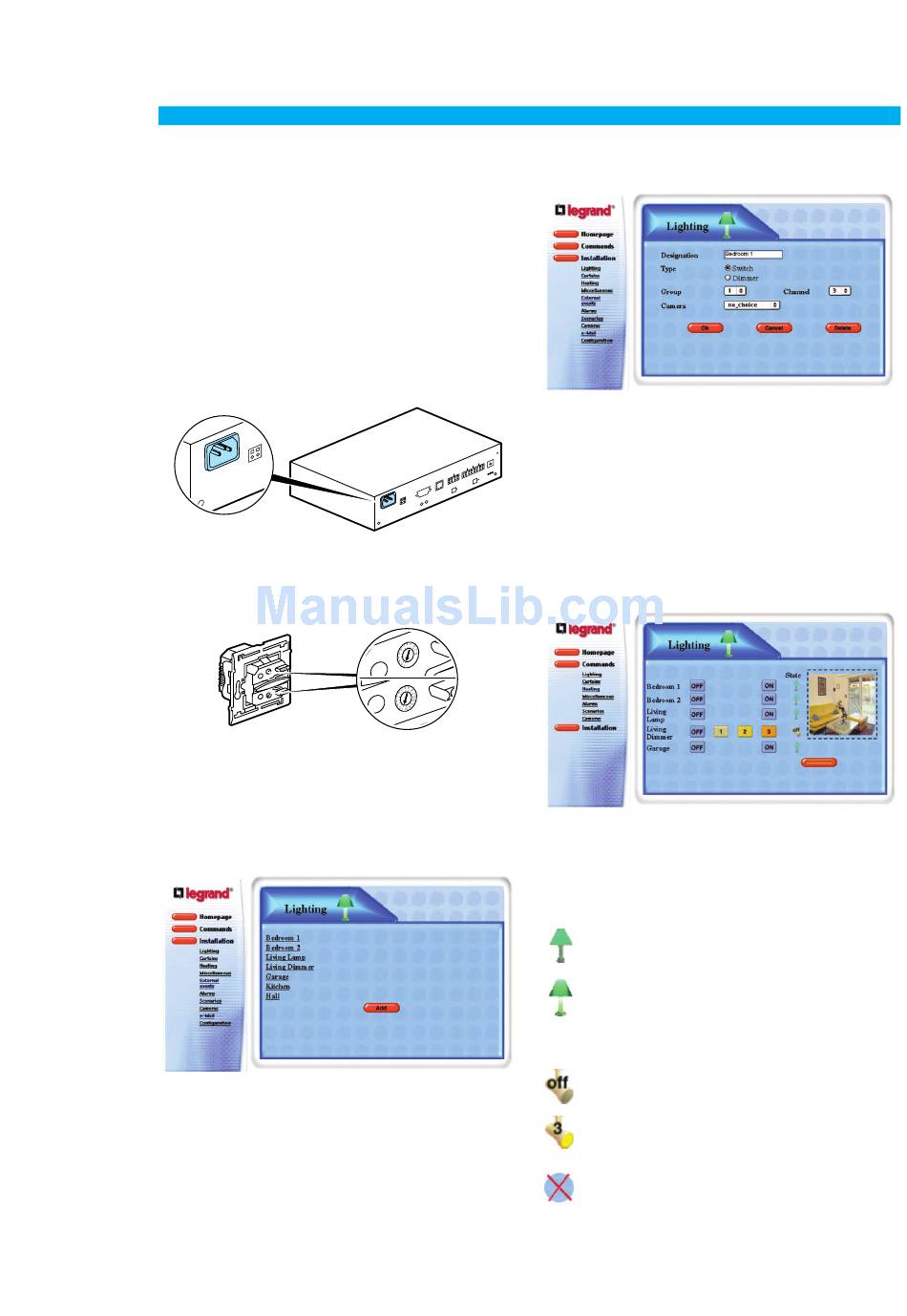

Configuring the Omizzy™ server
Click on "Installation", "Lighting".
Click on "Add" to add and configure a new item.
Click on the name of an existing item to change its
parameters.
12
~
0 V
- 4 0
S
1 0 0 H z
S C
6 0
5 0 /
D
C A
Channel
selector
Group
selector
- 841 13,
- 036 57/62/70 + 036 15.
Give the "Lighting" a name and then indicate
the type of lighting control ("Switch" or "Dimmer").
Enter the channel and group settings of the switch.
e r
P o w
V
- 1 2
7 ,5
1 A
4
3
2
1
It is also possible to associate a camera with
2
1
the device, in order to display the image of the house
N
L A
I
I I
~
0 V
-4 0
S
1 0 0 z S C
0 H
5 0 /6
during remote viewing.
D
C A
From the "Control/Lighting" menu it is then possible
to control the switching on/off of the various
products which are connected.
Each time a command is given, the states of the lights
are displayed, then updated every 10 minutes.
Light status icons:
Switch
Dimmer
: Light off;
: Light on ;
: Light off;
: Light on at indicated preset level;
: Indicates that no signal is being received.
