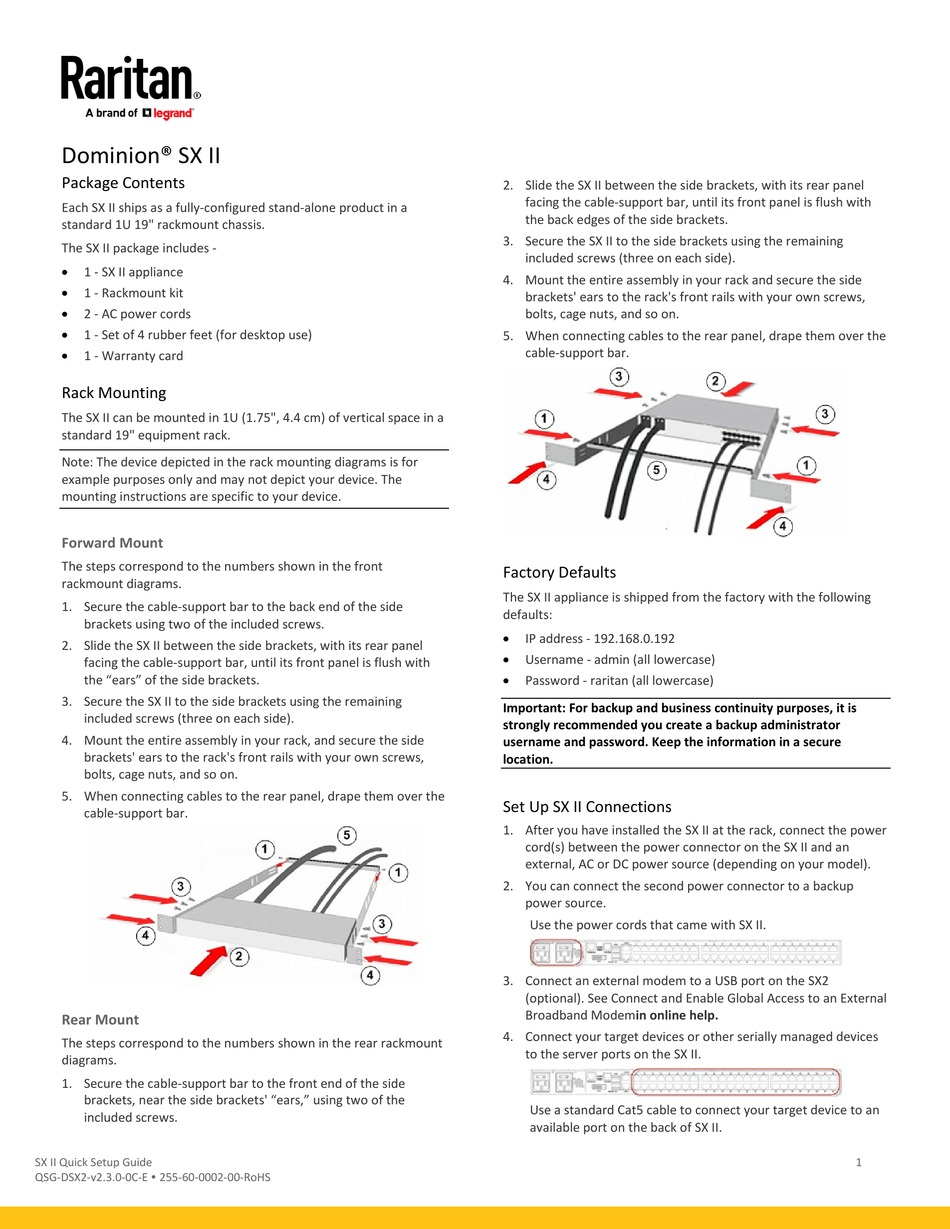

Dominion® SX II
Package Contents
Each SX II ships as a fully-configured stand-alone product in a
standard 1U 19" rackmount chassis.
The SX II package includes -
• 1 - SX II appliance
• 1 - Rackmount kit
• 2 - AC power cords
• 1 - Set of 4 rubber feet (for desktop use)
1 - Warranty card
•
QS Rule
Rack Mounting
The SX II can be mounted in 1U (1.75", 4.4 cm) of vertical space in a
standard 19" equipment rack.
Note: The device depicted in the rack mounting diagrams is for
example purposes only and may not depict your device. The
mounting instructions are specific to your device.
Forward Mount
The steps correspond to the numbers shown in the front
rackmount diagrams.
1. Secure the cable-support bar to the back end of the side
brackets using two of the included screws.
2. Slide the SX II between the side brackets, with its rear panel
facing the cable-support bar, until its front panel is flush with
the "ears" of the side brackets.
3. Secure the SX II to the side brackets using the remaining
included screws (three on each side).
4. Mount the entire assembly in your rack, and secure the side
brackets' ears to the rack's front rails with your own screws,
bolts, cage nuts, and so on.
5. When connecting cables to the rear panel, drape them over the
cable-support bar.
Rear Mount
The steps correspond to the numbers shown in the rear rackmount
diagrams.
1. Secure the cable-support bar to the front end of the side
brackets, near the side brackets' "ears," using two of the
included screws.
SX II Quick Setup Guide
QSG-DSX2-v2.3.0-0C-E  255-60-0002-00-RoHS
2. Slide the SX II between the side brackets, with its rear panel
facing the cable-support bar, until its front panel is flush with
the back edges of the side brackets.
3. Secure the SX II to the side brackets using the remaining
included screws (three on each side).
4. Mount the entire assembly in your rack and secure the side
brackets' ears to the rack's front rails with your own screws,
bolts, cage nuts, and so on.
5. When connecting cables to the rear panel, drape them over the
cable-support bar.
QS Rule
Factory Defaults
The SX II appliance is shipped from the factory with the following
defaults:
• IP address - 192.168.0.192
Username - admin (all lowercase)
•
Password - raritan (all lowercase)
•
Important: For backup and business continuity purposes, it is
strongly recommended you create a backup administrator
username and password. Keep the information in a secure
location.
QS Rule
Set Up SX II Connections
1. After you have installed the SX II at the rack, connect the power
cord(s) between the power connector on the SX II and an
external, AC or DC power source (depending on your model).
2. You can connect the second power connector to a backup
power source.
Use the power cords that came with SX II.
3. Connect an external modem to a USB port on the SX2
(optional). See Connect and Enable Global Access to an External
Broadband Modemin online help.
4. Connect your target devices or other serially managed devices
to the server ports on the SX II.
Use a standard Cat5 cable to connect your target device to an
available port on the back of SX II.
