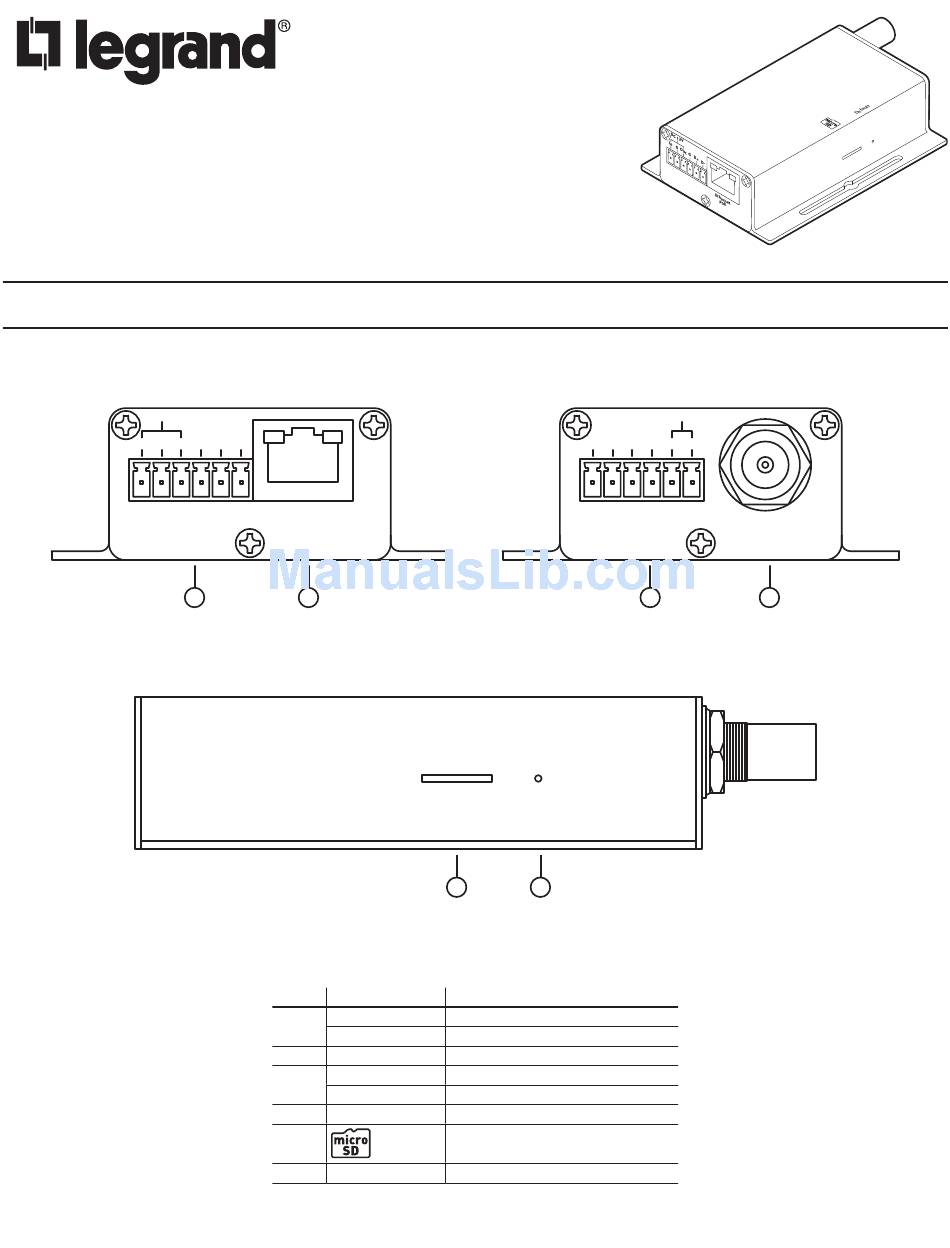

One-Camera IP Video Server
Installation Instructions
Part Number:
CM2002 - One-Camera IP Video Server
CM2002 IP Video Server Features
DC 12V
In G Out G D+ D-
1
Ethernet
PoE
2
Fig. 1 Front View
No.
Label
DC 12V
1
D+/D-
2
Ethernet PoE
DI/DO
3
Audio
4
Video In
5
6
Default
DO G DI G Out In
5
6
Fig. 3 Side View
Operation
12 VDC in/out connection ports
RS485 connection port
RJ-45 connection port
DI/DO connection port
Audio in/out connection ports
BNC video-in signal connection port
Micro SD card slot
Factory default reset button
Audio
Video In
3
4
Fig. 2 Back View
1507280
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for LEGRAND CM2002
Summary of Contents for LEGRAND CM2002
- Page 1 One-Camera IP Video Server Installation Instructions 1507280 Part Number: CM2002 - One-Camera IP Video Server CM2002 IP Video Server Features DC 12V Audio In G Out G D+ D- DO G DI G Out In Ethernet Video In Fig. 1 Front View Fig.
-
Page 2: Installation
Introduction The CM2002 One-Camera IP Video server converts an analog video source into an IP video stream. The Legrand Intuity app auto-discovers the IP Video Server for easy integration of the SCI Video Door Unit with the app. Connect your compatible devices and move another step closer to the total home control experience. - Page 3 STEP 1: Connect the CM2002 to a power source. STEP 2: Connect a PC or a PoE switch/network video recorder (NVR) to the CM2002 Ethernet connection port using an Ethernet cable. STEP 3: Configure the network settings according to the network environment being used.
- Page 4 Assigning the Device IP Addresses STEP 1: Locate the mini-CD in the package contents. STEP 2: Insert the mini-CD into a PC. STEP 3: Open the Applications folder on the mini-CD and choose IP Scanner. Note: The IP Scanner software supports multiple languages. This manual addresses the English version of the software. STEP 4: Choose an IP configuration.
- Page 5 ○ Select OK to apply any changes and reboot the device. (Fig. 10) Fig. 10 Rebooting Notification STEP 7: Confirm the subnet of the PC IP address and the IP device IP address are the same. Correct subnet configuration example Incorrect subnet configuration example IP device IP address: 192.168.1.200 IP device IP address: 192.168.2.200...
-
Page 6: Resetting To The Factory Default
Follow these steps to reset the CM2002 to default values. STEP 1: Disconnect the power cord and Ethernet cable. STEP 2: Locate the Default label on the CM2002. The default button is inside the hole located directly under the label. (Fig. 14) Fig. 14 Default button STEP 3: Push the end of a paper clip into the hole to engage the button. -
Page 7: Package Contents
Package contents Video Server Installation Instructions CD (mini) CM2002 Digital I/O RCA/BNC AC Adapter Connector Cable Assembly Velcro Pad Anchor Screws Micro SD card Compatibility List Micro SD Card Recommended: Transcend SanDisk SDHC class 4 16 GB SDHC class 4 8 GB... - Page 8 Graphic card: 128 MB Ethernet 10/100 Base-T Network Protocol IPv6, IPv4, HTTP, HTTPS, SNMP, QoS/ Legrand reserves the right to change specifications without notice. DSCP, Access list, IEEE 802.1X, RTSP, TCP/ IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, SAMBA, Bonjour System...
- Page 9 CM2002 Dimensions 1.97 in. (50 mm) Audio DO G DI G Out In 1.06 in. (27 mm) Video In 2.76 in. (70 mm) 3.85 in. (97.9 mm)
- Page 10 1507280 REV. A 20180306...
