Galaxy Installation Manual
SERVERS

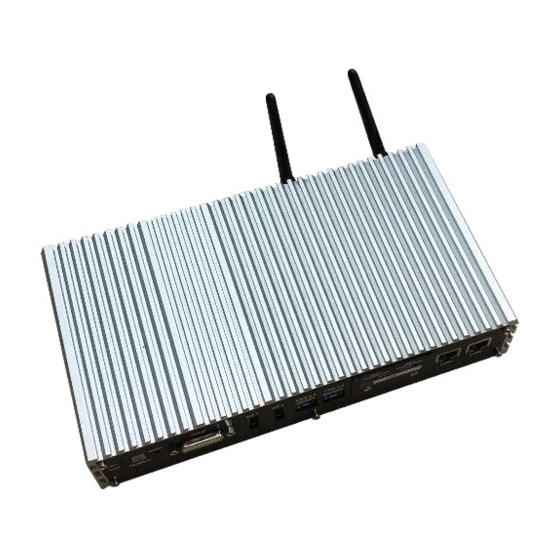

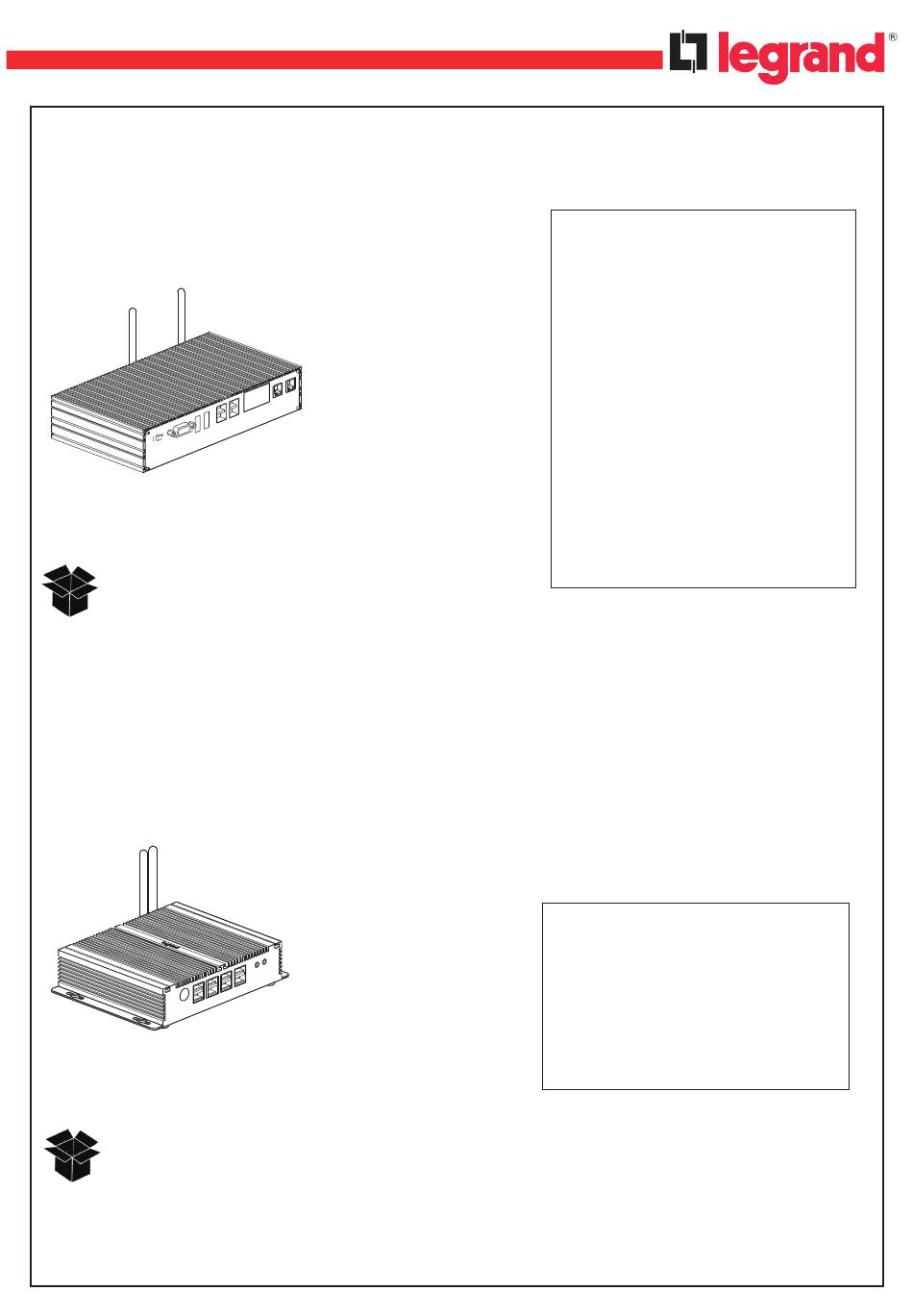

Large server (Cat. No: 659182)
■
Server unit (x 1)
■
Antenna (x 2)
■
Mains power supply adapter and cable - Black (x 1)
■
Connectors - Green (x 3)
■
Mounting bracket (x 2)
■
Mounting screws (x 4 pcs)
Medium server (Cat. No: 659181) / Small server (Cat. No: 659180)
■
Server unit (x 1)
■
Antenna (x 2)
■
Mains power supply adapter and cable-Black (x 1)
■
Mounting screws (x 4 pcs)
Power button LED indicator
■
Amber - Standby power
■
Blue
- Power ON
■
OFF
- Power OFF
HDD LED
■
Flashing during hard drive activity
PWR LED indicator
■
Green - Power ON
■
OFF - Power OFF
4 LAN Ports
Power button LED indicator
■
Blue - Power ON
■
OFF - Power OFF
2 LAN Ports
(Small server)
