Thank you for purchasing Dominion User Station. The user station is a high-performance appliance dedicated to access Raritan's
enterprise-class Dominion KVM-over-IP switches with anytime, anywhere access.
This Quick Setup Guide explains how to install and configure the Dominion User Station. For further details on using the Dominion
User Station, access online help from the application, or download the user guide from Raritan's Support page
(http://www.raritan.com/support/).
Package Contents
•
Dominion User Station hardware
•
Power adapter
•
VESA mount kit
•
Quick Setup Guide
•
L-type rackmount kit (optional)
Note: To mount the User Station in a 19-inch data center rack, you must purchase the L-type rackmount kit from Raritan. Refer to the online help
or user guide for rackmount instructions.
QS Rule

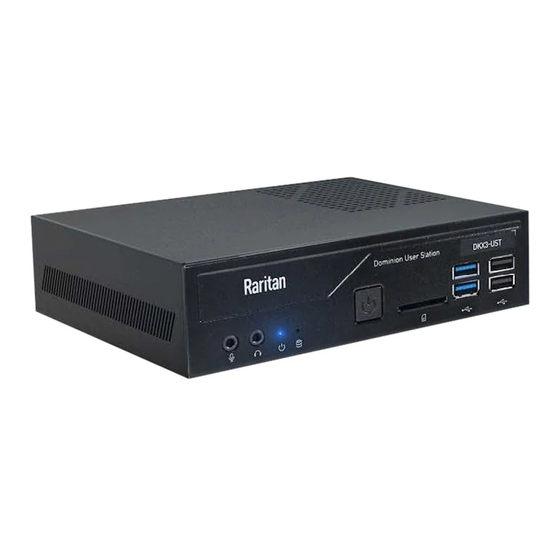

Front View
DKX4-UST:
DKX3-UST Version 2:
DKX3-UST Version 1:
QS Rule
Rear View
DKX4-UST:
KX3-KX4 Dominion User Station QSG
QSG-DKX3UST-DKX4UST-1G-v4.2.0  255-62-0010-00 RoHS
DKX3-UST AND DKX4-UST QUICK SETUP GUIDE
1. Microphone input
2. Audio output
3. Power LED
4. Hard disk LED
5. Power button
6. SD card reader
7. USB 2.0 and 3.1* ports
*KX4-UST and KX3-UST Version 2
models only
1. RS232/RS422/RS485
2. RS232
3. DC power input
4. Gigabit LAN port 1
5. Gigabit LAN port 2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Raritan DKX3-UST and is the answer not in the manual?

Questions and answers

Related Manuals for LEGRAND Raritan DKX3-UST

Summary of Contents for LEGRAND Raritan DKX3-UST

  • Page 1 DKX3-UST AND DKX4-UST QUICK SETUP GUIDE Thank you for purchasing Dominion User Station. The user station is a high-performance appliance dedicated to access Raritan's enterprise-class Dominion KVM-over-IP switches with anytime, anywhere access. This Quick Setup Guide explains how to install and configure the Dominion User Station. For further details on using the Dominion User Station, access online help from the application, or download the user guide from Raritan's Support page (http://www.raritan.com/support/).

  • Page 2: Side View

    6-7. USB Ports DKX3-UST Version 2: KX3-UST and KX3-UST Version 2: USB 2.0, 3.0 KX4-UST only: USB 3.1 8. DisplayPort (DP) video 1 9. DisplayPort (DP) video 2 10. HDMI video DKX3-UST Version 1: 11. Connector for external power button QS Rule Side View 2.

  • Page 3: Step 1: Connect The Equipment

    4. Tighten two sides securely using four appropriate screws. DisplayPort and HDMI transmit both video and audio signals. Your monitors must support the audio transmission if audio is intended. Maximum of 2 monitors supported.  DKX4-UST: 5. The Dominion User Station is now securely attached to the monitor.
  • Page 4 Select the authentication Changing the default password is enforced at first login. For method. details on password changes, see Change Password. Normal: You must enter login credentials for the KVM switch. Allow LDAP single sign-on: When users, KVM switches, and the Dominion User Station have the same LDAP environment, single sign-on can be used.
  • Page 5 Step 5: Use the KVM Client  To access a KVM switch's ports: 1. Click a KVM switch in the Devices panel. The KVM Client window opens after accessing a port. The video of the target server that is connected to the port is displayed in the KVM Client.

  • Page 6: Button Function

     To configure basic network settings: Button Function 1. Choose Main Menu > System Settings > Network. External Device Settings: Access the settings for operating an external device.. View: Shows several display options, such as Scale Video and Full-Screen Mode. The right group comprises the following shortcut buttons for frequently-used functions.

  • Page 7: Additional Information

    3. Click the IPv4 Settings tab. 4. In the Method field, select one of the following options: ▪ Automatic (DHCP): The DHCP server automatically assigns an IPv4 address. This is the default. ▪ Automatic (DHCP) addresses only: The DHCP server automatically assigns the IP address only.
