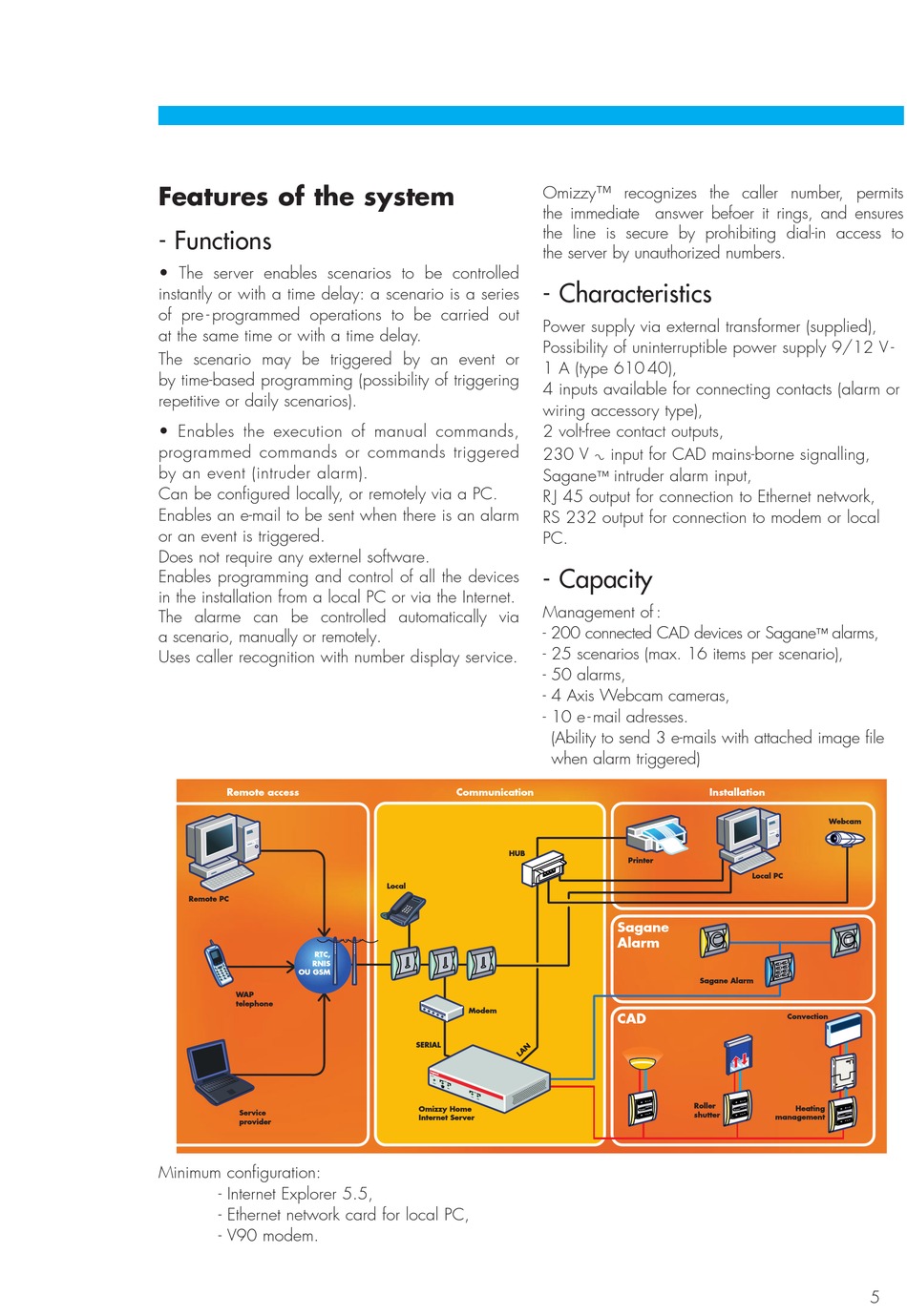

Features Of The System - LEGRAND Omizzy User Manual

Features of the system

- Functions
• The server enables scenarios to be controlled
instantly or with a time delay: a scenario is a series
of pre - programmed operations to be carried out
at the same time or with a time delay.
The scenario may be triggered by an event or
by time-based programming (possibility of triggering
repetitive or daily scenarios).
• Enables the execution of manual commands,
programmed commands or commands triggered
by an event (intruder alarm).
Can be configured locally, or remotely via a PC.
Enables an e-mail to be sent when there is an alarm
or an event is triggered.
Does not require any externel software.
Enables programming and control of all the devices
in the installation from a local PC or via the Internet.
The alarme can be controlled automatically via
a scenario, manually or remotely.
Uses caller recognition with number display service.
Remote access
Remote PC
RTC,
RNIS
OU GSM
WAP
telephone
Service
provider
Minimum configuration:
- Internet Explorer 5.5,
- Ethernet network card for local PC,
- V90 modem.
Omizzy™ recognizes the caller number, permits
the immediate answer befoer it rings, and ensures
the line is secure by prohibiting dial-in access to
the server by unauthorized numbers.
- Characteristics
Power supply via external transformer (supplied),
Possibility of uninterruptible power supply 9/12 V -
1 A (type 610 40),
4 inputs available for connecting contacts (alarm or
wiring accessory type),
2 volt-free contact outputs,
230 V
Sagane
R J 45 output for connection to Ethernet network,
RS 232 output for connection to modem or local
PC.
- Capacity
Management of :
- 200 connected CAD devices or Sagane
- 25 scenarios (max. 16 items per scenario),
- 50 alarms,
- 4 Axis Webcam cameras,
- 10 e - mail adresses.
(Ability to send 3 e-mails with attached image file
when alarm triggered)
Communication
HUB
Local
Modem
SERIAL
Omizzy Home
Internet Server
input for CAD mains-borne signalling,
±
intruder alarm input,
™
Installation
Printer
Local PC
Sagane
Alarm
Sagane Alarm
CAD
Roller
shutter
alarms,
™
Webcam
Convection
Heating
management
5
