ClearOne XAP 400 Datasheet

CONVENIENT REMOTE
CONTROL OF PRESETS,
MACROS AND VOLUME

CONTROL PANEL

U
Provides convenient remote control of PSR1212 Digital Matrix Mixer
and XAP 800/400 Audio Conferencing System. ClearOne's Control
Panel triggers pre-programmed commands from the host unit,
simplifying volume control, presets and macro executions.
CONTROL PANEL

APPLICATIONS

Boardrooms
Conference Rooms
Classrooms
Conference Halls
Hotels and Convention Centers
Public Address Systems
Houses of Worship
Room Combining Systems

CONTROL PANEL ADVANTAGES

Convenience
+ Provides remote control of zoning, volume and other functions of PSR1212
Digital Matrix Mixer and XAP 800/400 Audio Conferencing System
+ Simplifies operation by executing pre-programmed commands
+ Easy-to-use software programs each button to execute a function,
command, series of commands, preset or macro
+ Installs in a standard electrical switch-type wall box*
+ Can be combined in a 2, 3, or 4-ganged switch box
+ Comes with pre-punched facia plate, faceplate, PCB, connector blocks
and low-voltage electrical box
+ Available in two models: Volume Control and Select Control

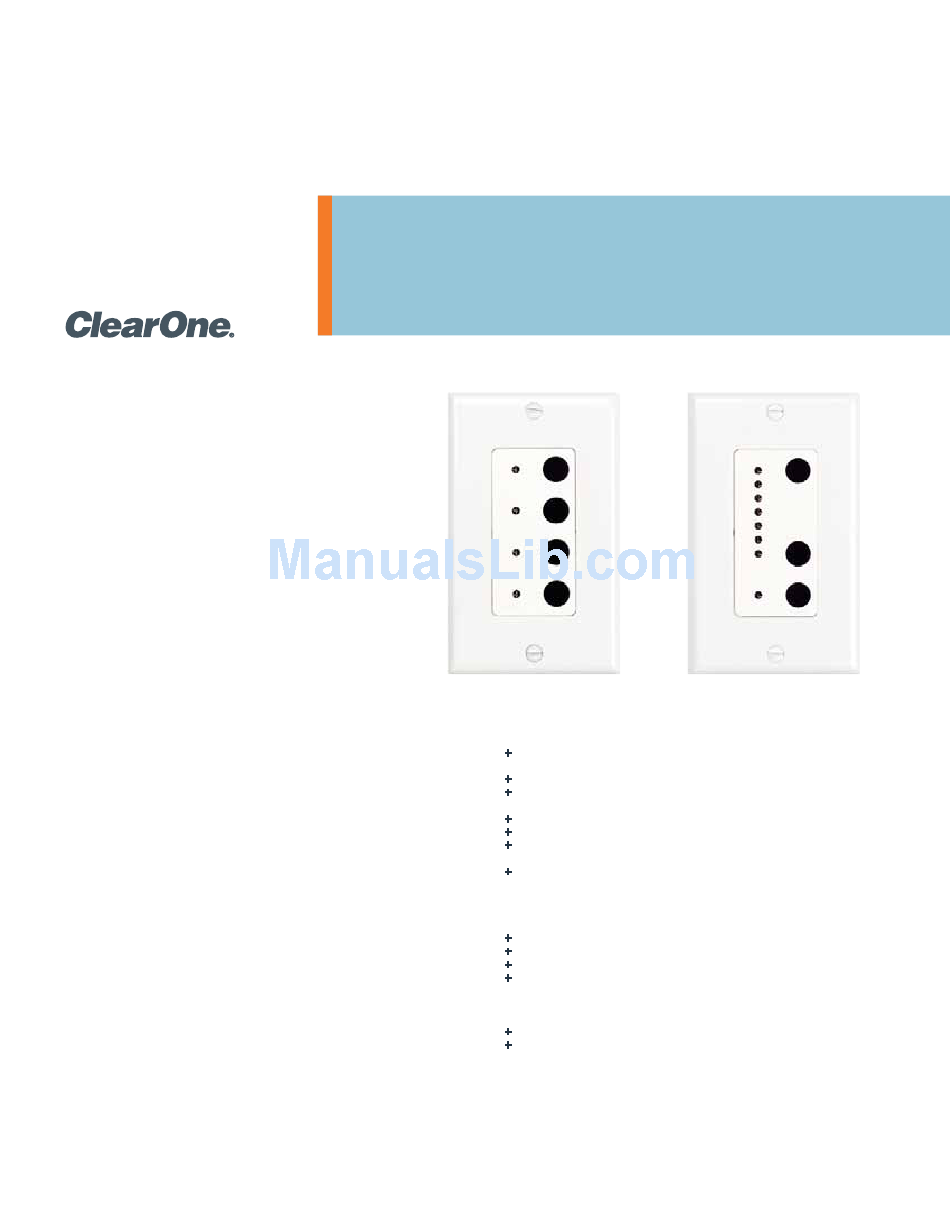

Volume Control Panel
+ Volume up and down buttons
+ Seven easy-to-see LEDs indicating channel volume level
+ Programmable button for mute, combined, background music and more
+ Red status LED indicates execution of a command
Select Panel
+ Four programmable buttons
+ Four red status LEDS indicate execution of commands
Note: Control panel must not be used with an AC power switch or plug
in the same box.
PROFESSIONAL CONFERENCING
DATA SHEET
<
