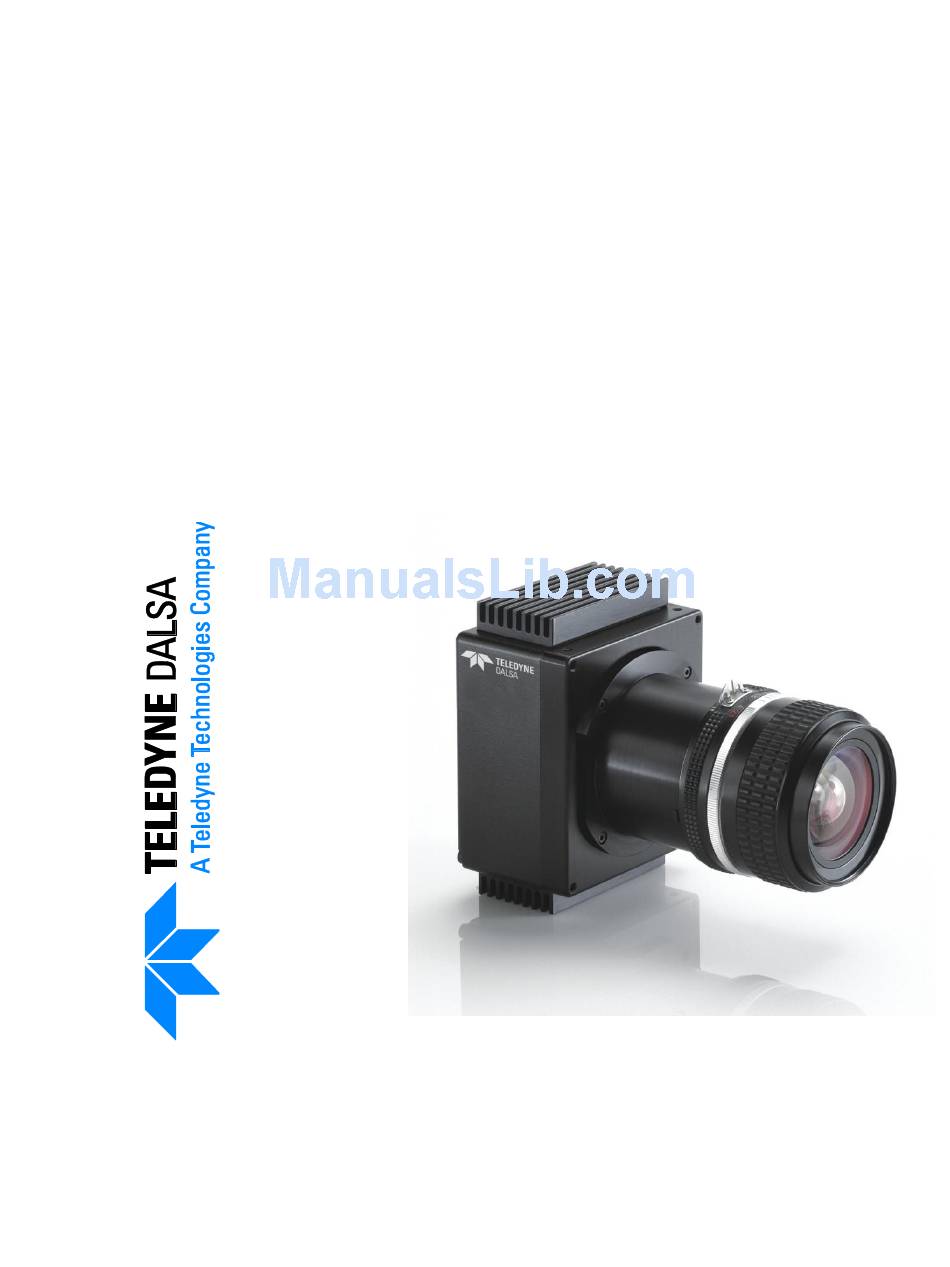

Piranha Color Camera
1
Piranha Color
Trilinear Camera
PC-30-02K80-00-R
PC-30-02K60-00-R
PC-30-04K80-00-R
PC-30-04K60-00-R
Camera User's Manual
03-032-10211-08
3-Jun-11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DALSA Piranha PC-30-02K80-00-R and is the answer not in the manual?

Questions and answers

Related Manuals for Teledyne DALSA Piranha PC-30-02K80-00-R

Summary of Contents for Teledyne DALSA Piranha PC-30-02K80-00-R

  • Page 1 Piranha Color Camera Piranha Color Trilinear Camera PC-30-02K80-00-R PC-30-02K60-00-R PC-30-04K80-00-R PC-30-04K60-00-R Camera User’s Manual 03-032-10211-08 3-Jun-11...
  • Page 2 Piranha Color Camera © 2011 Teledyne DALSA. All information provided in this manual is believed to be accurate and reliable. No responsibility is assumed by Teledyne DALSA for its use. Teledyne DALSA reserves the right to make changes to this information without notice.

  • Page 3: Table Of Contents

    Piranha Color Camera Contents Features and Specifications 1.0 Introduction 1.1 Camera Performance Specifications 1.2 Image Sensor 1.3 Responsivity Hardware Interface: Connectors and Timing 2.1 Installation Overview 2.2 Input/Output Connectors and LED 2.3 Camera LED 2.4 Power Connector 2.5 Camera Link Data Connector 2.6 Camera Timing Software Interface: Configuring the Camera 3.1 First Power Up Camera Settings...
  • Page 4 Piranha Color Camera Appendix A: ASCII Command Reference Appendix B: Blue Correction Command Appendix C: EMC Declaration of Conformity Appendix D: Revision History Index...

  • Page 5: Features And Specifications

    High-end industrial inspection. Models Model Number Description PC-30-02k60-00-R 2k resolution, 3 taps at 60 MHz PC-30-02k80-00-R 2k resolution, 3 taps at 80 MHz PC-30-04k60-00-R 4k resolution, 3 taps at 60 MHz PC-30-04k80-00-R 4k resolution, 3 taps at 80 MHz 1.1 Camera Performance Specifications 2k Model Performance Specifications Test conditions and notes follow.
  • Page 6 Piranha Color Camera Sensor Features Value Pixel Fill Factor 100% Pixel Size 14 x 14 µm Antiblooming Operating Ranges Value Minimum Line Rate 3.0 kHz (Operable to 1 Hz from external) Maximum Line Rate 22.7 kHz (2k60) or 32.3 kHz (2k80) Pixel RGB Throughput Up to 80 Mps Gain...
  • Page 7 Piranha Color Camera 2k Model Operating Specifications Test conditions and notes follow. All numbers measured at 12-bit unless specified otherwise. Operating Specifications Unit Color -10dB +10dB Responsivity DN/(nJ/cm²) 1264 Responsivity DN/(nJ/cm²) 1580 Dynamic Range Ratio Random Noise DN rms DC Offset DN p-p DN p-p PRNU global...
  • Page 8 Piranha Color Camera 4k Model Performance Specifications Test conditions and notes follow. All numbers 12 bit unless specified otherwise. Sensor Features Value Imager Format Trilinear CCD Resolution 4096 pixels Pixel Fill Factor 100% Pixel Size 10 x 10 µm Antiblooming 100x Operating Ranges Value...
  • Page 9 Piranha Color Camera 4k Model Operating Specifications Test conditions and notes follow. All numbers measured at 12-bit unless specified otherwise. Operating Specifications Unit Color -10dB +10dB Responsivity DN/(nJ/cm²) Responsivity DN/(nJ/cm²) Dynamic Range Ratio Random Noise DN rms DC Offset DN p-p DN p-p PRNU global DN p-p...
  • Page 10 Piranha Color Camera Specification tables test conditions and notes 2k and 4k models:  Line Rate: 400 Hz.  Exposure Time (µs): -10 dB 1600 1920 0 dB +10 dB  Light Source: Broadband Quartz Halogen, BG-38, with 750nm cutoff filter installed, Correction Color Temperature = 5300°K.

  • Page 11: Image Sensor

    Piranha Color Camera 1.2 Image Sensor The Piranha Color camera uses a trilinear CCD sensor with three lines of pixels: one blue, one red and one green. Depending on your camera model, each line contains either 2048 or 4096 pixels. As illustrated in the diagram below, the blue line has 2 outputs (taps), and the red and green lines have 4 outputs.

  • Page 12: Responsivity

    Piranha Color Camera 1.3 Responsivity 2K Spectral Responsivity, FFC on Blue Green 1000 1100 Wavelength (nm) 4K Spectral Responsivity, FFC on Blue Green 1000 1100 Wavelength (nm)

  • Page 13: Hardware Interface: Connectors And Timing

    Piranha Color Camera Hardware Interface: Connectors and Timing 2.1 Installation Overview When installing your camera, you should take these steps: 1. Power down all equipment. 2. Following the manufacturer’s instructions, install the frame grabber (if applicable). Be sure to observe all static precautions. 3.

  • Page 14: Camera Led

    Piranha Color Camera Note: Refer to the following sections for details on equipment recommendations and camera connector information. 2.3 Camera LED The camera is equipped with a red/green LED used to display the operational status of the camera. The table below summarizes the operating states of the camera and the corresponding LED states.

  • Page 15: Camera Link Data Connector

    Piranha Color Camera 2.5 Camera Link Data Connector Figure 3: Camera Link MDR26 Connector Input Signals, Camera Link The camera accepts control inputs through the Camera Link MDR26F connector. The camera ships in internal sync, internal programmed integration (exposure mode 2). EXSYNC (Triggers Line Readout) Line rate can be set internally using the serial interface.
  • Page 16 Piranha Color Camera  Serializer bit width: 28.  Number of chips: 1.  Number of MDR26 connectors: 1. Base Configuration One Channel Link Chip + Camera Control + Serial Communication Camera Right Angle Channel Link Connector Frame Grabber Signal inner shield inner shield Xclk-...
  • Page 17 Piranha Color Camera 14.5 14.5 8-11 8-11 19.3 19.3 8-11 8-11 Figure 4: Base Configuration EXSYNC Line and Data Valid Pixel Clock 40 or 80MHz Rn 1 Rn Rn 2 Rn 4 Rn 3 RED Data Gn 4 Gn 2 Gn 1 Gn Gn 3 GREEN Data...
  • Page 18 Piranha Color Camera Medium Configuration (Connector 2) 2 Channel Link Chips Camera Right Angle Channel Link Cable Name Connector Signal Frame Grabber PAIR5+ terminated PAIR6+ terminated PAIR6- PAIR7- PAIR7+ PAIR8- PAIR8+ PAIR9+ PAIR9- Zclk- PAIR10- Zclk+ PAIR10+ PAIR11+ PAIR11- inner shield Inner Shield inner shield Inner Shield...
  • Page 19 Piranha Color Camera Medium Configuration Timing Medium Configuration Connector 1 Connector 2 Maximum SSF8 Bits Taps Port Port B Port C Port D Port E Port F 2k60 4k60 2k80 4k80 22.7 12.1 28.6 14.5 31.8 17.5 14.5 14.5 19.3 19.3 22.7 12.1...
  • Page 20 Piranha Color Camera Figure 6: Medium Configuration (12 Bits/Color/Pixel) EXSYNC Line and Data Valid Pixel Clock 40 or 80MHz Rn 1 Rn Rn 2 Rn 4 Rn 3 RED Data Gn 1 Gn Gn 4 Gn 2 Gn 3 GREEN Data Bn 2 Bn 1 Bn Bn 4...

  • Page 21: Software Interface: Configuring The Camera

    Piranha Color Camera Software Interface: Configuring the Camera Using ASCII Commands All of the camera’s functionality is configurable through its serial interface using the three-letter commands. You can use any terminal program (e.g. HyperTerminal) to send serial commands to the camera; however, you must comply with the following serial protocol: ...

  • Page 22: Rebooting The Camera

    Piranha Color Camera  9600 baud rate.  Exposure mode 2: Internal sync and exposure control.  RGB color selection.  Camera Link mode 5: base configuration, RGB, 8 bit output. Note: The FPN and PRNU coefficients are factory calibrated at 0 dB gain setting 0. The FFC calibration line rate is 400 Hz.
  • Page 23 Piranha Color Camera There are two different help screens available. One lists all of the available commands to configure camera operation. The other help screen lists all of the commands available for retrieving camera parameters (these are called ―get‖ commands). To view the help screen listing all of the camera configuration commands, use the command: Syntax:...

  • Page 24: Sensor Output

    Piranha Color Camera reset camera reset input lut region of interest 1-2048:1-2048 reset pixel coeffs set add background 0-0:0-4095 set analog gain 0-0:-10.0-+10.0 set averaging horizontal set analog offset 0-0:0-255 set baud rate 9600/19200/57600/ 115200/ select cable 0-255 set colour correction iiii 0-+4095:-8192- +8191:-8192- +8191:-8192-+8191...
  • Page 25 Piranha Color Camera 1 = Reverse CCD shift direction. 2 = External direction control via Camera Link control: CC3 (CC3=1 forward, CC3=0 reverse). Notes: To obtain the current value of the shift direction, use the command gcp or get scd Related Commands: Example: scd 0...

  • Page 26: Data Output

     The bit patterns are defined by the Camera Link Roadmap and the Camera Link Standard. Available from the Knowledge Center on the Teledyne DALSA site, here. Example: clm 5 Setting the Camera’s Pixel Rate (Throughput)

  • Page 27: Set Color Correction

     The bit patterns are defined by the Camera Link Roadmap and the Camera Link Standard. Available from the Knowledge Center on the Teledyne DALSA site, here.  Changes to the clm may affect this parameter.

  • Page 28: Camera Selection Variables

    Piranha Color Camera 3.9 Camera Selection Variables There are some camera condition variables that you should determine before adjusting any digital or analog settings like gain or offset, or before changing the camera’s exposure time. These variables are:  The color (or colors) that you want to adjust. ...

  • Page 29: Exposure Control

    Piranha Color Camera Example: ssn 3 Setting a Region of Interest (ROI) Purpose: Sets the pixel range used to collect the end-of-line statistics and sets the region of pixels used in the ccg, gl, gla, ccf, and ccp commands. In most applications, the field of view exceeds the required object size and these extraneous areas should be ignored.
  • Page 30 Piranha Color Camera Table 4: Color Exposure Modes Mode SYNC Exposure Description Control Internal Internal Each color may have a different exposure time. External None All colors share the same exposure time. External External Smart EXSYNC. All colors share same exposure time. External External Each color may have a different exposure time.
  • Page 31 Piranha Color Camera Exposure Modes in Detail...
  • Page 32 Piranha Color Camera Setting the Line Rate Purpose: Sets the camera’s line rate in Hz. Camera must be operating in exposure mode 2 or 7. Syntax: ssf f Applies to Modes 2 and 7 Syntax Elements: Desired line rate in Hz. Allowable values are: 2k80: 1 to 32362 Hz 2k60: 1 to 22714 Hz 4k80: 1 to 17699 Hz...

  • Page 33: Spatial Correction

    Piranha Color Camera Related Commands: sem, ssf Example: set 400.5 3.11 Spatial Correction Spatial Correction and Trilinear Sensor Design The trilinear sensors three color lines do not share a common optical axis. This results in the three color lines imaging three separate object points. As a result, the color images need to be stored, delayed and recombined to properly reconstruct the color image.
  • Page 34 Piranha Color Camera Blue Tap The three color lines are separated 30 µm (4k) 30 µm (4k) or 42 µm (2k) apart Red Tap 2 42 µm (2k) Green Tap center-to-center. 30 µm (4k) 42 µm (2k) Red Tap Green Tap 2 The trilinear CCD sensor used in the Piranha Color camera has three linear arrays for Red (R), Green (G) and Blue (B) color channel, respectively.

  • Page 35: Averaging Horizontal Pixels

    Piranha Color Camera The Piranha Color is a bi-directional camera and the direction of the web movement can be arranged in either way. If the object is passing the camera in the other direction, its image will pass over the Blue channel first, then the Green channel, and finally the Red channel.

  • Page 36: Processing Chain Overview And Description

    Piranha Color Camera Notes:  Selecting sah 1 results in no averaging.  Selecting sah 2 averages pairs of pixels: (P1+P2)/2, (P3+P4)/2, (P5+P6)/2…  If you are using averaging, the minimum, maximum, and mean statistics generated by the gl or gla commands and used by the ccg, cao, ccf, and ccp commands are for the un-averaged pixels.

  • Page 37: Digital Processing

    Piranha Color Camera Analog Processing  Optimizing offset performance and gain in the analog domain allows you to achieve a better signal-to-noise ratio and dynamic range use. Perform all analog adjustments prior to any digital adjustments.  Analog gain ( command) is multiplied by the analog signal to increase the signal strength before the A/D conversion (and before noise is added to the signal).

  • Page 38: Analog Gain And Analog Offset

    Piranha Color Camera  CCF: calibrate FPN  CCP: calibrate PRNU  CPA: calibrate analog gain (SAG) and PRNU PRNU calibration includes the FPN whether it is enabled or not (as they are linked). If you do not want the PRNU calibration to include the effect of FPN then it should be zeroed first using the RPC command.
  • Page 39 Piranha Color Camera Algorithm One 10% Above Target Before Calibration 2 = This algorithm adjusts analog gain so that the average pixel value in tap’s ROI is equal to the specified target value. Algorithm Two Mean Target Before Calibration 3 = This algorithm adjusts digital gain so that the average pixel value in tap’s ROI is equal to the specified target.
  • Page 40 Piranha Color Camera Algorithm Four Peak Target Before Calibration Tap value. Use 0 for all taps. Color selection limits the taps that may be selected by this command. See scl for further information. Calculation target value in a range from 1024 to 4055DN (12 bit LSB). Notes: Analog gain calibration requires constant light on a clean, white reference.

  • Page 41: Flat Field Correction

    Piranha Color Camera Example: sao 2 35 Related Commands: 3.15 Flat Field Correction Flat Field Correction Overview This camera has the ability to calculate correction coefficients in order to remove non- uniformity in the image. This video correction operates on a pixel-by-pixel basis and Note: If your implements a two point correction for each pixel.
  • Page 42 Piranha Color Camera Flat Field Correction Restrictions It is important to do the FPN correction first. Results of the FPN correction are used in the PRNU procedure. We recommend that you repeat the correction when a temperature change greater than 10°C occurs or if you change the analog gain, integration time, line rate, or SRM.
  • Page 43 Piranha Color Camera Set up the camera operating environment (i.e. line rate, exposure, offset, gain, etc.) Digital offset and digital system gain, and background subtract and add values should be set to zero ( ssb 0 0sdo 0 0ssg 0 0sab 0 0 Set the calibration sample size using the command css.
  • Page 44 Piranha Color Camera Related Commands: ccp, wfc Example: Setting a Pixel’s FPN Coefficient Purpose: Sets an individual pixel’s FPN coefficient. Syntax sfc x i Syntax Elements: The pixel number from 1 to sensor pixel count. Coefficient value in a range from 0 to 4095 (12 bit LSB). Notes: Before sending this command, use the scl command to select the color you want to adjust.
  • Page 45 Piranha Color Camera value as shown below: Target PRNU Coefficient = (AVG Pixel Value ) - (FPN + value) The calculation is performed for all sensor pixels but warnings are only applied to pixels in the region of interest. This algorithm is useful for achieving uniform output across multiple cameras.
  • Page 46 Piranha Color Camera Notes:  Before sending this command, use the scl command to select the color or colors you want to adjust. This allows you to limit the calibration to a single color.  Perform all analog adjustments before calculating PRNU.

  • Page 47: Pixel Count

    Piranha Color Camera The first pixel of the range must be less than the last. Example: spr 4001 4096 0 Returning Calibration Results and Errors Returning All Pixel Coefficients Purpose: Returns all the current pixel coefficients in the order FPN, PRNU, FPN, PRNU…...

  • Page 48: Digital Gain And Background Subtract

    Piranha Color Camera 0 = PRNU coefficients disabled 1 = PRNU coefficients enabled Example: epc 0 1 3.16 Digital Gain and Background Subtract Setting Digital Offset Purpose: Sets the digital offset. Digital offset is set to zero when you perform FPN correction (ccf command). If you are unable to perform FPN correction, you can partially remove FPN by adjusting the digital offset.

  • Page 49: Look-Up Tables

    Piranha Color Camera Setting Digital System Gain Purpose: Improves signal output swing after a background subtract. When subtracting a digital value from the digital video signal, using the ssb command, the output can no longer reach its maximum. Use this command to correct for this where: max output value ssg value = max output value - ssb value...
  • Page 50 Piranha Color Camera Calibrate Input LUT Purpose: Calibrates the current input look-up table for correcting non- linearity in the analog chain (CCD sense node and analog-to- digital conversion). Syntax: Syntax Elements: Notes: This command calibrates all taps within the ROI for current color (RBG does all).

  • Page 51: Saving, Loading And Restoring Settings

    Piranha Color Camera 3.18 Saving, Loading and Restoring Settings Saving and Restoring Settings Figure 8: Saving and Restoring Overview Current Settings    PRNU  Factory User User User User Settings Settings Settings    Settings  Settings ...
  • Page 52 Piranha Color Camera  To write and load the FPN coefficients, use the wfc and lfc commands, respectively.  To write and load the PRNU coefficients, use the wpc and lfc commands, respectively.  Before issuing the user setting commands, select the set you wish to write using the ssn command: Sets 1 to 4 are user sets.
  • Page 53 Piranha Color Camera Related Commands: Write Input LUT Purpose: Saves current values of input LUT that are in FPGA SDRAM to Flash memory or a PC file. Syntax: Syntax Elements: Example: Notes: Before issuing this command, select the set you wish to write with the SSN command: 0 = Factory set 1 to 4 = User sets...
  • Page 54 Piranha Color Camera The LUT values are two’s complement signed integers from - 256 to +255 e.g. 7 = 11 = [0000][0000][0000][0111] = 0-1100 = [1111][1111][1111][0100] See WFC for a description of the CRC algorithm. Load Input LUT Purpose: Load previously stored LUT for all taps from non-volatile memory to FPGA SDRAM.
  • Page 55 Piranha Color Camera e.g. PC-30-02k80 would have: 2048 words of red + 2048 words of green + 2048 words of blue + 32 unused bytes + 2 byte CRC of the above 2 byte FPN = [IIII][IIII][IIII][FFFF] I – Integer portion {0-4095} F –...
  • Page 56 Piranha Color Camera unsigned int sum = 0; while(count--) sum = CRC_table16[(sum >> 8) ^ *ptr] ^ (sum << 8); ptr++; return sum; Load FPN Coefficients Purpose: Loads previously stored FPN pixel coefficients from non- volatile memory to FPGA SDRAM. Syntax: Syntax Elements: Example:...

  • Page 57: Diagnostics

    Piranha Color Camera 2 byte CRC-16 of previous bytes e.g. PC-30-02k80 would have 2048 words of red + 2048 words of green + 2048 words of blue + 32 unused bytes + 2 byte CRC of the above 2 byte PRNU is an unsigned integer from 0 to 61,438 This value will be converted to the PRNU coefficient as follows: PRNU = 1 + value / 4096...

  • Page 58: Setting Thresholds

    Piranha Color Camera Syntax Elements: Disable end-of-line sequence Enable end-of-line sequence, LVAL is not high for end-of-line statistics. LVAL high for video and end-of-line statistics Notes: Example: els 1 Table 5: End-of-Line Sequence Description Location Value Description By ensuring these values consistently toggle between AA and 55 , you can...
  • Page 59 Piranha Color Camera outputs using the scl command set to rgb to the desired white value, and then change each color back individually. LVAL is not high during the end-of-line statistics. Related Commands: , scl Example: sut 1024 Setting a Lower Threshold Purpose: Sets the lower threshold limit to report in the end-of-line sequence.

  • Page 60: Returning Video Information

    Piranha Color Camera PC-30-04K80 Returning Video Information The camera’s microcontroller has the ability to read video data. This functionality can be used to verify camera operation and to perform basic testing without having to connect the camera to a frame grabber. This information is also used for collecting line statistics for calibrating the camera.

  • Page 61: Temperature Measurement

    Piranha Color Camera Returning the Average of Multiple Lines of Video Purpose: Returns the average for multiple lines of video data (without pixel coefficients applied). The number of lines to sample is set and adjusted by the css command. The camera displays the Min., Max., and Mean statistics for the pixels in the region of interest (the region of interest command is explained in section Setting a Region of Interest (ROI)).

  • Page 62: Voltage Measurement

    Piranha Color Camera Voltage Measurement The command vv displays the camera’s input voltage. Note that the voltage measurement feature of the camera provides only approximate results (typically within 10%). The measurement should not be used to set the applied voltage to the camera but only used as a test to isolate gross problems with the supply voltage.
  • Page 63 Piranha Color Camera Example: OK>gcp C A M E R A S E T T I N G S: Camera Model No.: PC-30-02K60-00-R Camera Serial No.: Microcode Version: 03-081-00166-06 CCI Version: 03-110-20014-01 FPGA Version: 03-056-20031-04 UART Baud Rate: 115200 Set Number, Current: Set Number, Last Settings: Set Number, Last LUT: Set Number, Last FPN:...
  • Page 64 Piranha Color Camera Color Correction Coefficients: White 0 1365 1365 1365 0 4096 Green 0 0 4096 Blue 0 0 4096 Input LUT: FPN Coefficients: PRNU Coefficients: Analog Gain [dB]: 10.0 10.0 10.0 10.0 Green 10.0 10.0 10.0 10.0 Blue 10.0 10.0 Analog Reference Gain [dB]: 0.0 0.0 0.0 0.0 Green 0.0 0.0 0.0 0.0...
  • Page 65 Piranha Color Camera Syntax Parameters Description get css Returns the number of line samples averaged for pixel coefficient calculations or for output of gla command. get dil t a a Displays LUT values. t = Tap dependent on scl, 0 for all. a1 = Start LUT address a2 = Stop LUT address, a1 <...
  • Page 66 Piranha Color Camera Syntax Parameters Description get sao Returns the analog offset for the tap indicated. t = 0 for all taps or 1 to 4 for individual tap selection. get sbr Returns the speed of camera serial communication port. get scb Returns cable parameter.
  • Page 67 Piranha Color Camera Syntax Parameters Description in internal exposure modes. get ssg Returns the current digital gain setting. t = tap selection, either 1 to 4 depending on camera model, or 0 for all taps get ssn Returns current set number. get sut Returns the current upper threshold value.
  • Page 68 Piranha Color Camera...

  • Page 69: Optical And Mechanical Considerations

    Piranha Color Camera Optical and Mechanical Considerations 4.1 Mechanical Interface Figure 9: Piranha Color Camera Mechanical Dimensions...

  • Page 70: Lens Mounts

    Piranha Color Camera 4.2 Lens Mounts Model Number Lens Mount Options All models M72 x 0.75, M42x1 and F-mount.

  • Page 71: Optical Interface

    Piranha Color Camera 4.3 Optical Interface Illumination The amount and wavelengths of light required to capture useful images depend on the particular application. Factors include the nature, speed, and spectral characteristics of objects being imaged, exposure times, light source characteristics, environmental and acquisition system specifics, and more.

  • Page 72: Magnification And Resolution

    Piranha Color Camera Figure 10: Primary Points in a Lens System SECOND PRINCIPAL POINT LIGHT RAYS FROM LEFT SECOND FOCAL POINT OBJECT FIRST PRINCIPAL HEIGHT (h) POINT OPTICAL AXIS BACK FOCAL LENGTH. OBJECT DISTANCE (OD) OBJECT SIDE IMAGE SIDE Magnification and Resolution The magnification of a lens is the ratio of the image size to the object size: m = h ' h where m is the magnification, h’...

  • Page 73: Ccd Handling Instructions

    Piranha Color Camera CCD Handling Instructions 5.1 Electrostatic Discharge and the CCD Sensor Cameras contain charge-coupled device (CCD) image sensors, which are metal oxide semiconductor (MOS) devices and are susceptible to damage from electrostatic discharge (ESD). Electrostatic charge introduced to the sensor window surface can induce charge buildup on the underside of the window that cannot be readily dissipated by the dry nitrogen gas in the sensor package cavity.

  • Page 74: Cleaning The Sensor Window

    Piranha Color Camera Scratches diffract incident illumination. When exposed to uniform illumination, a sensor with a scratched window will normally have brighter pixels adjacent to darker pixels. The location of these pixels changes with the angle of illumination. 5.3 Cleaning the Sensor Window Use compressed air to blow off loose particles.

  • Page 75: Troubleshooting

    Piranha Color Camera Troubleshooting 6.1 Common Issues The information in this chapter can help you solve problems that may occur during the setup of your camera. Remember that the camera is part of the entire acquisition system. You may have to troubleshoot any or all of the following: ...

  • Page 76: Specific Solutions

    Piranha Color Camera 6.2 Specific Solutions Camera Does Not Respond to Serial Commands Verify that the baud rate of the communications software matches that of the camera. The camera always powers up at 9,600 bps. Flashing Red LED on Power-up This indicates a serious error.

  • Page 77: Product Support

    If there is a problem with your camera, collect the following data about your application and situation and call your Teledyne DALSA representative. Note: You may also want to photocopy this page to fax to Teledyne DALSA. Customer name Organization name...
  • Page 78 Piranha Color Camera...

  • Page 79: Appendix A: Ascii Command Reference

    Piranha Color Camera Appendix A: ASCII Command Reference The following table lists and describes all of the camera’s available ASCII commands. Table 7: Command Quick Reference Mnemonic Syntax Parameters Description Parameters: correction calibrate fpn Performs FPN calibration and t = tap id eliminates FPN noise by subtracting i = integer value away individual pixel dark current.
  • Page 80 Piranha Color Camera Mnemonic Syntax Parameters Description 1 = The algorithm first adjusts each tap’s analog gain so that 8-13% of pixels within a tap are above the value specified in the target value parameter. PRNU calibration then occurs using the peak pixel in the region of interest.
  • Page 81 Piranha Color Camera Mnemonic Syntax Parameters Description a1 ≤ a2 display pixel coeffs x1 x2 Displays the pixel coefficients in the order FPN, PRNU, FPN, PRNU, … x1 = Pixel start number x2= Pixel end number in a range from 1 to n. Where n = 2048 or 4096.
  • Page 82 Piranha Color Camera Mnemonic Syntax Parameters Description x1 = Pixel start number x2 = Pixel end number in a range from 1 to n. Where n = 2048 or 4096. get line average x1 x2 Read the average of line samples. x1 = Pixel start number x2 = Pixel end number in a range from 1 to n.
  • Page 83 Piranha Color Camera Mnemonic Syntax Parameters Description set analog gain Sets the analog gain in dB. t = tap selection, either 1 or 4 depending on the color selected, or 0 for all taps. f= gain value specified from –10 to +10 dB set analog offset Sets the analog offset.
  • Page 84 Piranha Color Camera Mnemonic Syntax Parameters Description 6 = External SYNC, internal exposure time set using SET command 7 = Internal line rate, maximum exposure time. Factory setting. set exposure time Sets the exposure time. Refer to the camera help screen (h command) for allowable range.
  • Page 85 Piranha Color Camera Mnemonic Syntax Parameters Description rate 1 = Always clears dark; reduces the maximum line rate 2 = Off set spatial alignment Set line delay between colors. 0 to 6. set subtract background Subtract this value from the output signal.

  • Page 86: A5 Error Handling

    Piranha Color Camera Mnemonic Syntax Parameters Description camera. write FPN coefficients Write current FPN coefficients to non- volatile memory set previously using the ssn command. write input LUT Write current LUT’s to non-volatile memory set previously using the ssn command. write PRNU coeffs Write current PRNU coefficients to non-volatile memory set previously...
  • Page 87 Piranha Color Camera Message Description Error 02: Command is not valid (or not available at the current access level). Unrecognized command> Error 03: Incorrect Too many or too few parameters. number of parameters> Error 04: Incorrect This error is returned for: parameter value>...
  • Page 88 Piranha Color Camera...

  • Page 89: Appendix B: Blue Correction Command

    The 80 mega-pixel camera models (PC-30-02K80 and PC-30-04K80) show an artifact at the mid-point of the blue taps. This blue correction command enables replacing these pixels with interpolated values. Affected pixels: Model 1st Blue Tap 2nd Blue Tap PC-30-02K80-00-R 1515 PC-30-04K80-00-R 1046 3051 The bilinear interpolation equation: Blue:...
  • Page 90 Piranha Color Camera...

  • Page 91: Appendix C: Emc Declaration Of Conformity

    This product complies with the requirements of the Low Voltage Directive 73/23/EEC and the EMC Directive 89/336/EEC and carries the CE mark accordingly. Place of Issue Waterloo, ON, CANADA Date of Issue December 2007 Name and Signature of Hank Helmond authorized person Quality Manager, Teledyne DALSA Corp.
  • Page 92 Piranha Color Camera...

  • Page 93: Appendix D: Revision History

    -Sensor responsivity graphs revised, Section 1.3. -SOT 30 command added to camera. Base and medium configuration tables updated on pages 19 and 21. "Preliminary" designation removed. Mechanical drawing revised showing sensor alignment measured from tooling holes in the front plate. Teledyne DALSA logo added.
  • Page 94 Piranha Color Camera Revision Change Description Number Blue correction algorithm revised, Appendix B.

  • Page 95: Index

    Piranha Color Camera Index analog electrical gain, 38, 40 specifications, 6, 8 processing, 37 EMC Declaration of applications, 5 Conformity, 91 average horizontal enable blue correction, 89 setting, 35 end-of-line sequence, 57 error messages, 86 exposure mode overview, 30 setting, 29 background subtract, 48 exposure time blue correction command, 89...
  • Page 96 Piranha Color Camera optical, 6, 8, 71 rebooting, 22 resolution, 5, 8 restoring LED, 14 factory settings, 51 lens revision history, 93 modeling, 71 roi. See Region of Interest light calibration. See flat field correction light sources, 71 line delay between colors setting, 35 sensor, 11 line dropout, 76...
