2-5. Stripper
Stripper (Peeler) helps you separate the printed label from the liner (backing paper). Only when the
separated label has been taken away, will another label be printed automatically.
1. Open the front cover and back cover.
2. Press the printer locks (part 12) to loosen the printhead assembly, and turn over the head assembly.
3. Press the stripper arm down to "on" position (see figure 2.5.1b)
4. Peel away the labels from the first 4 inches.
5. Load the liner paper through the gap sensor and overstride the Rubber roller about 2 inches. Adjust the
label guide to fit the liner paper size.
6. Insert the front edge of the liner paper between the tear bar and the stripper roller (see figure 2.5.1b).
7. Power on the printer. The LED turns red and beeps 4 times.
8. Press the paper feed button a few times until the liner paper appears under the stripper roller.
9. Press the stripper arm down to "off" position. Hold the labels while pulling at the liner so it becomes tight,
then adjust the edge of the first label is under the gap sensor.
10. Press the stripper arm down to "on" position
11. Close the printhead assembly. The LED will be green.
12. Refer to the figure 2.5.3 to setup the strip bracket bar to the right position.
13. Refer to the figure 2.5.4, follow the 3-arrow position and direction to gently insert the strip bracket bar
until hear the click sound (figure 2.5.4 is a part of zoom out to show the strip bracket bar correct
position).
14. Refer to the figure 2.5.5 to setup the strip sensor (press the top area and lift from the bottom).

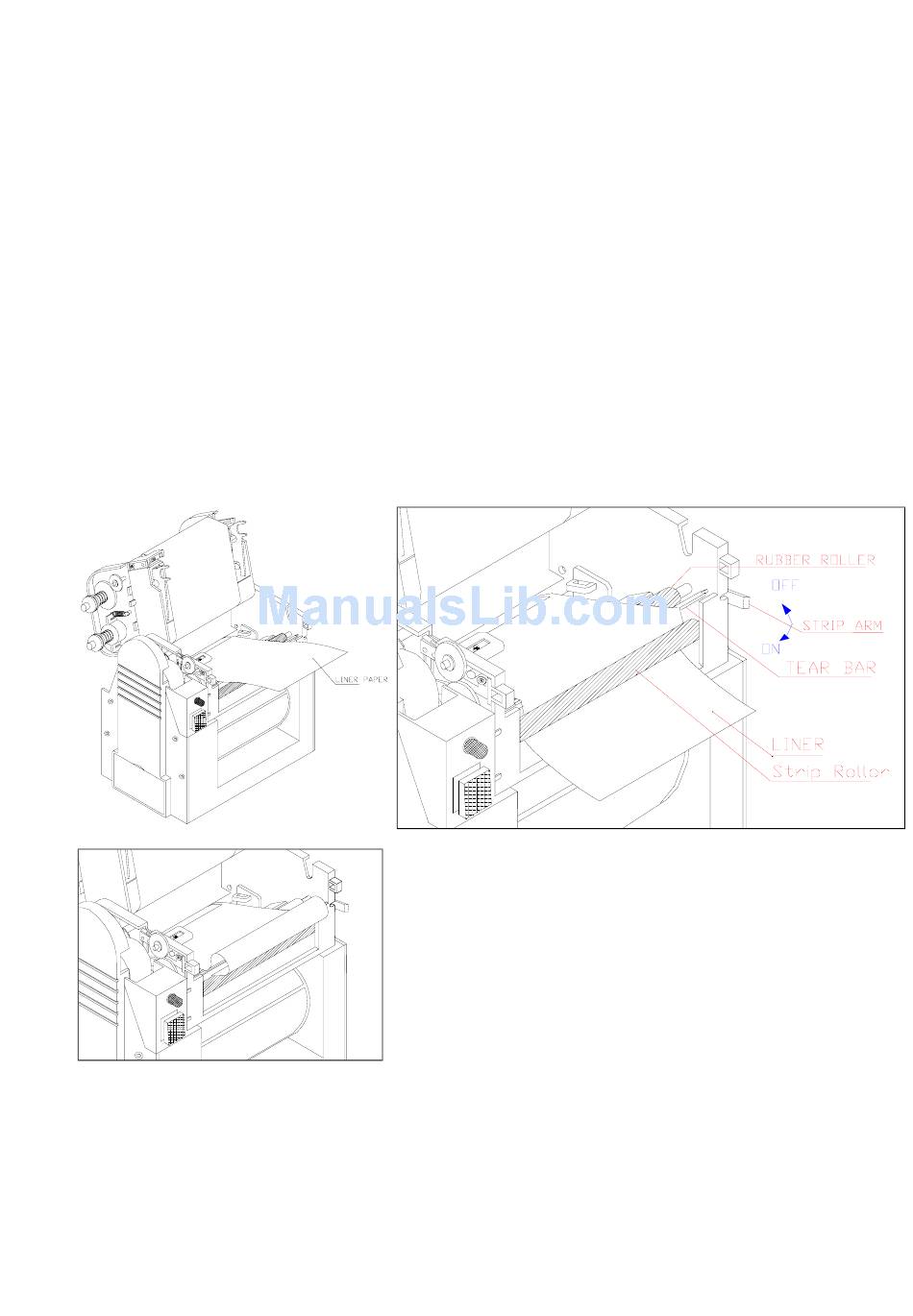

Fig. 2.5.1a
