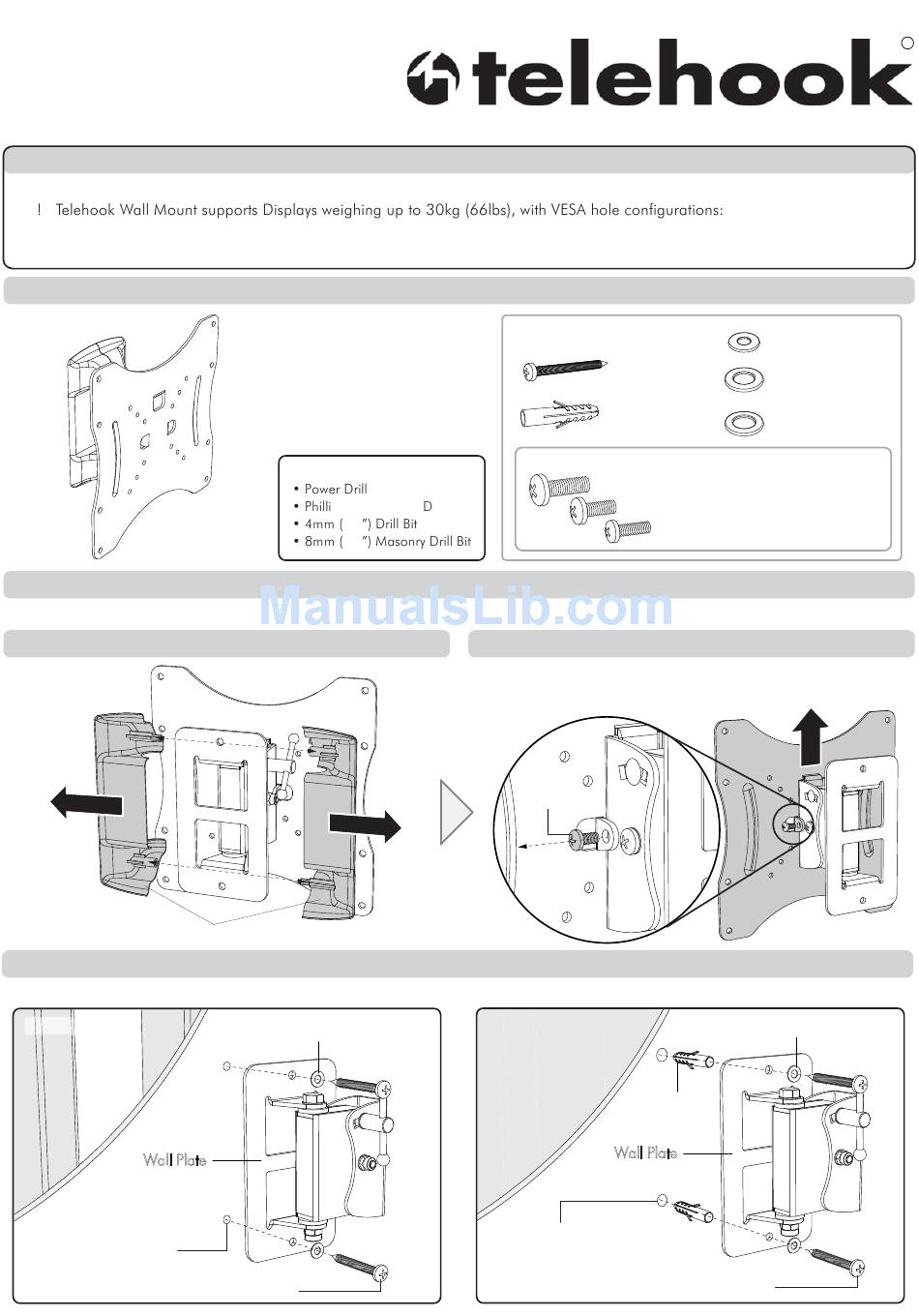

Atdec telehook TH-2250-VTP Installation Instructions

TH-2250-VTP
IMPORTANT INFORMATION
! IMPORTANT - Install Telehook Wall Mount as per Installation Instructions.
50x50mm (2"x2"), 75x75mm (3"x3"),100x100mm (4"x4"), 200x100mm (8"x4"), 200x200mm (8"x8").
! The Manufacturer accepts no responsibility for incorrect installation.
Component Checklist
Step 1. Component Checklist
Check you have received all parts against the Component Checklist above.
Step 2. Remove the Wall Bracket Cover
PULL
Step 4. Fix the Wall Bracket to the Wall
Using the Wall Plate as a drilling template, choose from one of the following Mounting options, Timber Stud OR Masonry Wall.
Timber Stud
Wall Plate
Drill two holes 50mm
deep with a 4mm
drill bit.
Wall Mount Screw (x2)
TH-2250-VTP
(fully assembled)
TOOLS REQUIRED:
ps Head Screw river
3 /
16
5 /
16
PULL
Cover
M6 Washer (x2)

Installation Instructions

Flat Screen Wall Mount | Tilt
Hardware
Mounting Fasteners
Step 3. Remove the Mounting Plate
Remove the two Locking Screws,
on both left and right sides.
Locking
Screw (x2)
Masonry Wall
Drill two holes 50mm
deep with a 8mm
Masonry drill bit.
M4 Washer (x4)
Wall Mount
Screw (x2) M5 Washer (x4)
Nylon
Anchor (x2) M6 Washer (x4)
M6x8mm / M6x12mm (x4 each)
M5x8mm / M5x12mm (x4 each)
M4x8mm / M4x12mm (x4 each)
M6 Washer (x2)
Nylon Anchor
(x2)
Wall Plate
Wall Mount Screw (x2)
70
LIFT
