Atdec AD-WF-5040 Installation Manual

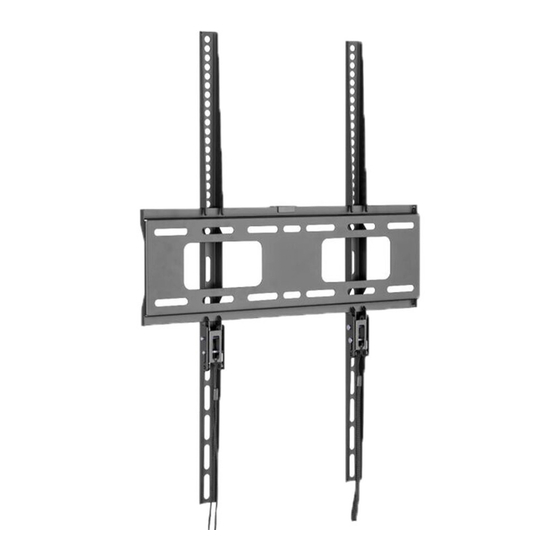

Fixed Wall Mount 5040

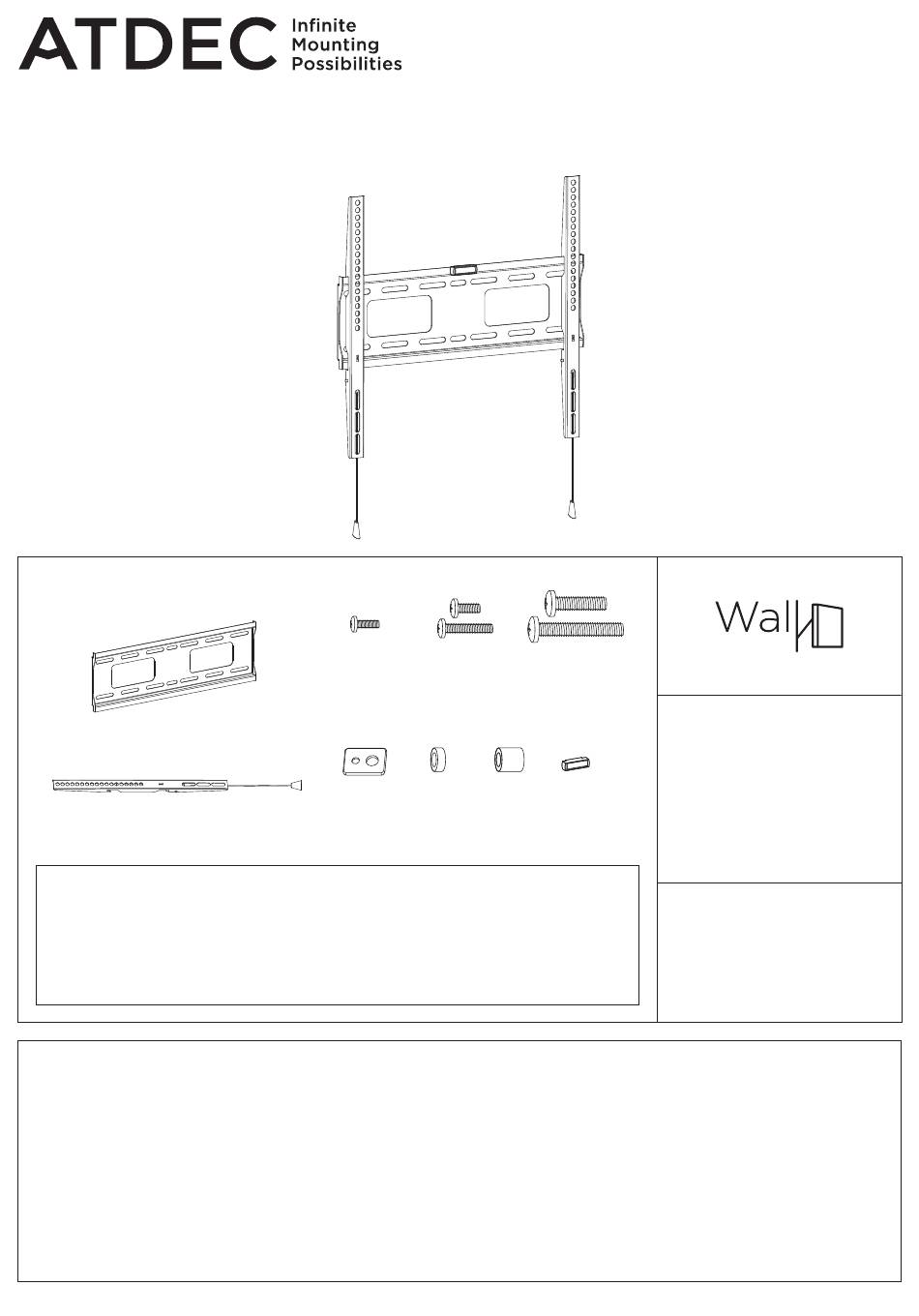

COMPONENT CHECKLIST
H
Wall Plate
I
Display Bracket (x2)
NOTE:
! Wall Plate Mounting Fasteners are NOT supplied with Wall Mounts. Professional
installer to ensure correct Mounting Fastener type, location & quantity to suit
structure where Wall Mount is installed.
ALWAYS use a washer between the chosen fastener and the wall plate.
!
! Mounting fasteners to be used as per manufacturers instructions, including
minimum engagement to achieve necessary performance.
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! The manufacturer accepts no responsibility for incorrect installation.
! Failure to mount this product correctly may cause serious injury/death during or following installation.
! This product is not suitable for outdoor use.
! Do not use this product for mobile applications.
! This product supports a maximum load of 50kg (110lb).
! Wall Plate only achieves maximum weight rating when appropriately fastened to a wall of adequate structural capacity.
! Professional installer to ensure adequate structural capacity of wall (including appropriate safety factor) to support total
weight of all equipment being mounted.
! Drilling into electrical wires can cause death - use appropriate equipment and caution when drilling holes in walls to avoid
electrical cables, water pipes and gas pipes. Do not drill into structures unless you have established it's safe to do so.
! Suits displays with mounting hole patterns from 75mm to 420mm wide by 70mm to 405mm high.
A B
M5x14 (x4) M6x14 (x4)
Screw M6x30 (x4)
Screw
D E
Multi Short Long
Washer Spacer Spacer
(x4) (x8) (x8)
H
G
XX (x4)
XX (x4)
Installation Guide
C
M8x30 (x4)
M8x50 (x4)
Screw
REQUIRED TOOLS
• Phillips head screwdriver
• Power drill
• Suitable drill bit
F G
• Driver bit for selected
Spirit
Level
(x1)
• Stud finder
• Spirit level
WEIGHT RANGE
0 - 50kg
(0 - 110lb)
I
XX (x4)
AD-WF-5040
wall fasteners
AD-WF-5060 Page 1 of 2
