Atdec Telehook TH-3070-CTW User Manual

Flat screen ceiling mount

Fits most displays from 32" to 65"

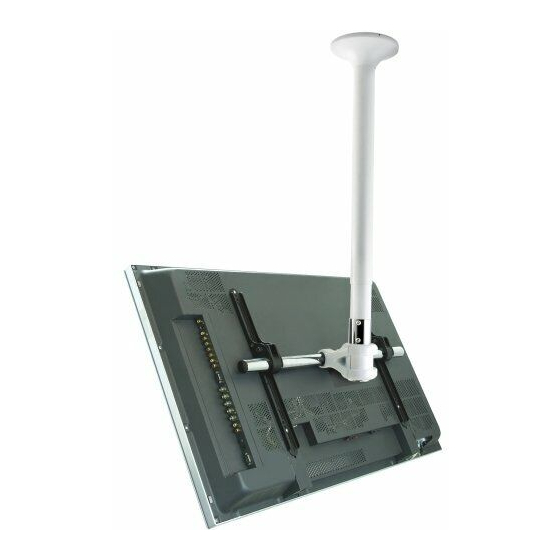

The TH-3070-CTW is a state of the art ceiling mount designed to achieve maximum
visibility to optimise the power of your display. The telescopic pole design allows
you to create a solution that meets your specific length requirements. The display can
be fully rotated 360 degrees around the pole and tilted by up to 5 degrees up and
25 degrees down. Installation is quick and simple. Our "true" internal cable
management system guarantees an elegant finish that's easy to achieve by feeding
all the wiring through the main hanger pole without having to remove the data or
power plug. Featuring a white and polished chrome finish, simplicity and
sophistication all in one. This mount can also be easily upgraded to support back to
back dual displays.

Product key features:

Telescopic pole allows adjustable distance from ceiling to centre of display
Minimum 220mm (8.7")
Maximum 2 metres (78.75")
Horizontal adjustment of 5° either way from the horizontal plane for levelling of TV
o
360 display rotation around the pole
Adjustable tilt of 5° up and 25° down
Offers "true" internal cable management for soft wiring (cables are fed through the pole without the need to cut the cable plugs)
Can be easily converted into a dual display configuration (TH-3070-CTW-BB sold separately)
All mounting hardware included
Telescopic pole allows
adjustable distance
from ceiling
Display horizontal
adjustment of
° °
-5 /+5 degrees
360 display
rotation around
the pole

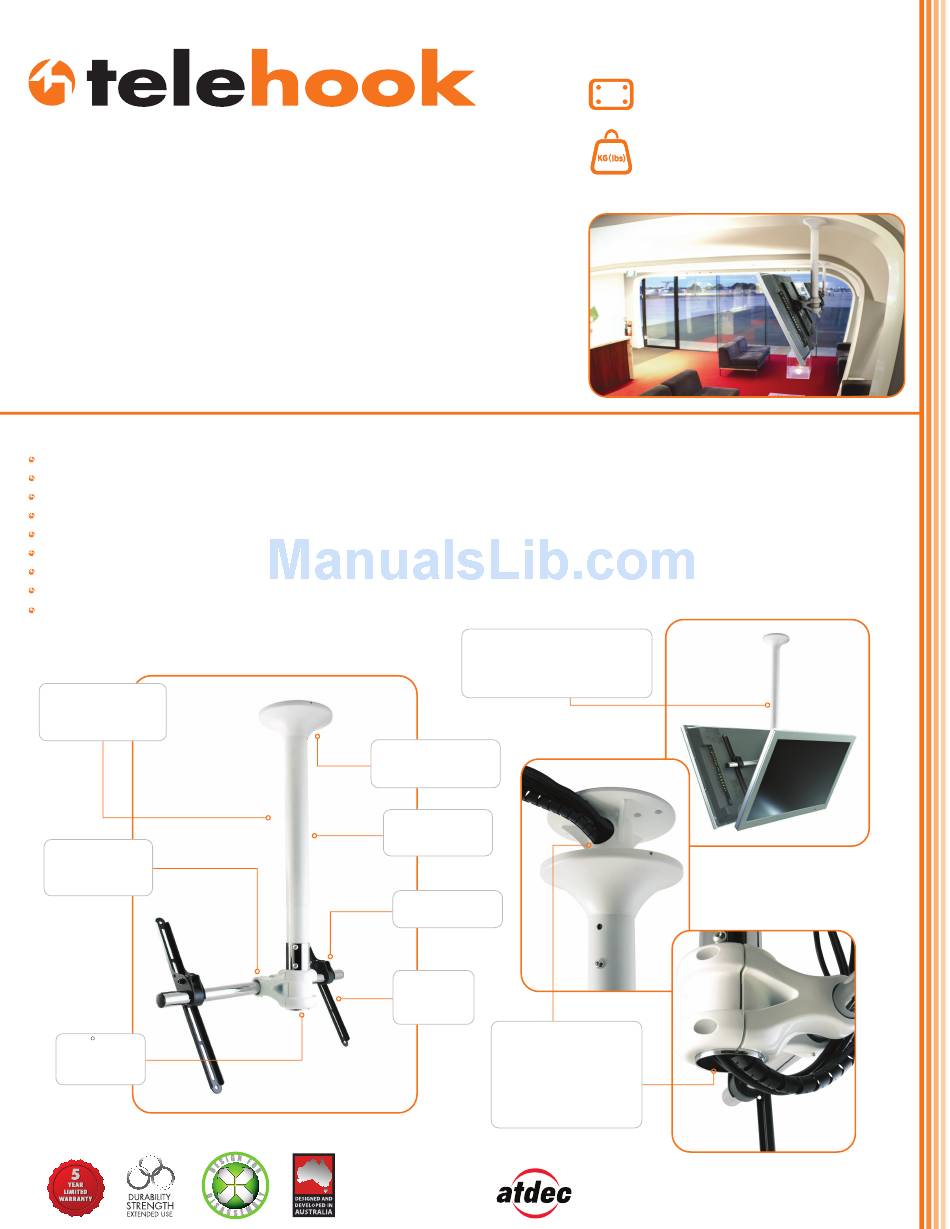

TH-3070-CTW
Can be easily converted into a
dual configuration (The telehook
TH-3070-CTW BB accessory sold
Ceiling plate cover for
complete professional
look
Durable white
powder coated
finish
Adjustable tilt of
° °
-5 /+25 degrees
Universal
mounting
hole pattern
"True" internal cable
management allows
feeding all cables through
the main pole (no need to
remove the data or power

Mounting hole pattern:

from 180mm to 685mm wide
from 100mm to 430mm high
Maximum weight carrying capacity:
91kg (200lbs) per display
separately)
plugs)
