Atdec TH-VWP-050 Installation Manual

TH Universal Video Wall Mount

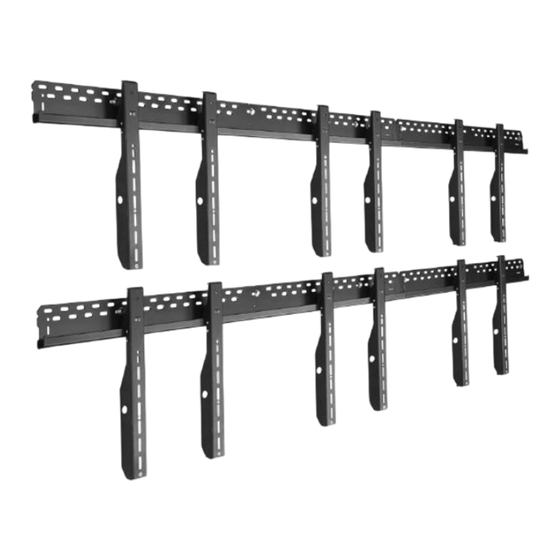

Illustrated Solution is a video wall assembled using TH-VW components.
The TH Universal Video Wall Mount is a modular system. Components can be configured
to accommodate different sizes, quantities, and orientations of displays.

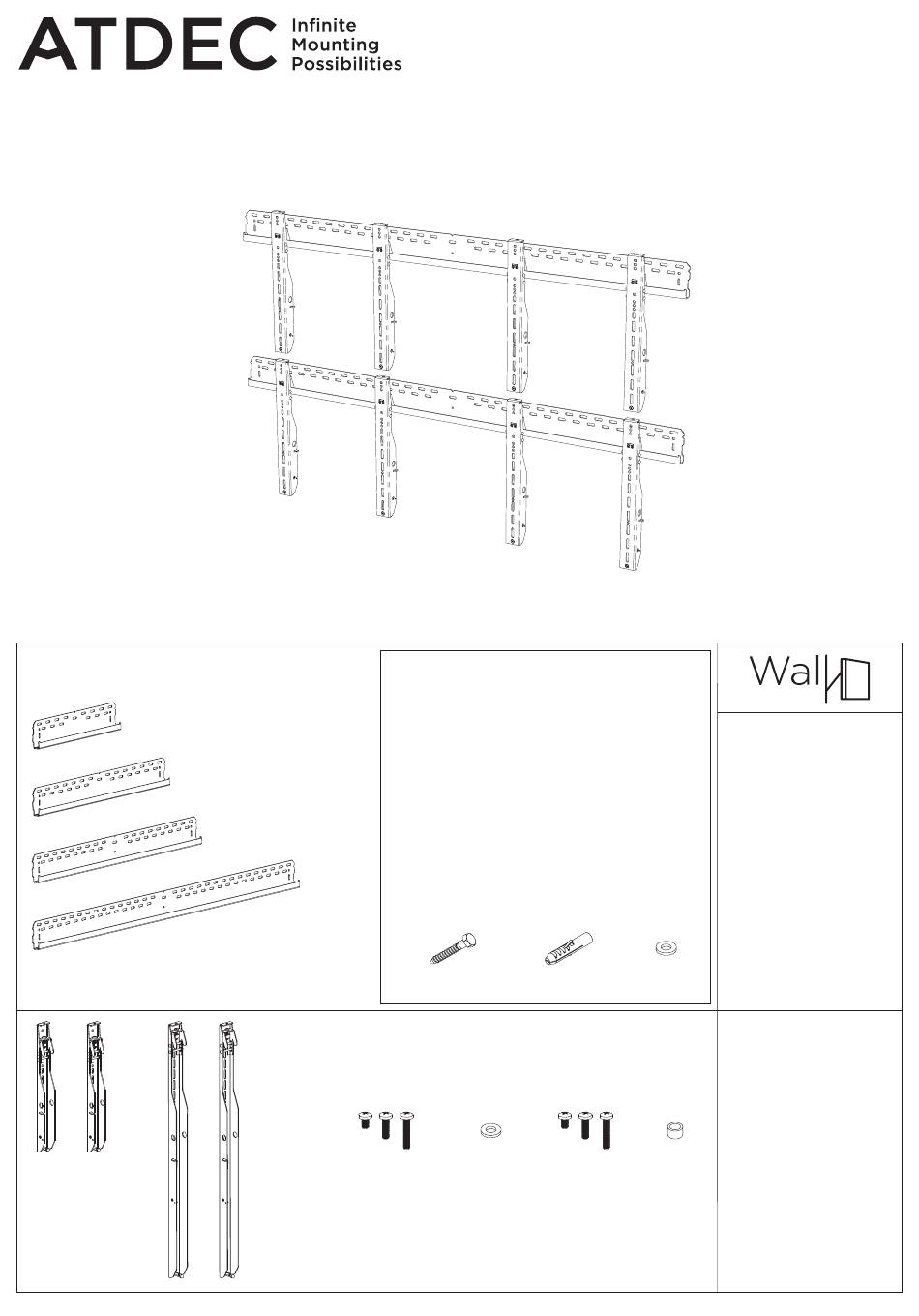

COMPONENT CHECKLIST
TH-VWP-050
Wall Plate 50cm (19-5/8")
Wall Plate 80cm (31-1/2")
E
TH-VWV
Bracket (x2)
A
B
TH-VWP-080
C
TH-VWP-100
Wall Plate 100cm (39-3/8")
D
TH-VWP-160
Wall Plate 160cm (63")
Bracket Hardware
(Supplied with TH-VWV and TH-VWVP)
F
TH-VWVP Phillip Head Screw
Bracket (x2) M6 x
16/30/45/60mm
(x4)
Note:
! Wall Plate mounting fasteners are NOT
supplied with Wall Plates
! Professional installer to ensure correct
mounting fastener type, location & quantity
to suit structure where Video Wall is
installed
! Wall plate to be fixed to wall with a
minimum of 3x appropriate load bearing
fasteners per Wall Plate and minimum of
2x appropriate load bearing fasteners per
Display
! Washers must be used when securing Wall
Plate/s
! Example of Wall Plate mounting fasteners:
8mm Coach Screw/ Nylon Anchor
DynaBolt /ChemSet
TM TM
G H
M6 Washer Security Screw
(x4)
16/30/50/65mm
Installation Guide
TH-VWP-050
TH-VWP-080
TH-VWP-100
TH-VWP-160
REQUIRED
TOOLS
• Power Drill
• Suitable Drill Bit
• Fasteners for Wall
• Driver for chosen
• Phillips Head
• Spirit Level
• Tape Measure
M8 Washer
• Stud finder
WEIGHT
RANGE
Per Wall Plate*
0 - 165kg
(0 - 363lb)
Per Bracket Pair
I J
0 - 165kg
Spacer
M8 x (x8)
(0 - 363lb)
(x4)
* Wall Plate only achieves
maximum weight rating
when appropriately fastened
to a wall of adequate
structural capacity
TH-VW Series Page 1 of 6
TH-VWV
TH-VWVP
Plate attachment
Wall Plate fasteners
Screwdriver
