Atdec AD-WM-9080 Installation Manual

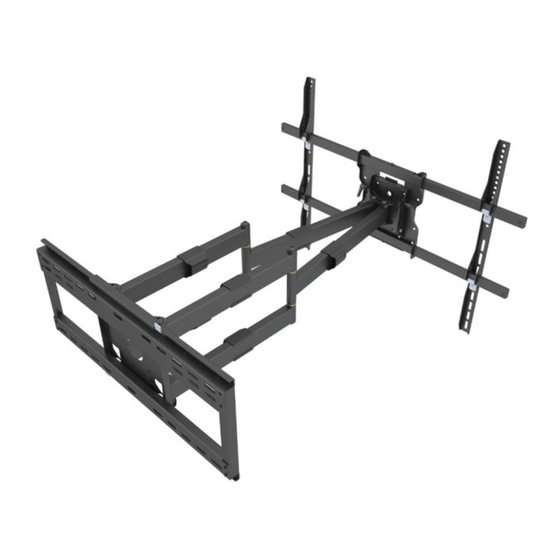

Full Motion Wall Mount 9080

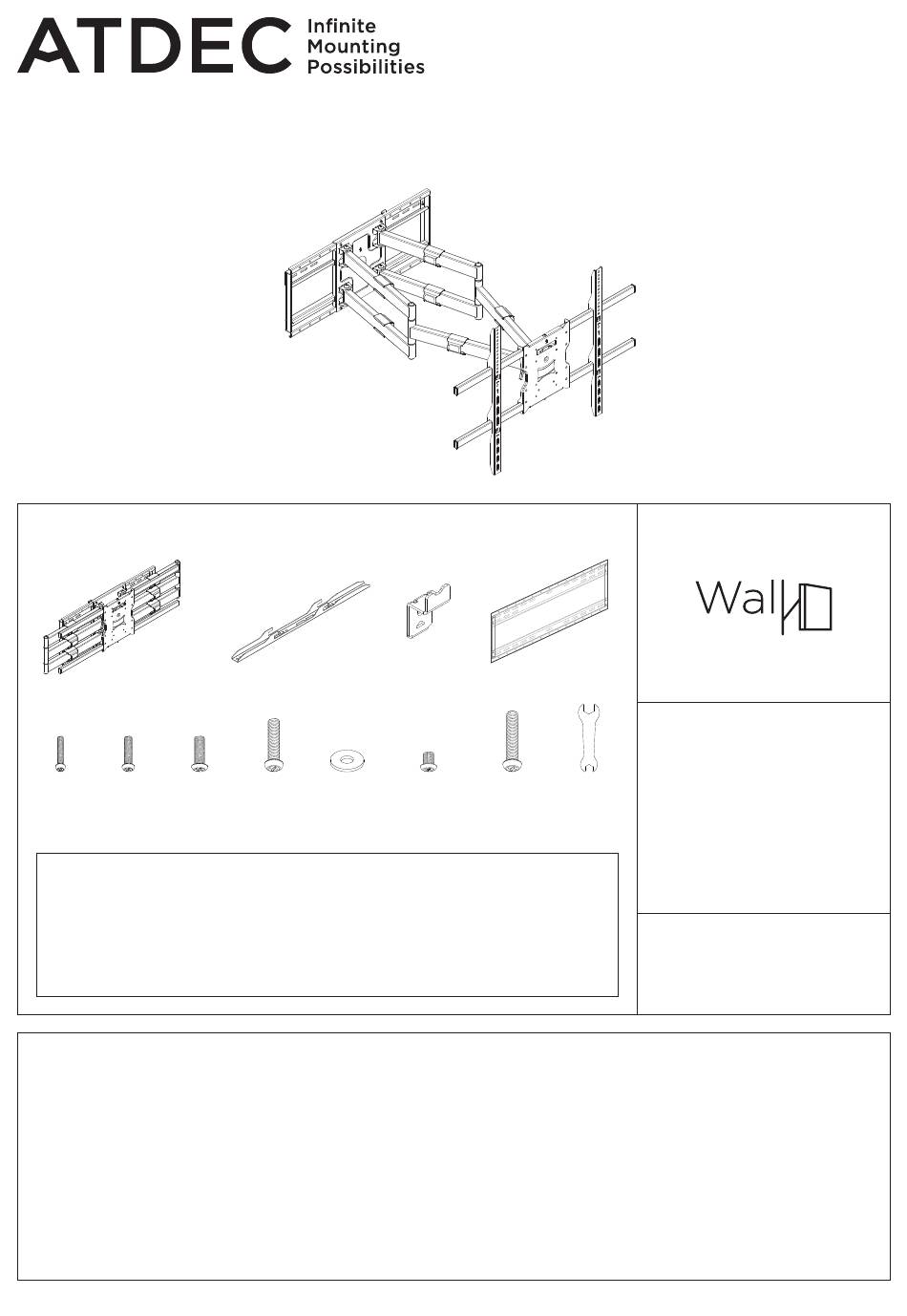

COMPONENT CHECKLIST
W
Full Motion Wall Mount
Assembly
A B
M4x16 M5x16 M6x16
Screw Screw Screw
(x4) (x4) (x4)
NOTE:
! Wall Plate Mounting Fasteners are NOT supplied with Wall Mounts.
Professional installer to ensure correct Mounting Fastener type, location &
quantity to suit structure where Wall Mount is installed.
ALWAYS use a washer between the chosen fastener and the wall plate.
!
! Mounting fasteners to be used as per manufacturers instructions, including
minimum engagement to achieve necessary performance.
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! The manufacturer accepts no responsibility for incorrect installation.
! Failure to mount this product correctly may cause serious injury/death during or following installation.
! This product is not suitable for outdoor use.
! Do not use this product for mobile applications.
! This product supports a maximum load of 90.7kg (200lb).
! Wall Plate only achieves maximum weight rating when appropriately fastened to a wall of adequate structural capacity.
! Professional installer to ensure adequate structural capacity of wall (including appropriate safety factor) to support total
weight of all equipment being mounted.
! Drilling into electrical wires can cause death - use appropriate equipment and caution when drilling holes in walls to avoid
electrical cables, water pipes and gas pipes. Do not drill into structures unless you have established it's safe to do so.
! Suits displays with mounting hole patterns from 100mm to 800mm wide by 100mm to 600mm high.
X
Display Bracket
(x2)
C D E
M8x25 Washer
Screw (x4)
(x4)
Y Z
Security Clip Drilling Template
(x4)
F G
M5x8 M8x45
Security Screw Screw
(x4) (x4)
Installation Guide
AD-WM-9080
REQUIRED TOOLS
• Stud finder
• Spirit level
H
• Power drill
Spanner
• Suitable drill bits
• Driver bit for selected
wall fasteners
• Phillips head screwdriver
• Socket wrench set
WEIGHT CAPACITY
0 - 90.7kg
(0 - 200lb)
AD-WM-9080 Page 1 of 4
