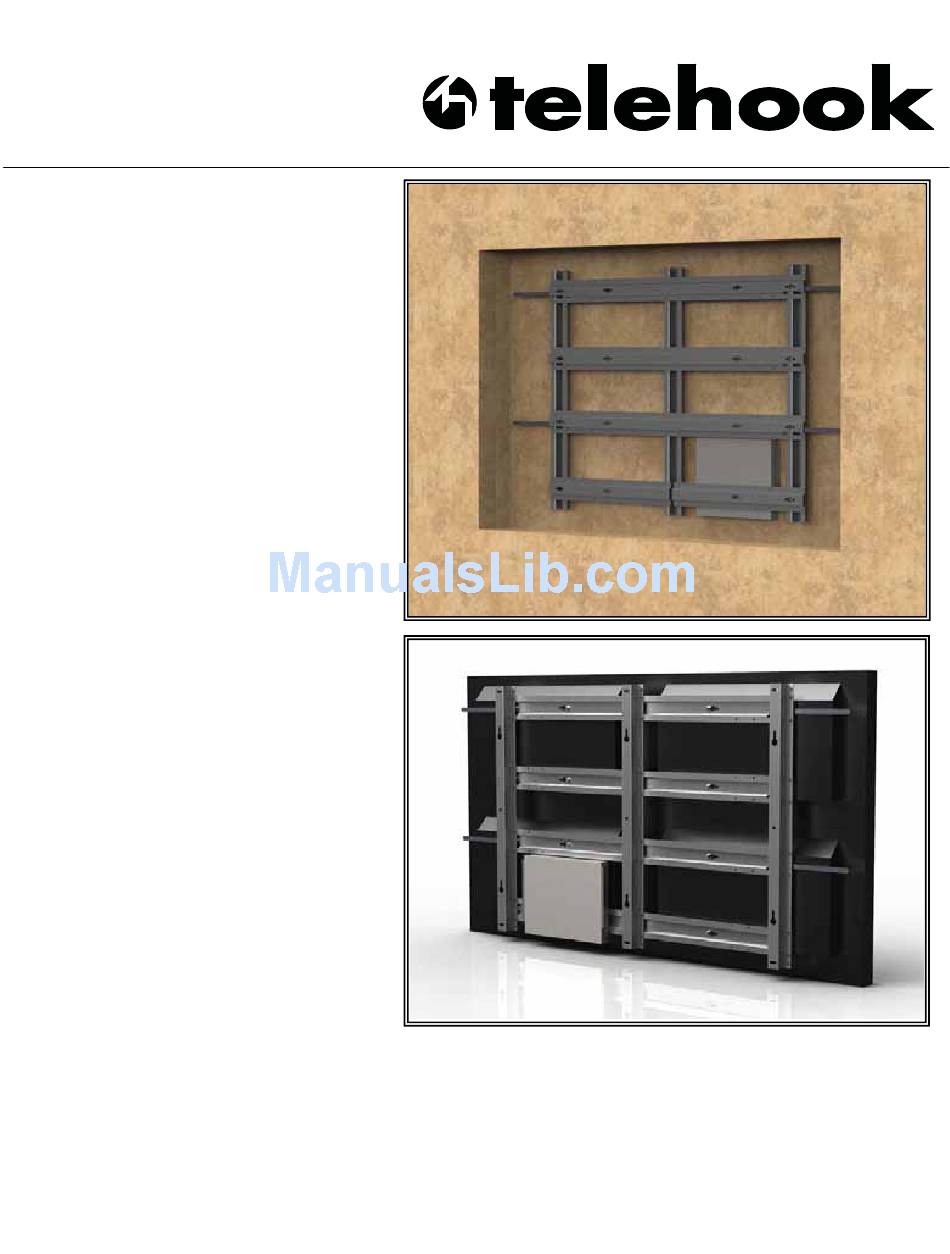

TH-VA-2X2-NEC X463
This display kit mounts the NEC X463UN
LCD monitor in a 2 wide by 2 deep landscape
configuration. The frame attaches to a wall and
receives the LCD monitors by way of four machined
fittings (per monitor) that thread into the monitor's
VESA holes. These fittings then insert into the frame's
channels. The monitor's fittings secure to the frame
with locking arms that provide an easy way to remove
the monitors for service. A removable panel provides
access for media players behind the frame.
Important: Installing video displays is a serious
endeavor that requires experienced professionals.
Improperly prepared walls and other structures as
well as the equipment being installed can result in
property damage, injury and/or liability to the
installing contractor. Do not proceed if any part of
the installation is in doubt.
Caution: Due to the wide variety of structures,
environments, materials and installation methods, the
installing contractor must exercise good judgment in
selecting the proper mounting area. The mounting
structure must be capable of supporting at least 5
times the load of the installed equipment. Consult local
building codes for further guidance.
Follow these instructions for the most efficient and
safest mounting results.
Package Contents:
1 pc
Frame w/ locking arms assembled
2 pcs
Media player mounting bracket
1 pc
Adjustment wrench
16 pcs M6 Threaded stand-off button (black)
9 pcs
Wood Screw Hanger (Adjustable Lag bolts)
9 pcs
Flat washer, 5/16
9 pcs
Hex nuts, 5/16-18
1 pc
Instruction sheet
Notes:
Hardware to mount frame to the wall are included.
Note:
The assembled frame weighs approximately 65 lb/29.5 Kg and requires just one installer. Two installers recommended for installing the
LCD monitors.
Installation Instructions
2 Wide x 2 Deep Video Wall Display (Rear View)
Video Wall 2x2
Rev.02-06/25/12
