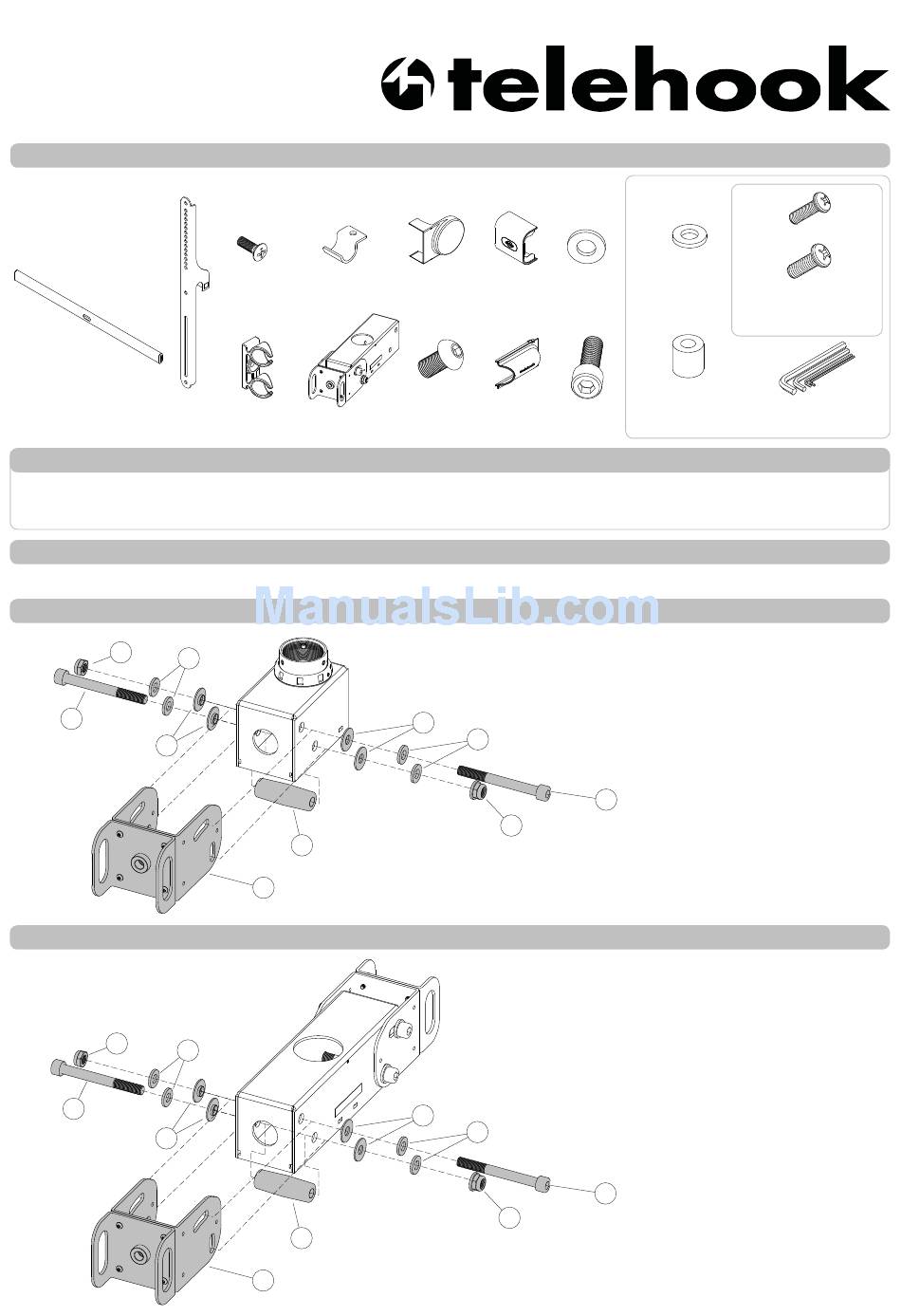

Atdec telehook TH-3070-CTL Installation Instructions

TH-3070-CT-B2B

Component Checklist

Horizontal Rail
Mounting
Bracket (x2)

IMPORTANT INFORMATION:

! IMPORTANT - Install Telehook 3070 Back to Back Accessory as per installation instruction.
! This product is to be installed in conjunction with TH-3070-CTL and TH-3070-CTS mounts only.
! The manufacturer accepts no responsibility for incorrect installation.

Step 1. Check Components

Check you have received against the component checklist and hardware above.

Step 2. Remove the clamp parts from Head Assembly of TH-3070-CTL/CTS

1
2
6

Step 3. Assemble the clamp parts to B2B Head Assembly

1
2
6

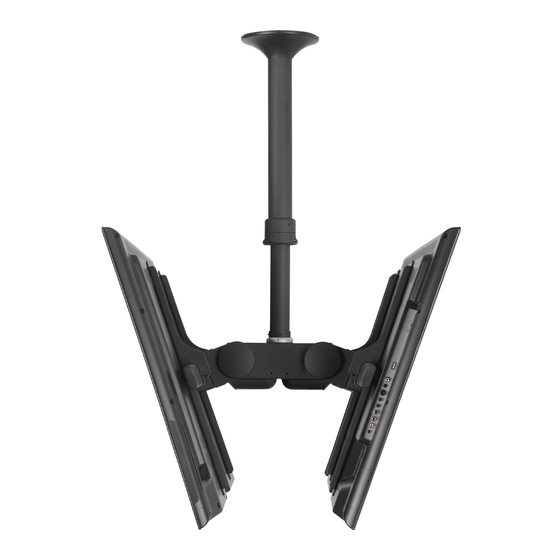

Back to Back Accessory for TH-3070-CTL & TH3070-CTS
M4x12mm Bracket Locking
Screw (x2) Plate (x2)
Cable
B2B Head
Clip (x2) Clamp Assembly
3
4
5
3
4
5

Installation Instructions

Tools Required:
• 17mm(0.7") Socket Wrench or Shifter
Clamp Cover
Clamp Cover
Middle
Side (x2)
M8x15mm Clamp Cover
Screw (x2) Bottom
A. Use the required 17mm Socket Wrench or Shifter to hold the nuts (item 1).
B. Use the supplied 8mm Allen Key to loosen the bolts (item 2).
C. Remove all the clamp parts items 1 to 6.
6
3
1
A. Insert the four washers (item 6) to the four holes.
B. Put the clamp (item 5) in place.
C. Put the spacer (item 4) in place.
D. Attach the bolts (item 2) and nuts (item 1) with washers (item 3).
E. Tighten using the supplied 8mm Allen Key paired with the required 17mm
Socket Wrench or Shifter.
6
3
1
HARDWARE
M8x16mm/30mm/50mm
M10 M6/M8 Washer
Washer (x4 each)
M6/M8
M10x30
Spacer (x4 each)
Screw
2
2
M6x16mm/30mm/45mm
Display Mounting
Screws (x4 each)
2mm/2.5mm/5mm
8mm Allen Key
